• Operate the joystick on the keyboard to move
the ULISSE COMPACT THERMAL and if necessary
operate the zoom to centre the flower on the
screen.
MASK 1
PTZ Motions Enabled
Iris Open → return
Fig. 55
• When the desired result is obtained press the Iris
Open.
MASK 1
PTZ Motions Enabled
Iris Open → return
Fig. 56
9.6.3.4 Masking menu (Edit Masks)
Once inside the Edit Masks menu it is possibile to set
the following parameters:
01. Mask Number: Allows you to choose the mask
on which to operate.
02. Enable Mask: Enables or disables the selected
mask.
03. Edit Mask: Allows the creation or editing of a
mask.

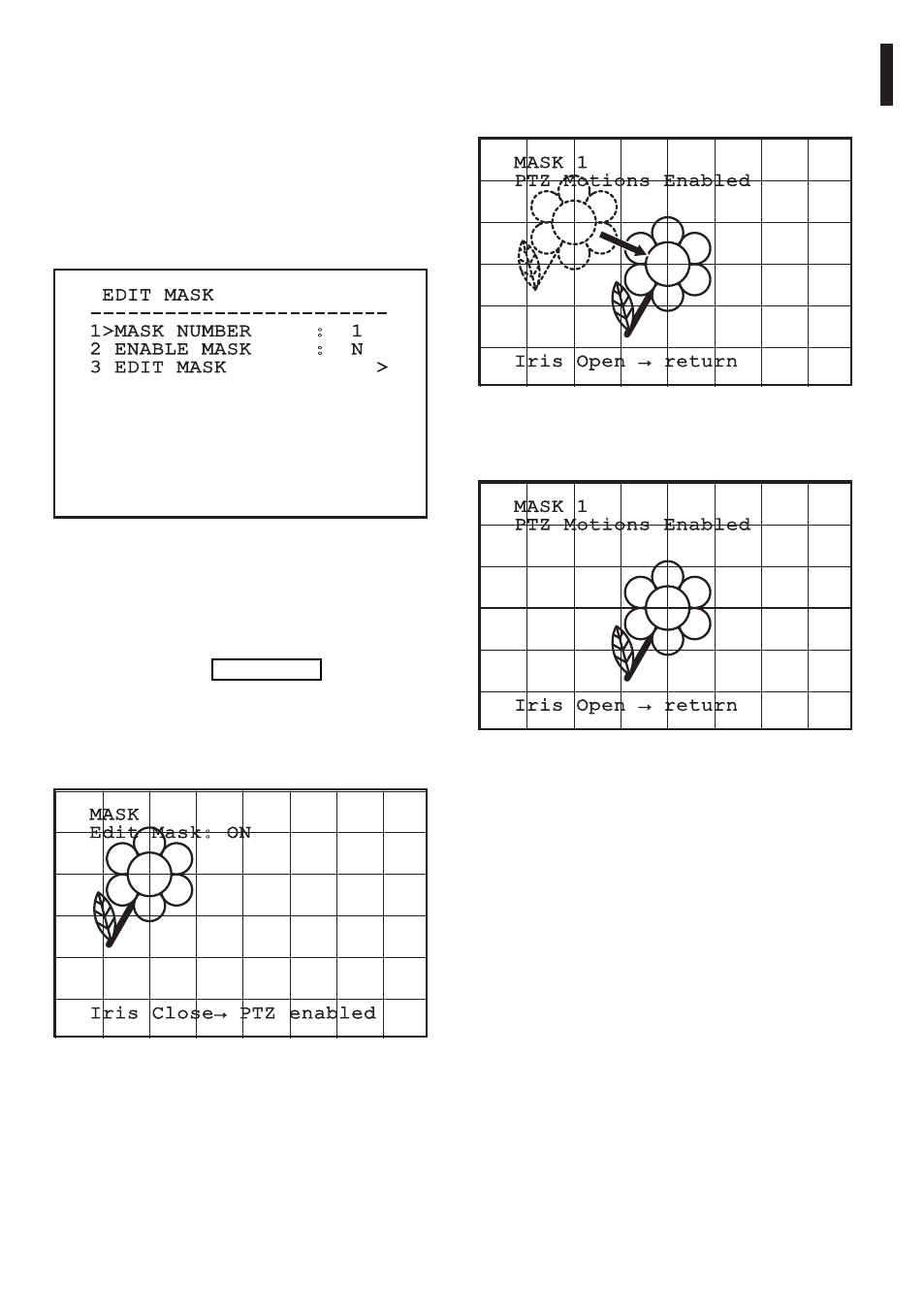

EDIT MASK
------------------------
1>MASK NUMBER : 1
2 ENABLE MASK : N
3 EDIT MASK >
Fig. 53
Selecting the option Edit Mask in the menu makes it
possible to set new values for the selected mask.
9.6.3.5 How to create a new mask
Choose a disabled mask by selecting Mask Number
from the Edit Masks (Fig. 53, page 29) menu. Select
Edit Mask to edit it.
In the following example we shall mask a flower.
• Press the Iris Close button to pass from Masking
mode to Move Camera mode.
MASK
Edit Mask: ON
Iris Close→ PTZ enabled
Fig. 54
