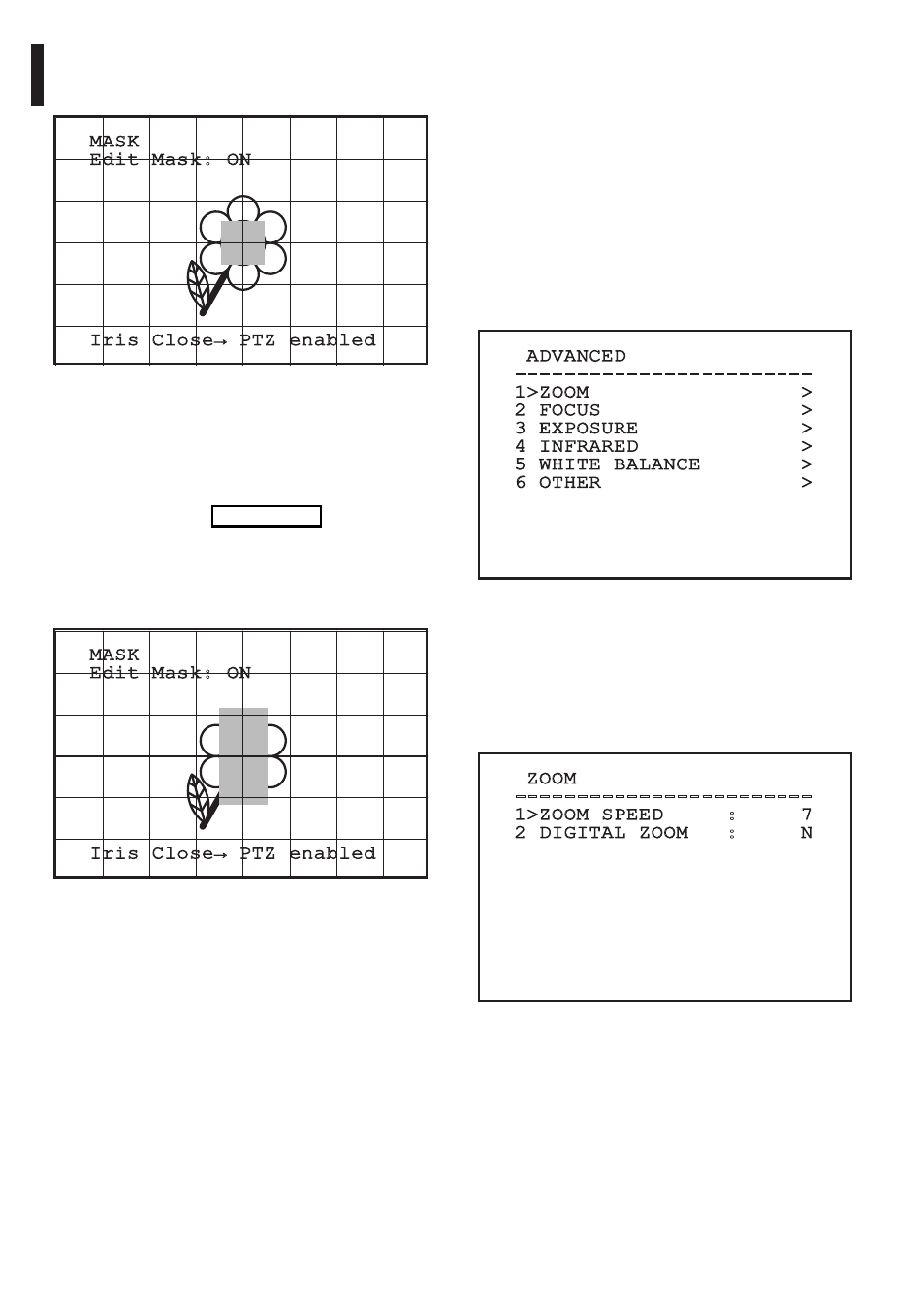

9.6.3.7 Advanced setting menu
This menu is used to configure the SONY module.
01. Zoom: Allows access to the Zoom submenu.
02. Focus: Allows access to the Focus submenu.
03. Exposure: Allows access to the Exposure
submenu.
04. Infrared: Allows access to the Infrared
submenu.
05. White Balance: Allows access to the White
Balance submenu.
06. Other: Allows access to the Other submenu.
ADVANCED
------------------------
1>ZOOM >
2 FOCUS >
3 EXPOSURE >
4 INFRARED >
5 WHITE BALANCE >
6 OTHER >
Fig. 59
9.6.3.8 Advanced setting menu (Zoom)
01. Zoom Speed: Sets the speed of the zoom. The
speed ranges between 0 (minimum speed) and
7 (maximum speed).
02. Digital Zoom: Enables the digital zoom.
ZOOM
------------------------
1>ZOOM SPEED : 7
2 DIGITAL ZOOM : N
Fig. 60
• A small rectangle will appear. Operate the joystick
(Pan & Tilt) to enlarge the rectangle until it covers
the whole flower.
MASK
Edit Mask: ON
Iris Close→ PTZ enabled
Fig. 57
• When the desired result is obtained confirm by
turning the zoom to tele.
9.6.3.6 How to modify a mask
Choose an enabled mask by selecting Mask Number
from the Edit Masks (Fig. 53, page 29) menu. Select
Edit Mask to edit it.
• Operate the joystick (Pan & Tilt) to enlarge or
reduce the rectangle until the desired effect is
obtained.
MASK
Edit Mask: ON
Iris Close→ PTZ enabled
Fig. 58
• Confirm by turning the zoom to tele.
