Videotec ULISSE COMPACT THERMAL - Manual (Page 35)

EN - English - I
nstruc
tions manual
33
9.6.4 Movement menu
01. Configuration: Sets one of the default
configurations of the pan & tilt.
• Standard: Sets the standard movement
speed.
• Low Speed: Sets the Low Speed mode that
slows down all pan & tilt operating speeds.
• Wind Mode: Sets the movements speed
to adjust them to environments subject to
vibrations and/or windblasts.
• High Perf: Establishes that all the movements
are carried out at the maximum possible
speed.
• Custom: Signals that the user has manually
selected the movement speeds of the unit.
02. Offset Pan: The pan & tilt has a mechanically
defined 0° position. The Offset Pan function
allows the definition of a different 0° position
using software.
03. Manual Control: To access the submenus
operating the parameters associated with the
manual movements of the device.
04. Preset: To access the submenus used to to edit
Preset values.
05. Patrol: To access the submenus used to edit
Patrol values.
06. Autopan: To access the submenus used to edit
Autopan values.
07. Motions Recall: To access the submenu which
manages automatic load of the movements.
08. Advanced: Allows access to the advanced
settings submenu.

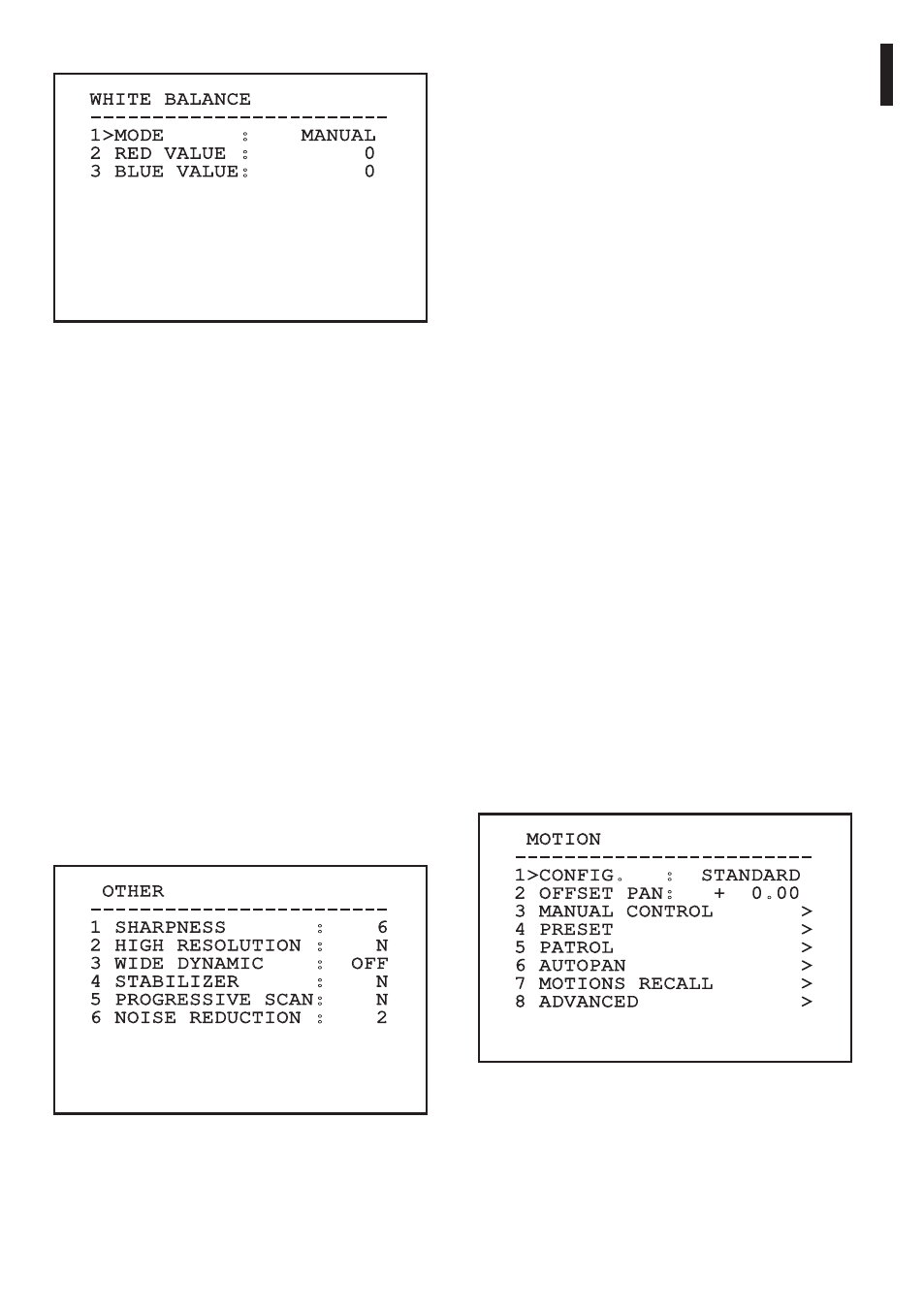

MOTION
------------------------
1>CONFIG. : STANDARD
2 OFFSET PAN: + 0.00
3 MANUAL CONTROL >
4 PRESET >
5 PATROL >
6 AUTOPAN >
7 MOTIONS RECALL >
8 ADVANCED >
Fig. 66
03. Blue Value: Sets the value of the blue gain.
WHITE BALANCE
------------------------
1>MODE : MANUAL
2 RED VALUE : 0
3 BLUE VALUE: 0
Fig. 64
This is a dynamic self-configuration menu based on
che choice made and displays the parameters on
which it is possibile to operate.
9.6.3.13 Advanced setting menu (Other)
01. Sharpness: Sets the sharpness value of the
image.
02. High Resolution: Enables the High Resolution
function. The output video signal has a higher
resolution.
03. Wide Dynamic: Enables the Wide Dynamic
function. It improves vision when some zones
within the frame are much brighter than others.
04. Stabilizer: Enables the electronic image
stabilization function.
05. Progressive Scan: Enables the Progressive Scan
function. Gives a more stable image when the
Pan & Tilt is connected to a video server.
06. Noise Reduction: Sets the noise reduction
level. Vary the parameter according to the
environmental conditions to obtain a higher
contrast image.
OTHER
------------------------
1 SHARPNESS : 6
2 HIGH RESOLUTION : N
3 WIDE DYNAMIC : OFF
4 STABILIZER : N
5 PROGRESSIVE SCAN: N
6 NOISE REDUCTION : 2
Fig. 65
