EN - English - I
nstruc
tions manual
12

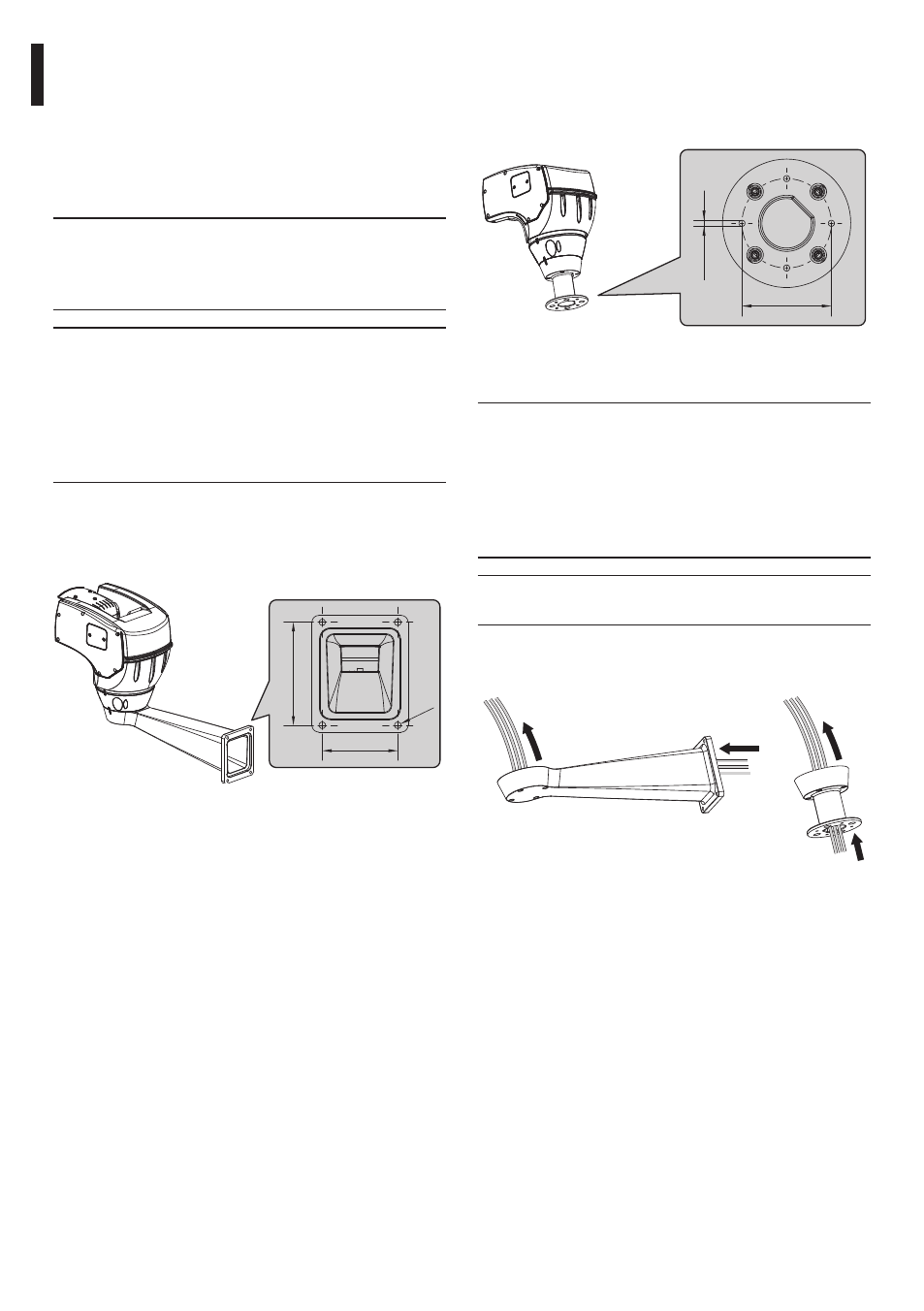

6.4.1.2 Attachment with a pole support
(optional)
The column support allows the internal passage of
the connection cables.
Ш 101.6
Ш 7
Fig. 04
6.4.2 Cables management
h
The connection cables should not be
accessible from the outside; what is more,
since the cable could be pulled out it
is necessary to fasten it securely to the
pole in order to prevent excessive weight
pulling it out by accident and rendering the
apparatus unsafe.
h
You must use cables suited to the type of
installation.
Insert the cables into the support so that they
protrude by about 50cm.
50cm
50cm
Fig. 05
6.4 Preparatory work before
installation
6.4.1 Attaching the support
There are two kinds of support, choose the most
suitable one for your installation and follow all the
instructions given in this section.
h
The device should be assembled vertically.
Any other position could impair the
performance of the appliance. Do not
attach the device upside down.
h
Take special care when attaching and
fastening down the apparatus. If it is to be
attached to a concrete surface you must use
dowel pins with a traction torque rating of
at least 300daN each; for a metal surface
use screws with a diameter of at least 8 mm
and of an appropriate length.
6.4.1.1 Attachment with bracket (optional)
The bracket is drilled to make it easy the connection
cables through it.
110
Ø 9
150
Fig. 03
