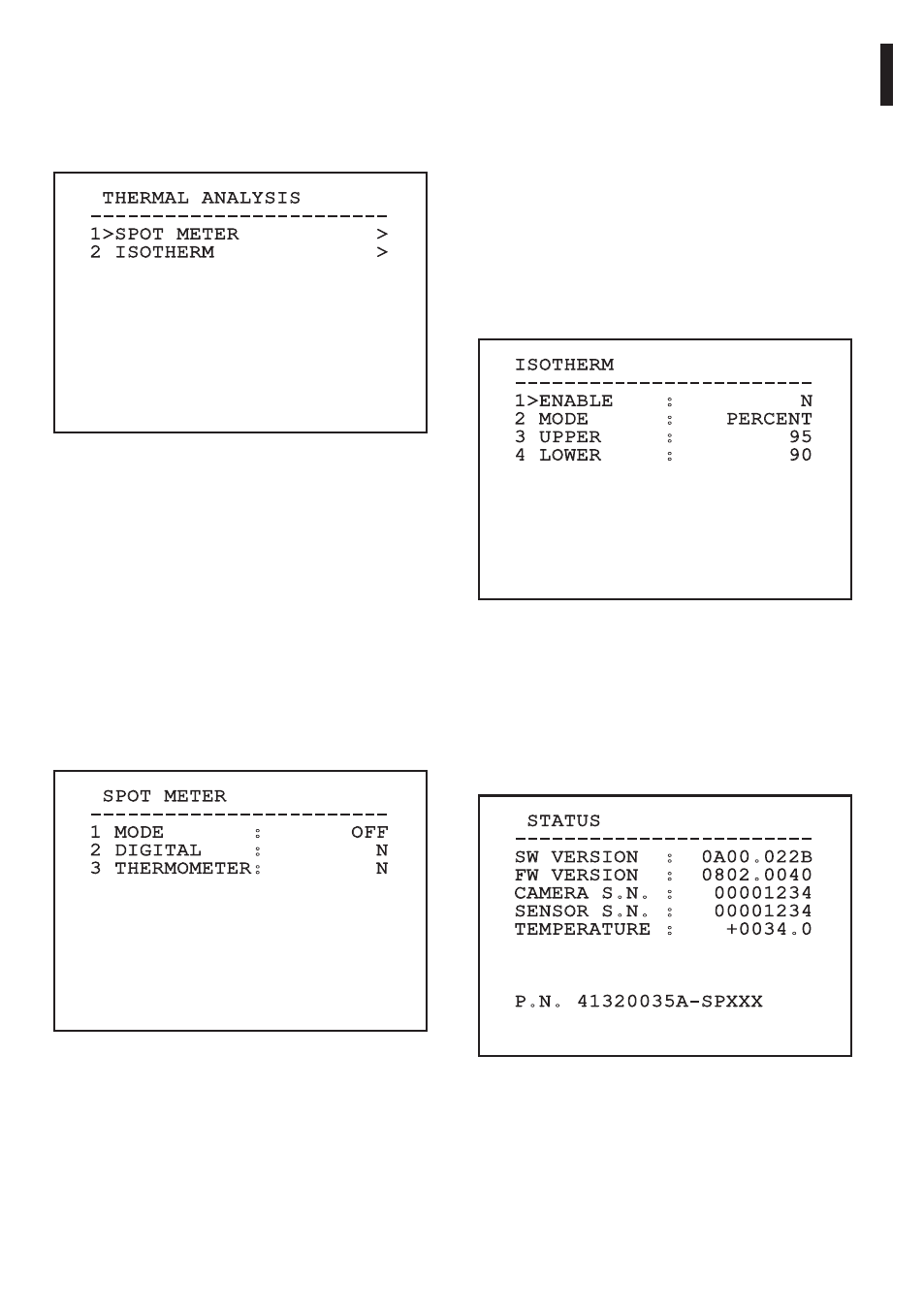

9.6.10.8 Thermal Analysis Menu (Isotherm)
Once inside the Isotherm menu it is possible to
enable a special colouring for objects included within
the set temperature interval. The parameters which
manage this function are:
01. Enable: Enables the Isotherm function.
02. Mode: Selects the way in which the interval is
indicated (in percentage or in degrees Celsius).
03-05 Upper: Sets the upper limit of the Isotherm
function.
03-05 Lower: Sets the lower limit of the Isotherm
function.
ISOTHERM
------------------------
1>ENABLE : N
2 MODE : PERCENT
3 UPPER : 95
4 LOWER : 90
Fig. 92
This is a dynamic self-configuration menu based on
the choice made and shows the parameters on which
it is possible to operate.
9.6.10.9 Status Menu
Once inside the Status menu it is possible to learn the
technical features of the thermal camera.
STATUS
------------------------
SW VERSION : 0A00.022B
FW VERSION : 0802.0040
CAMERA S.N. : 00001234
SENSOR S.N. : 00001234
TEMPERATURE : +0034.0
P.N. 41320035A-SPXXX
Fig. 93
9.6.10.6 Thermal Analysis Menu
01. Spot Meter: Allows access to the point
measurement configuration submenu.
02. Isotherm: Allows access to the isotherm
management submenu.
THERMAL ANALYSIS
------------------------
1>SPOT METER >
2 ISOTHERM >
Fig. 90
9.6.10.7 Thermal Analysis Menu (Spot
Meter)
Once inside the Point Measurement menu it is
possible to set one of the following parameters:
01. Mode: Enables the visualization of the taken
temperature from the 4 pixels to the centre of
the image (in degrees Celsius or Fahrenheit).
The OFF option disables the visualization.
02. Digital: Enables the visualization of the relative
symbol on the display.
03. Thermometer: Enables the visualization of the
relative symbol on the display.
SPOT METER
------------------------
1 MODE : OFF
2 DIGITAL : N
3 THERMOMETER: N
Fig. 91
