EN - English - I
nstruc
tions manual
37

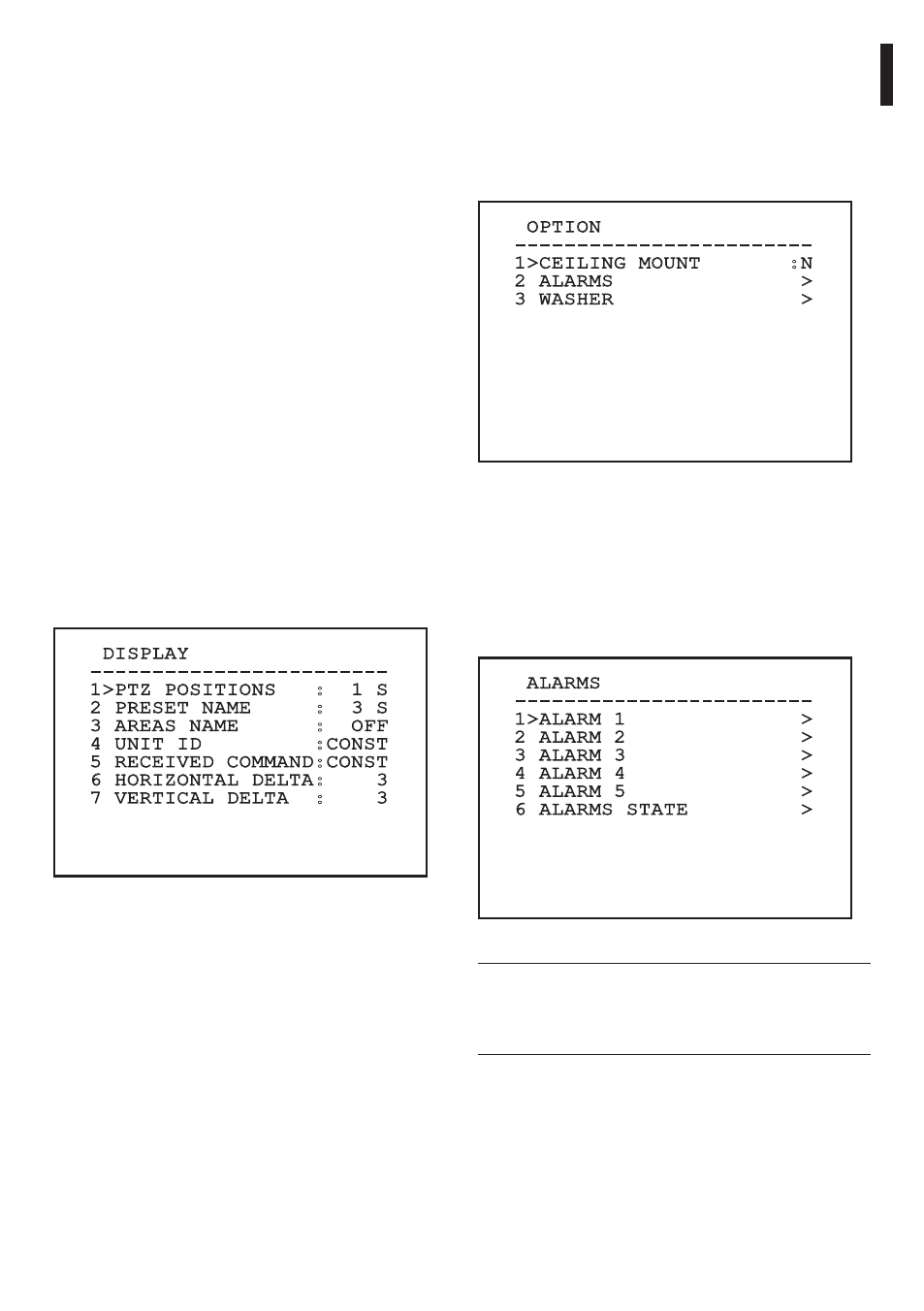

9.6.6 Options menu
01. Ceiling Mount: When this mode is enabled the
image and the movements controls are turned
upsidedown.
02. Alarms: Allows access to the Alarms menu.
03. Washer: Allows access to the Washer menu.
OPTION
------------------------
1>CEILING MOUNT :N
2 ALARMS >
3 WASHER >
Fig. 77
9.6.6.1 Alarms menu
01. Alarms 1-5: Allow access to the menus from
which it is possible to set the parameters of
Alarms 1 to 5.
02. Alarms State: Allows access to the Alarms State
menu.
ALARMS
------------------------
1>ALARM 1 >
2 ALARM 2 >
3 ALARM 3 >
4 ALARM 4 >
5 ALARM 5 >
6 ALARMS STATE >
Fig. 78
j If the IR illuminator is fitted, alarm 5 is
reserved for the external dusk switch and
therefore alarm 5 will not be displayed on
the screen.
From the Alarms menu it is possible to access one of
the menus (Alarms 1-5) to edit the alarms parameters.
9.6.5 Display menu
01. PTZ Positions: If not on OFF, it is used to select
how the Pan, Tilt and Zoom positions are
displayed on the screen. It is possible to select
timed (1 S, 3 S and 5 S) or constant (CONST)
display.
02. Preset Name: If not on OFF, it is used to select
how the text associated with the last-reached
Preset position is displayed on the screen. It is
possibile to select timed (1 S, 3 S and 5 S) or a
constant (CONST) display.
03. Areas Name: If not on OFF, it is used to select
how the texts associated with active areas are
displayed. It is possibile to select timed (1 S, 3 S
and 5 S) or constant (CONST) display.
04. Pan & Tilt ID: If not on OFF, it shows the ID of
the pan & tilt.
05. Received Commands: If not on OFF, it is used
to select how the received serial commands are
displayed. It is possibile to select timed (1 S, 3 S
and 5 S) or constant (CONST) display.
06. Horizontal Delta: This moves the menu texts
horizontally, for better centring.
07. Vertical Delta: This moves the menu texts
vertically for better.
DISPLAY
------------------------
1>PTZ POSITIONS : 1 S
2 PRESET NAME : 3 S
3 AREAS NAME : OFF
4 UNIT ID :CONST
5 RECEIVED COMMAND:CONST
6 HORIZONTAL DELTA: 3
7 VERTICAL DELTA : 3
Fig. 76
