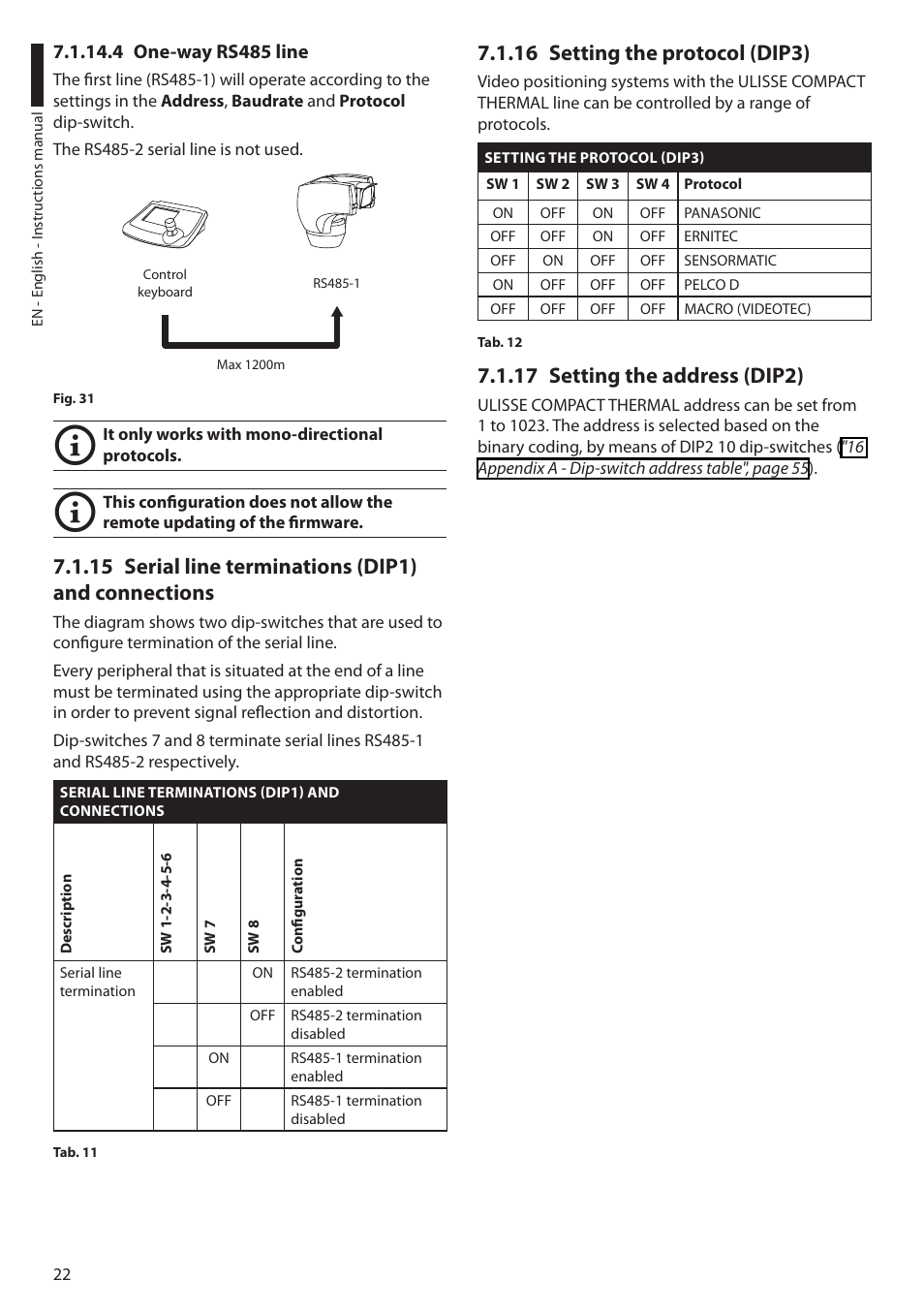

4 one-way rs485 line, 15 serial line terminations (dip1) and connections, 16 setting the protocol (dip3) – Videotec ULISSE COMPACT THERMAL User Manual
