Pools > THP (component type) > Individual ThP pool IDs. Each individual ThP pool further includes
the following:
•
LDEVs (component type) > Individual LDEVs > RG(s) (component type) > Individual RAID
Groups assigned to the selected smart pool
•
VVols (component type) > Individual host group > Volumes (component type) > Individual
LDEVs associated with a host group

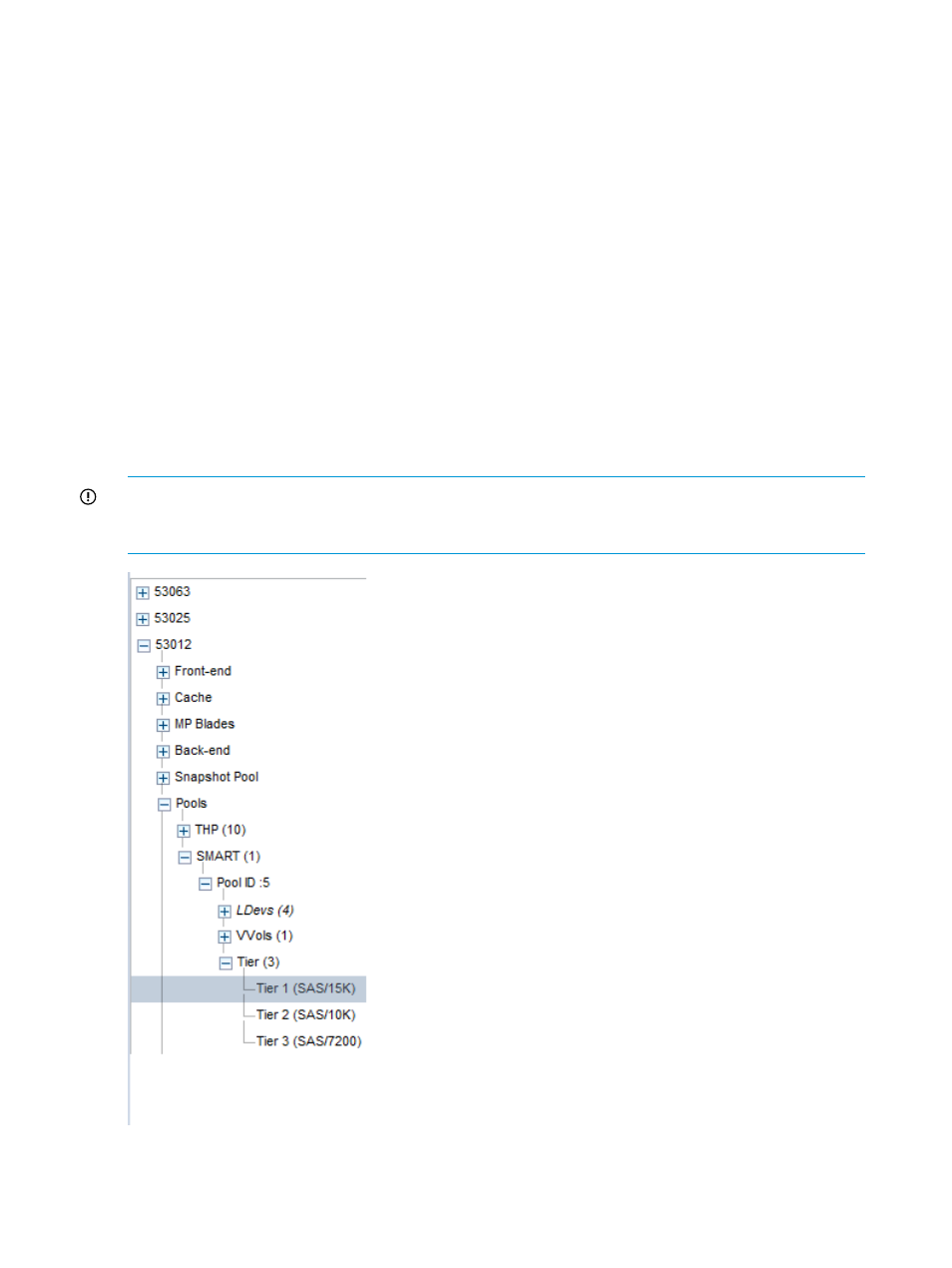

SMART
The SMART comprises of the RAID groups and physical LDEVs, host groups and VVols, and tiers
for the Smart pools. Following is the component selection path:
Pools > SMART (component type) > Individual Smart pool IDs. Each individual Smart pool further
includes the following:
•
LDEVs (component type) > Individual LDEVs> RG(s) (component type) > Individual RAID Groups
assigned to the selected SMART pool
•
VVols (component type) > Individual host group > Volumes (component type) > Individual
LDEVs associated with a host group
•
Tiers (component type) > Individual tier, indicates the drive type configured. You can view
the I/Os per second and utilization data at the tier level.
IMPORTANT: Smart pool ID configured without v-vols will be available in Array View
→Pool
screen with pool volumes and pool tiers info without vvols
→Pools. This pool Id is listed in
Charts
→→SMART
