7.6 File Operations and Printing
7-7
By setting a numerical value, it is possible to freely specify the marker position within the
setting/display resolution range without being restricted by the waveform data address.
d) Marker interlock mode
When (option button) to the left of [ Indep] on the toolbar is selected ( ), markers A and B
independently move.
Clicking the option button to the left of [tRack] or pressing Alt
+ R interlocks marker A and marker
B.
The horizontal difference between marker A and marker B is displayed to the right of [dX (-)].
When either of the markers is moved, the other marker is also moved with the distance between them
being kept.
Click the right space to [dX (-)] or press
Alt + - and input a numerical value, and then press the
Enter key to jump marker B so that the distance between the markers becomes the specified value.
7.5.6 Range selection
The range selected with the marker is effective in the following operations:
- Copy/cut/paste range of waveform See “7.7 Copy and Paste”.
- Contraction/extension range See “8.2 Contraction/Extension”.
- Range to generate the waveform through interpolation See “8.3 Waveform Generation
Through Interpolation”.
- Inter-waveform operation range See “8.4 Operation Between
Waveform”.
To be exact, the marker exists just before the set/displayed horizontal axis position (the numerical
value display to the right of [MrkA(X)] or [MrkB(X)]).
For example, when the horizontal axis position for marker A is 5 and that for marker B is 10, the
selection range will be 5
 X < 10. Marker A is located just before 5, so 5 is between marker A and
marker B. Marker B is located just before 10, so 10 is not between marker A and marker B.
7.6 File Operations and Printing

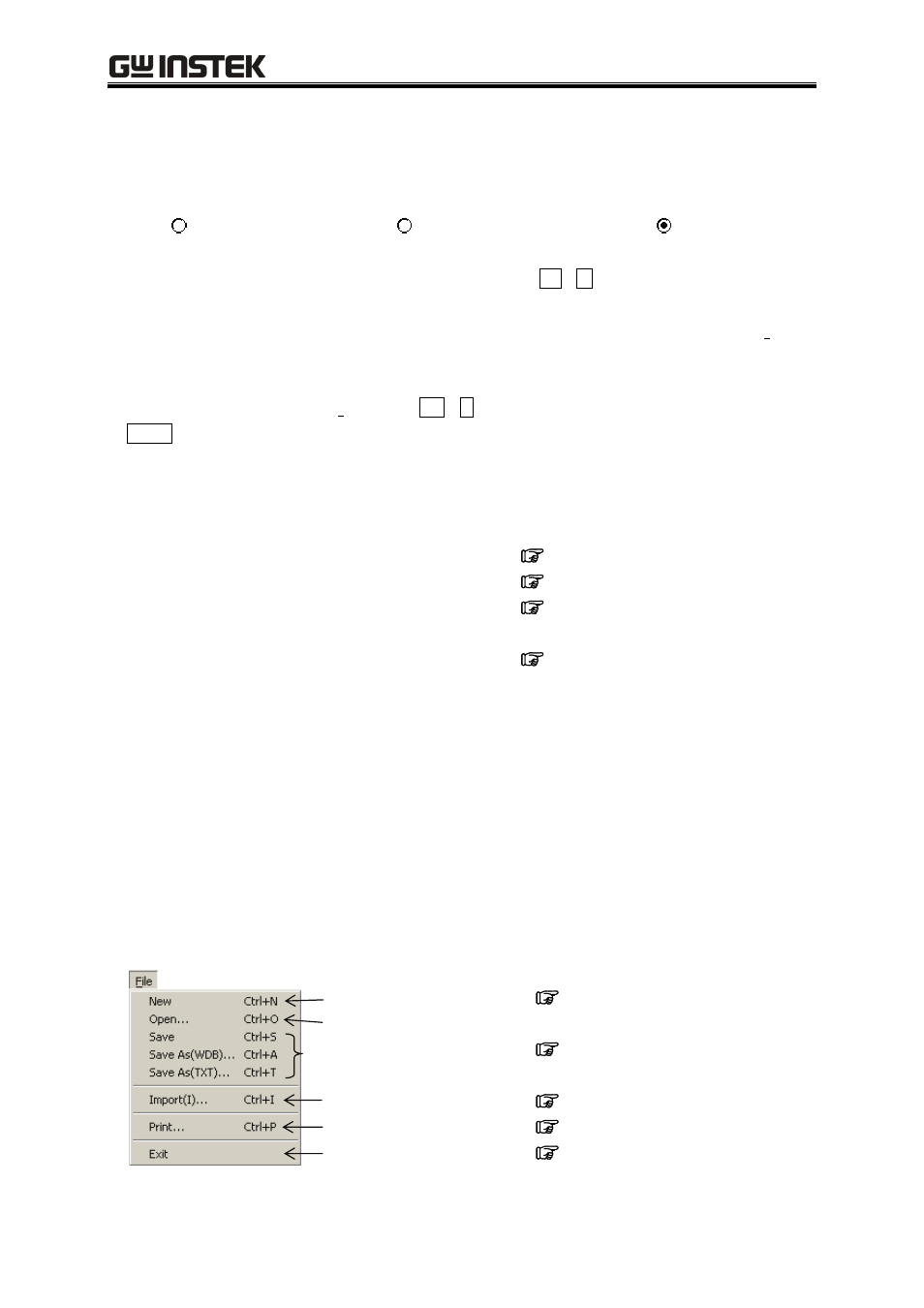

The file menu options are shown below.
Starts multiple ARBs. See “7.6.2 New”.
Reads waveform data file.
Saves waveform data file.
See “7.6.3 Specialized format
file”.
Reads data file. See “7.6.4 Text file”.
Prints displayed waveform. See “7.6.5 Import”.
Exits the ARB. See “7.6.6 Print”.
The file name used for reading or saving is displayed on the title bar.
