4-7
IM 04L65B01-01EN

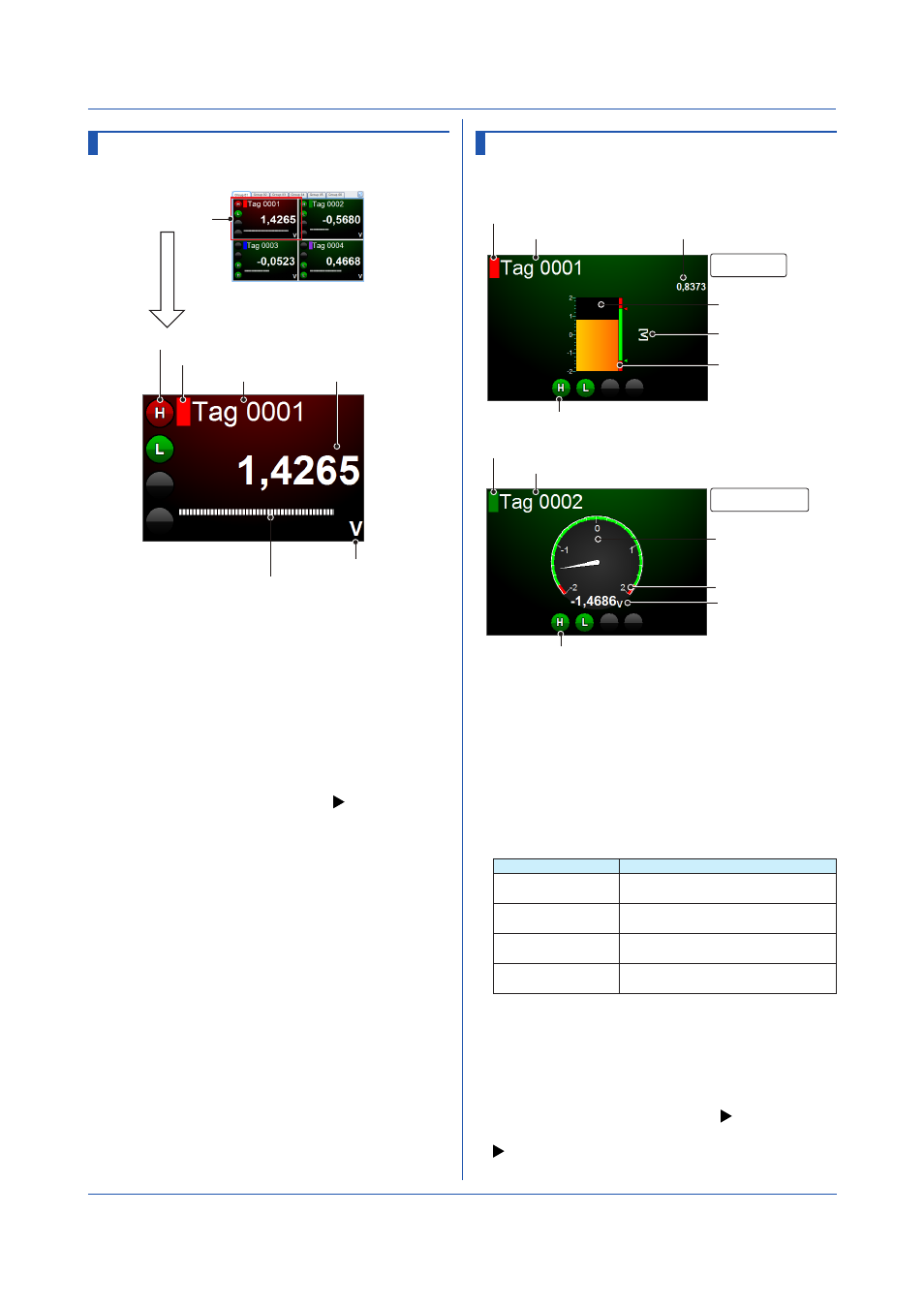

4.3 Monitoring on the Digital Display
4.3.1 Displayed Content
Alarm indicator
Tag display area
Tag color
Tag name
Measurement bar display
Unit
Measured value
• Tag Display Area
Tag alarm status is indicated in the alarm color.
* The alarm colors specified on the Acquisition &
Monitor page.
• Alarm Indicator
The status of alarm level 1, alarm level 2, alarm level
3, and alarm level 4, are displayed from the top. Tag
alarm status is indicated in the alarm color. Alarm
indicators show a character that indicates the alarm
type. *
* It is not shown if the display area is limited.
Characters that indicate alarm types section 4.5.3
4.3.2 Showing and Hiding Alarm Indicators
When you click Alarm on the View menu to add a check
mark, alarm indicators are shown. To not show alarm
indicators, click Alarm on the View menu to unselect the
command.
4.4 Monitoring on the Meter Display
4.4.1 Displayed Content
There are bar meters and analog meters.
Alarm indicator
Bar meter
Alarm zone and
alarm value mark
Unit
Tag color
Tag name Measured value
Alarm indicator
Analog meter
Alarm zone
Measured value
and unit
Tag color
Tag name
Bar meter
Analog meter
• Tag Display Area
Tag alarm status is indicated in the alarm color.
• Alarm Zone
The zone where alarms occur is indicated in the alarm
color.
• Alarm Value Mark (bar meters only)
Indicates the alarm value of data collection devices.
This appears when the alarm type is set to high limit,
low limit, difference high limit, difference low limit, delay
high limit, or delay low limit.
Displayed Content Description
▲ Indicates that the alarm type is high
limit or difference high limit.
▲ Indicates that the alarm type is low
limit or difference low limit.
▲ Indicates that the alarm type is delay
high limit.
▲ Indicates that the alarm type is delay
low limit.
• Alarm Indicator
The status of alarm level 1, alarm level 2, alarm level
3, and alarm level 4, are displayed from the left. Tag
alarm status is indicated in the alarm color. A character
that indicates the alarm type is displayed. *
* It is not shown if the display area is limited.
Characters that indicate alarm types section 4.5.3
You can show and hide alarm indicators.
section 4.3.2
Chapter 4 Monitoring Data Collection
