Operator’s Manual
922244-00 Rev A 129
B
NOTE: If the Waveform View screen is opened before a data acquisition
has taken place, signals (and their names) are not visualized and the screen
is not shown. Only when an acquisition takes place are signals then
visualized on the Waveform View screen.


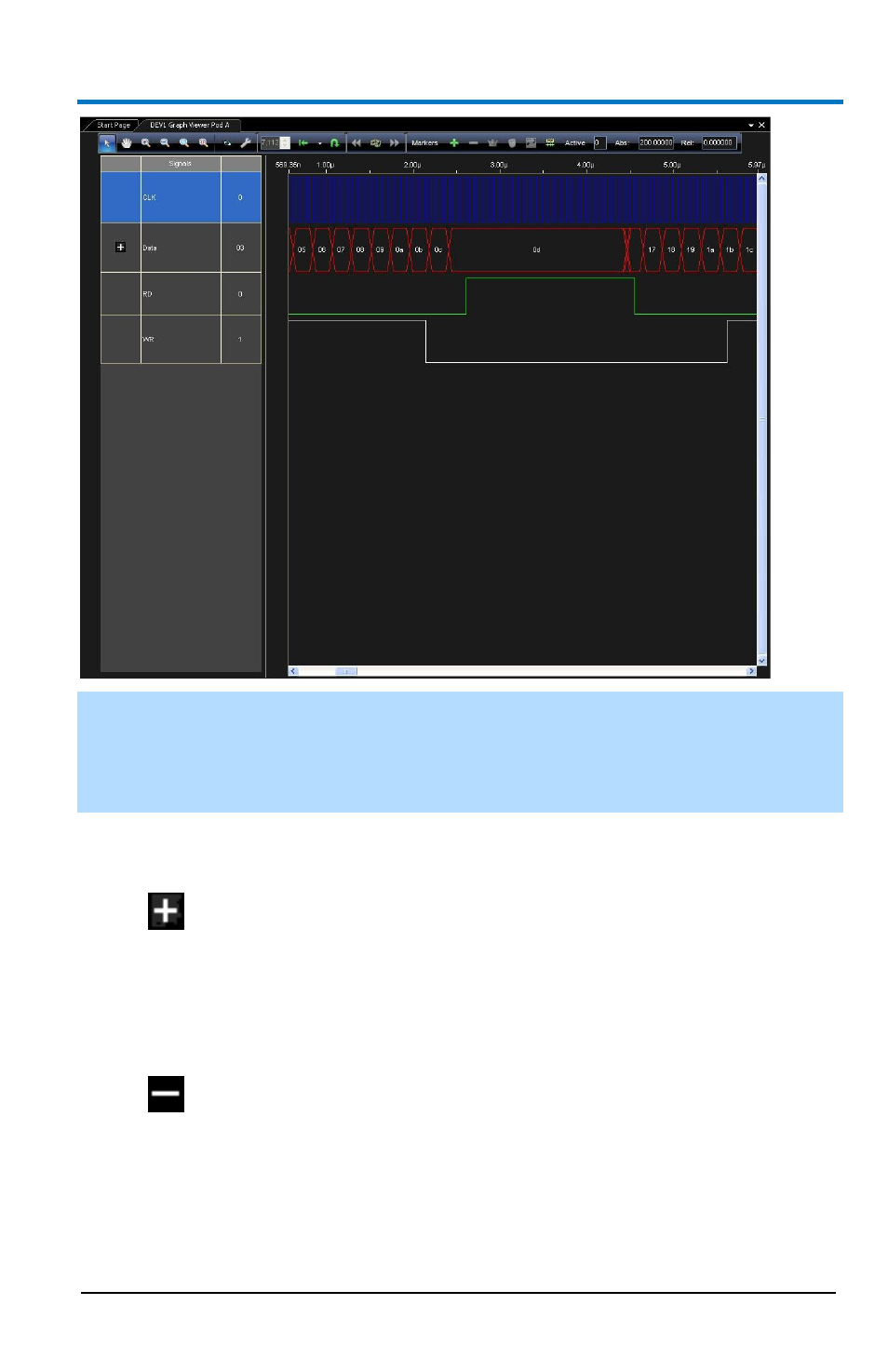

In the Waveform View, a bus node is indicated by the Expandable
Bus icon shown to the left of the bus name.
Double click the bus name to display its data on the right of the
Waveform View screen.

Once a bus node is opened, the Expanded Bus icon is shown instead
of the Expandable Bus icon.

Double click the bus name again to close the bus.
C
HANGING
W
AVEFORM
O
RDER
You can drag and drop the waveforms inside the listing on the left of the
screen to change their order. This often helps users focus on the time
relationship between edges. Just click a signal name on the list and drag it
