3.6.1 Trace View Features
After the recording terminates, the results display.

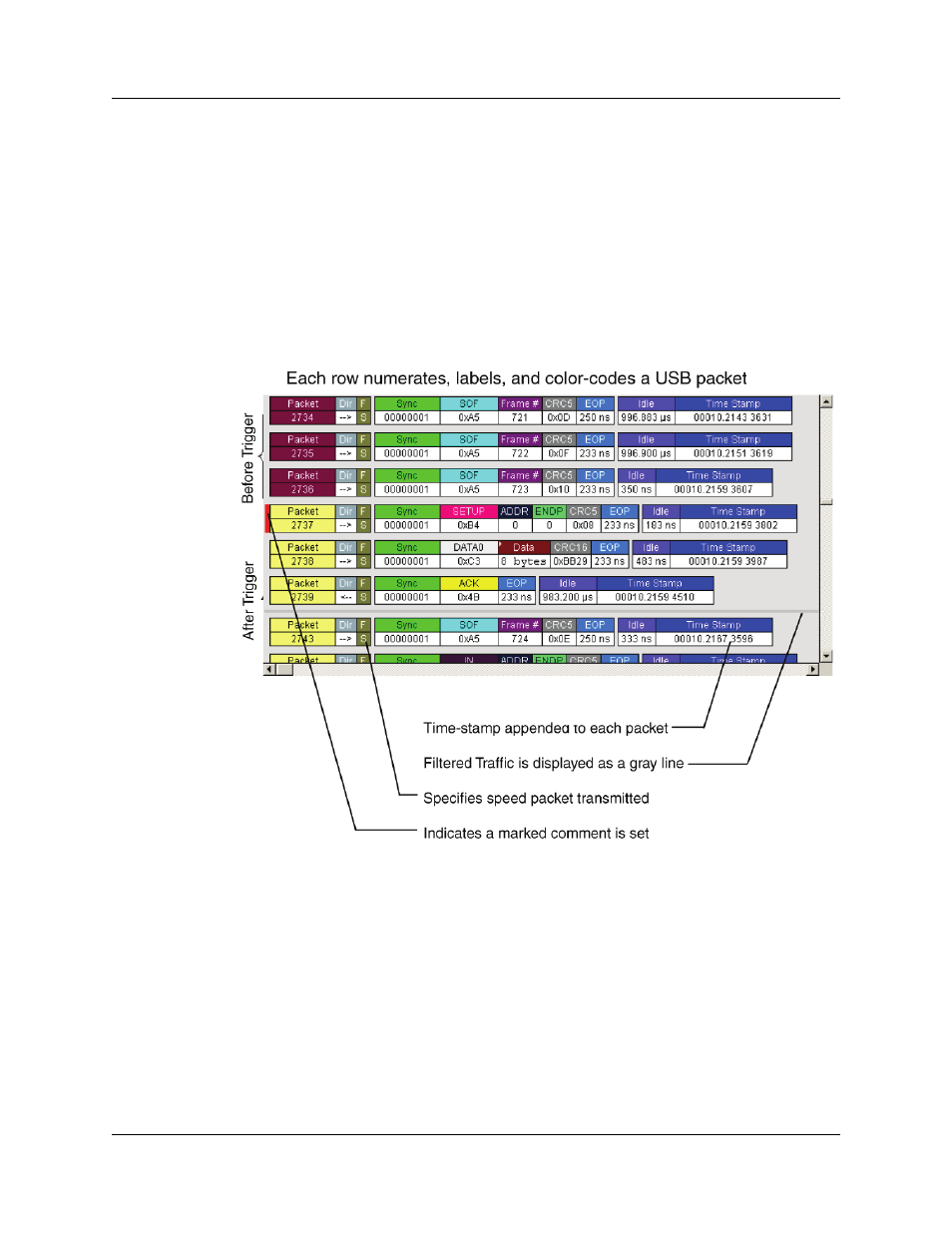

• The packet view display uses color and graphics to document captured traffic.
• Packets are on separate rows, with individual fields both labeled and
color-coded.
• Packets are numbered sequentially (as recorded), time-stamped (with a
resolution of 2 ns on 3.0 signalling), and highlighted to show the transmitted
speed (low-speed, full-speed, high-speed, or superspeed).
• You can name and save display formats for later use.
• Data fields can collapse to occupy minimal space in the display.
You can start the application from the Desktop or from the installed directory.
The display software can operate independently of the Analyzer. When used without the
Analyzer, the program functions in a Trace Viewer mode to view, analyze, and print
captured protocol traffic. When used with the Analyzer, you can set trigger conditions,
record, monitor, and analyze the activity of your USB bus.
