USB Protocol Suite User Manual

Chapter 12: Traffic Generation (3.0 Exerciser)

LeCroy Corporation

339

Step 5 To test the USB 3 signals, first connect the DUT/HUT to the appropriate Exerciser

port. Do not click any buttons. The DUT/HUT should see termination on the port,
but no LFPS signaling, and go to the CP0 pattern.

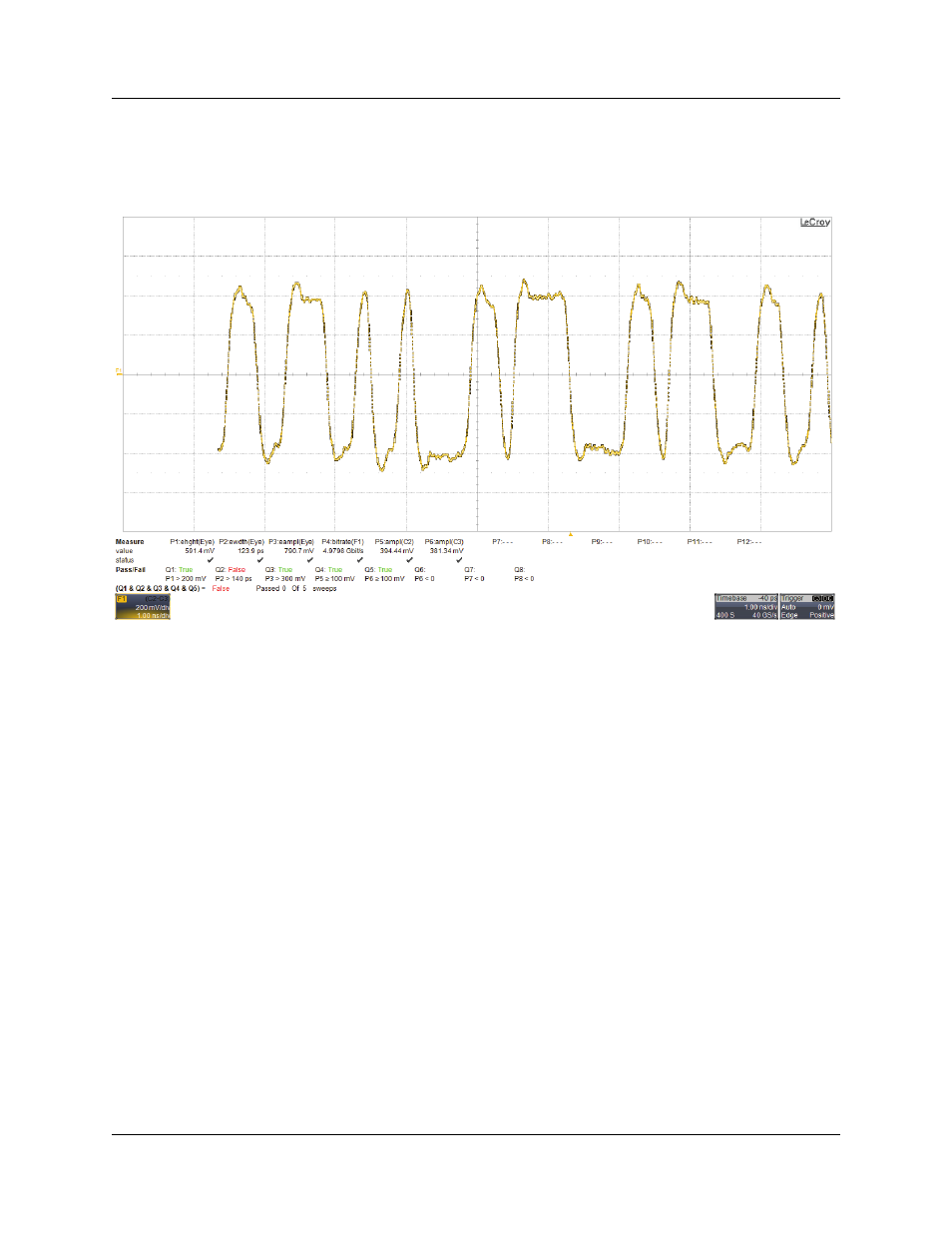

Typical CP0 Pattern
