USB Protocol Suite User Manual
Chapter 9: Reports
LeCroy Corporation
183

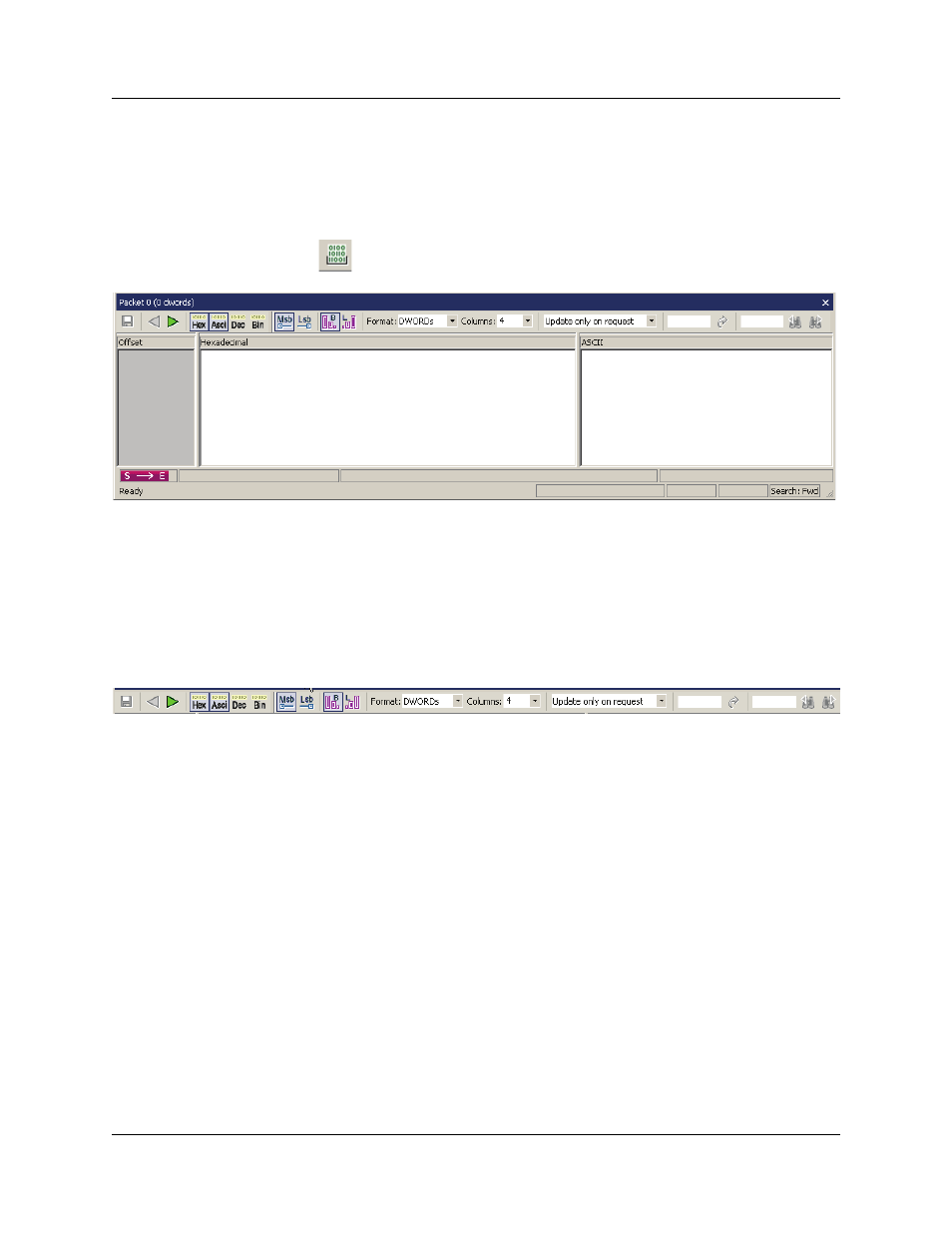

9.4 Data View
The Data View window shows packet information.
To obtain the Data View window, select Report > Data View
or click the
toolbar icon.
The Data View toolbar buttons allow you to:
•
Save
•
Go to Previous or Next
•
Display Hexadecimal, ASCII, Decimal, or Binary
•
Use MSB Format or LSB Format
•
Use Big Endian or Little Endian
The Format field allows you to enter the number of BYTEs, WORDs, or DWORDs per
line.
The Columns field allows you to set the number of columns.
You can Update only on request, Update on click, or Update on scroll.
You can enter an offset in the Scroll to Offset field and click the arrow to scroll there.
You can enter text in the Search field and click Search Previous or Search Next to go
there.
