Chapter 1: Overview USB Protocol Suite User Manual
12
LeCroy Corporation
1.3 USBTracer/Trainer
The LeCroy USBTracer™ USB 2.0 Design & Verification System is the fifth generation
product of LeCroy's analysis tools for USB development and testing. The USB bus &
protocol Analyzer interfaces with standard USB cables and connections to capture and
display all speeds of USB 2.0 bus traffic.

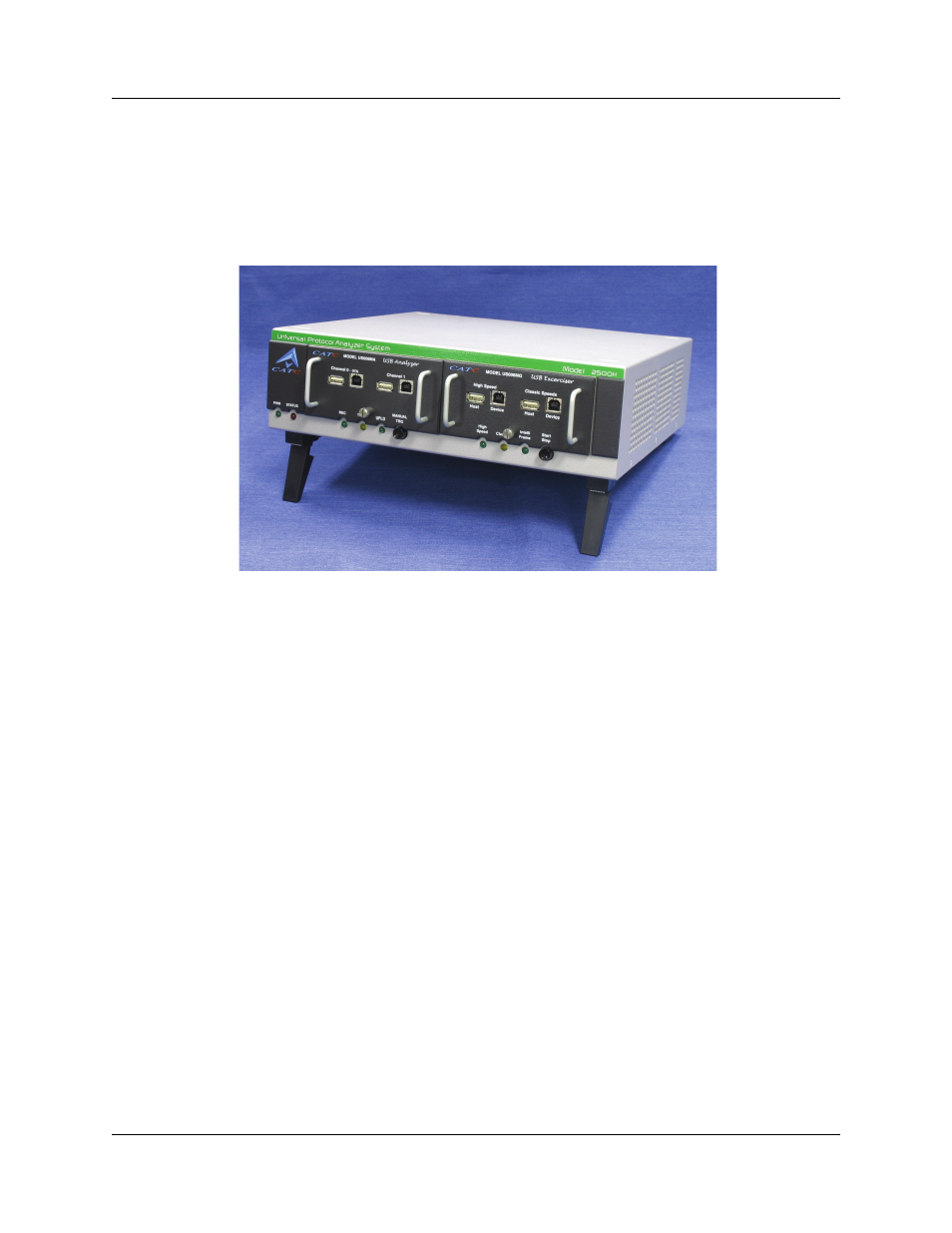

Figure 1.5 USB Tracer/Trainer
1.3.1 USBTracer/Trainer General Description
The USBTracer™ hardware module installs into the LeCroy Universal Protocol Analyzer
System. A portable or desktop PC connects to USBTracer at its USB port and configures
and controls the Analyzer. The “CATC Trace™” user interface is the industry standard for
documenting the performance of high-speed serial protocols.
USBTracer non-intrusively provides traffic capture and analysis for USB protocol
development and testing. Hardware triggering allows real-time event capture. Hardware
filtering filters different types of packets in or out of the recording. Filtering also preserves
recording memory, so that recording time can be extended.
The trace viewer application displays recorded data in colored graphics. Advanced
search and viewing capabilities allow you to quickly locate specific data, errors, and other
desired conditions.
USBTracer functions with any personal computer using the Microsoft ® Windows ® XP,
Windows Vista™ 32, Windows Vista 64, or Windows 7 (32 or 64) operating system and
equipped with a functional USB interface.
