7. Operation of MEC Related Controllers
219

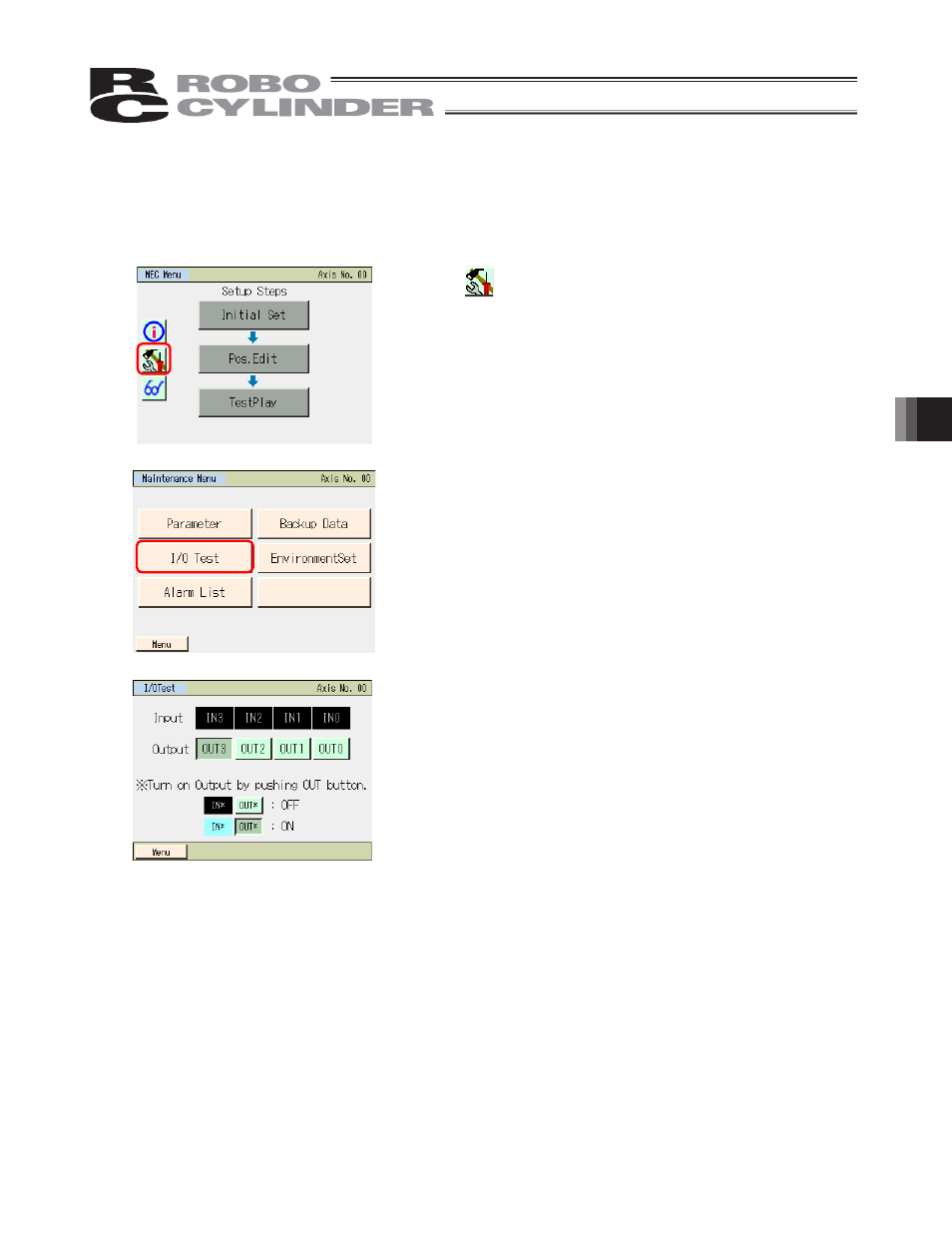

7.11 Maintenance – I/O Tests
You can monitor PIO input signals.
Output signals can be forcibly turned ON or OFF.
Touch on the MEC menu screen.
Touch [I/O Test].
Touch [Menu] to return to the MEC menu screen.
You can monitor the ON/OFF statuses of input signals.
Output signals OUT0 to OUT3 can be forcibly output by touching
each signal button.
Touch [Menu] to return to the maintenance menu screen.
