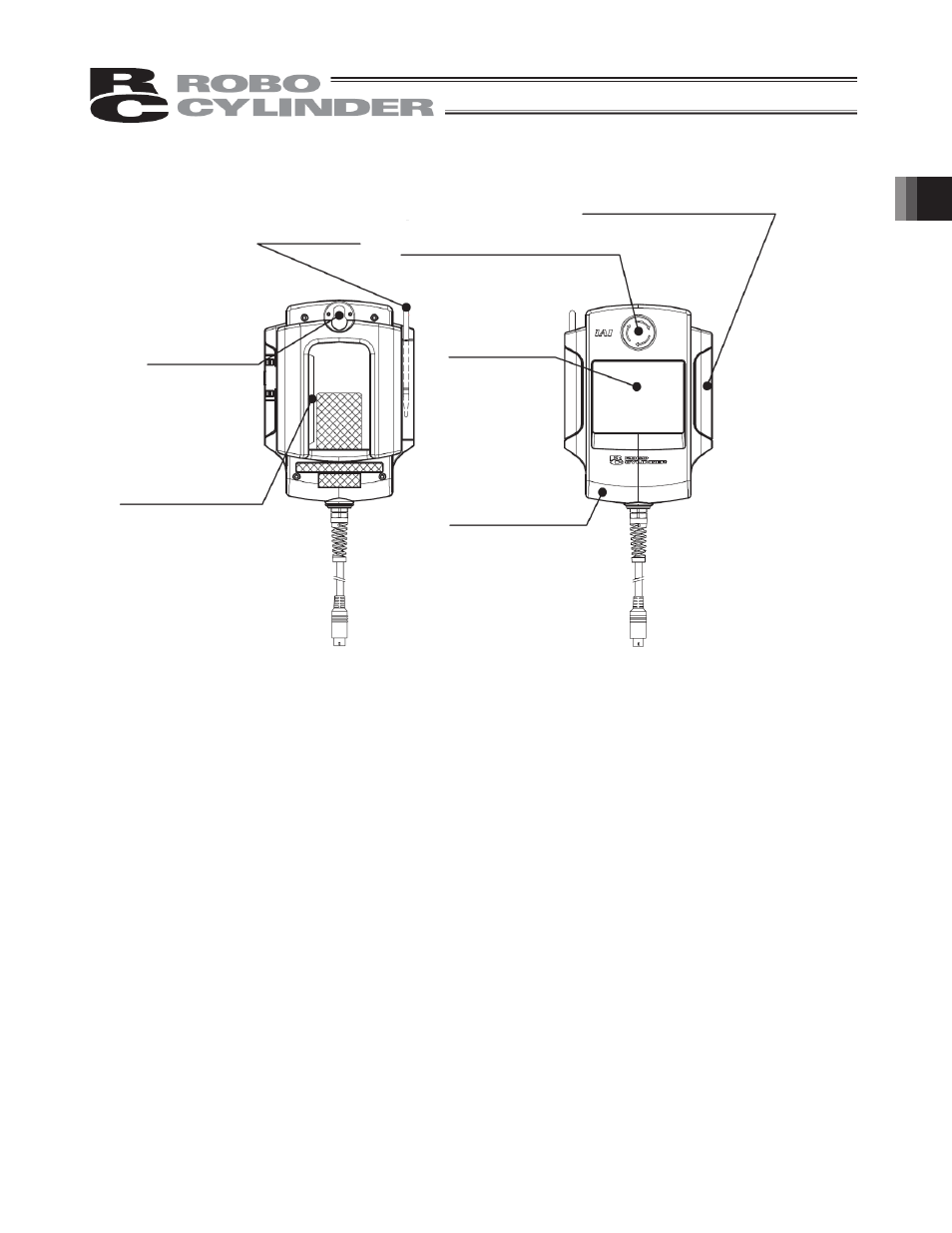

2. Explanation of Each Part
13
[4] Wall-mounting
hook
[3] Touch pen [2] EMERGENCY STOP (pushbutton
switch for emergency stop)
[7] SD memory card slot
[1] Touch panel
operation
display screen
[5] Strap securing part
[6] Deadman switch
CON-PDA, PGA)
2. Explanation of Each Part
[1] Touch-panel operation display screen
The screen consists of a TFT Color LCD Type and a touch panel.
Various settings that have been edited or taught are displayed.
To operate the screen, use a finger or the touch pen to touch (Note 1) desired parts of the touch panel.
(Note 1) In a use of the LCD display for a long term, the brightness may drop.
To maximize the life of the LCD display, remove it from the controller when it is not in use.
Set the turn-off time in the environment setting so it automatically turns OFF.
(Note 2) This touch panel is of analog resistance membrane type, so do not touch two or more
locations on the screen at the same time.
If two or more locations are touched at the same time, the centers of all touched locations
may respond and trigger multiple operations.
(Note 3) When operating the touch panel, do not apply a force exceeding 0.5 N.
If any greater force is applied, the touch panel may be damaged.
(Note 4) The life of touch panel is approx. 1 million touches at the same location. (Assuming a use
environment of 25qC)
[2] EMERGENCY STOP (Pushbutton switch for emergency stop)
This switch actuates an emergency stop.
[3] Touch pen
This touch pen is used to touch the touch-panel operation display screen.
[4] Wall-mounting hook
This hook is used to mount the touch panel on a wall.
