5. Operation of CON Related Controllers
101
5.19.2 Operation to Automatically Set Velocity and Acceleration Speed from Moving
Distance

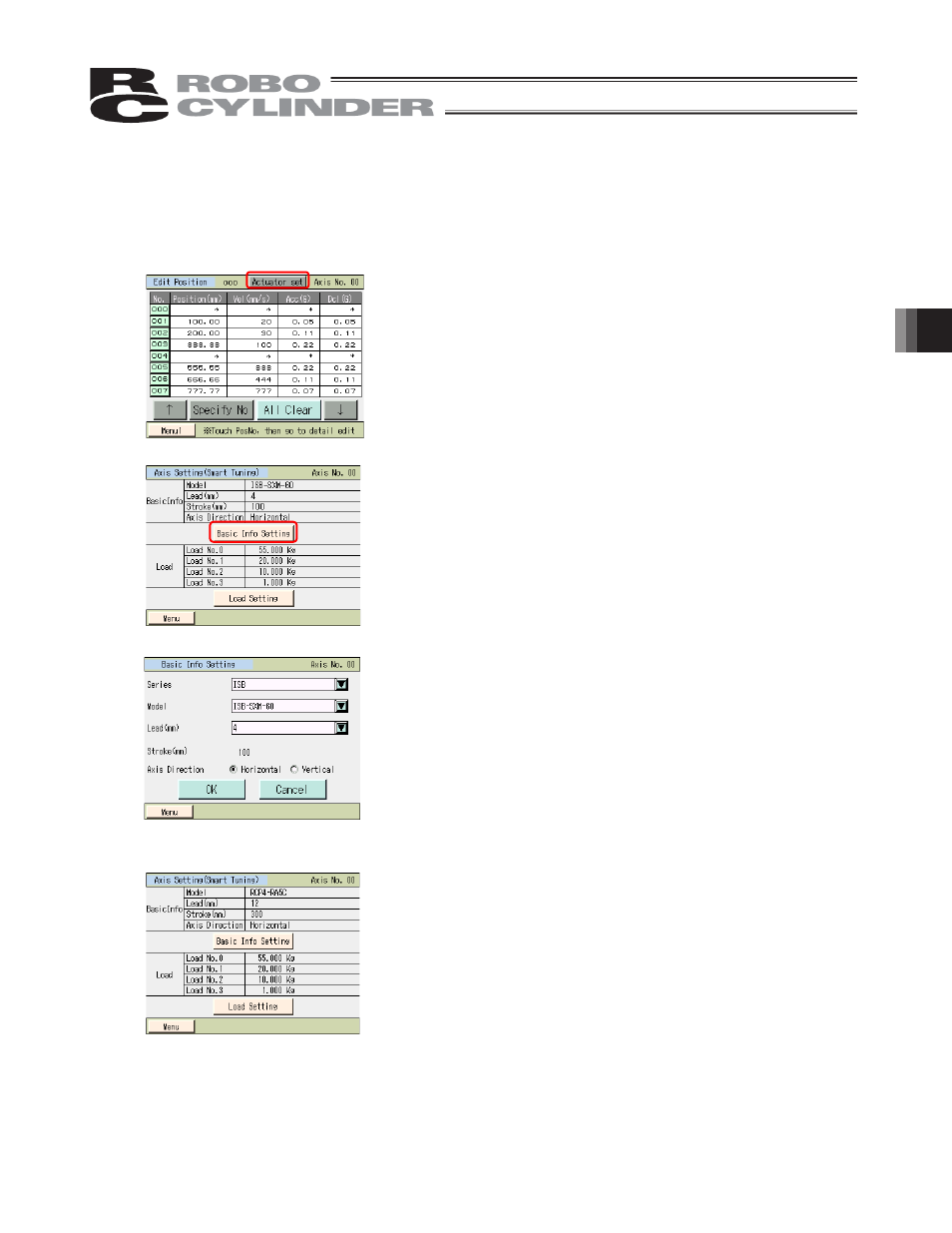

1) Basic Information Settings
Set the model code, lead stroke and the posture of the applicable actuator in “Setting of Actuator
Applicable for Velocity and Acceleration/Deceleration Settings” window.
Touch [Actuator set].
Touch [Basic Info Setting].
Touch ٕ and ً to select the applicable series, model type, lead
(mm). For the stroke, numeric keys will appear if touch it. Input a value
on the numeric keys.
Select the actuator posture from either horizontal or vertical.
Touch [OK].
The screen goes back to Basic Information Setting and Transported
Load Setting window.
