[Inching operation]
You can acquire position data via inching operation.

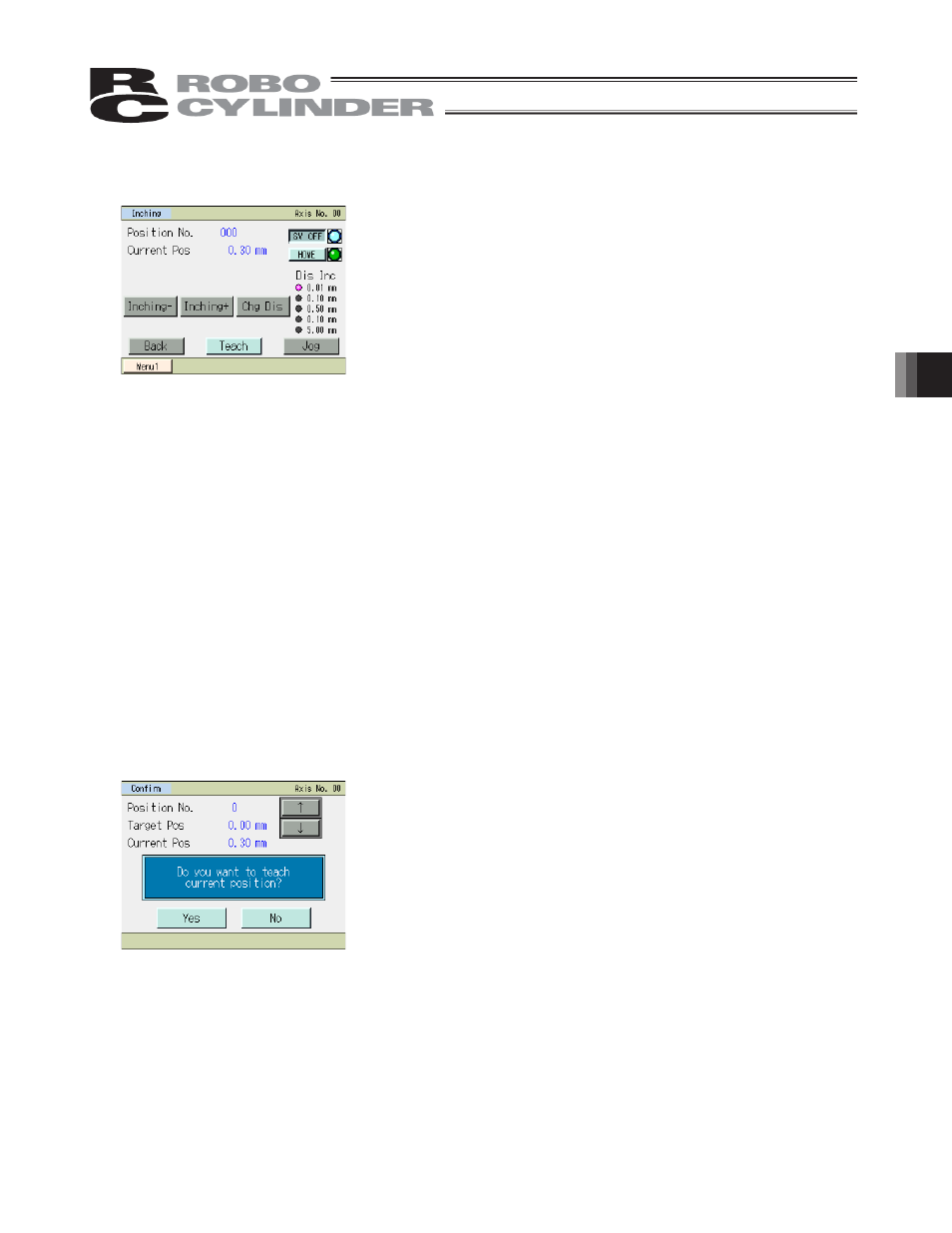

Operation on the jog screen
x
[Inching-], [Inching+] :Touching each button once moves the axis by inching.
[Inching-] moves the actuator in the negative direction.
[Inching+] moves the actuator in the positive direction.
x
[SV ON]
:Touching [SV ON] while the servo is off turns on the axis servo and { becomes
lit. Touching [SV OFF] when the servo is on turns off the axis servo and {
becomes unlit.
x
[HOME]
:Touching [HOME] while home return is not yet completed causes the axis to
return home and { becomes lit.
x
[Chg Dis]
:The inching distance changes in the order of 0.01, 0.10, 0.50, 1.00 and 5.00
mm every time [Chg Dis] is touched.
x
[Jog]
:Touching [Jog] changes to the jog screen.
Position acquisition operation
Touch [Teach]. A confirmation screen appears.
You can touch [n] or [p] to change the position number.
Touching [Yes] acquires the current position.
