7. Operation of MEC Related Controllers
192

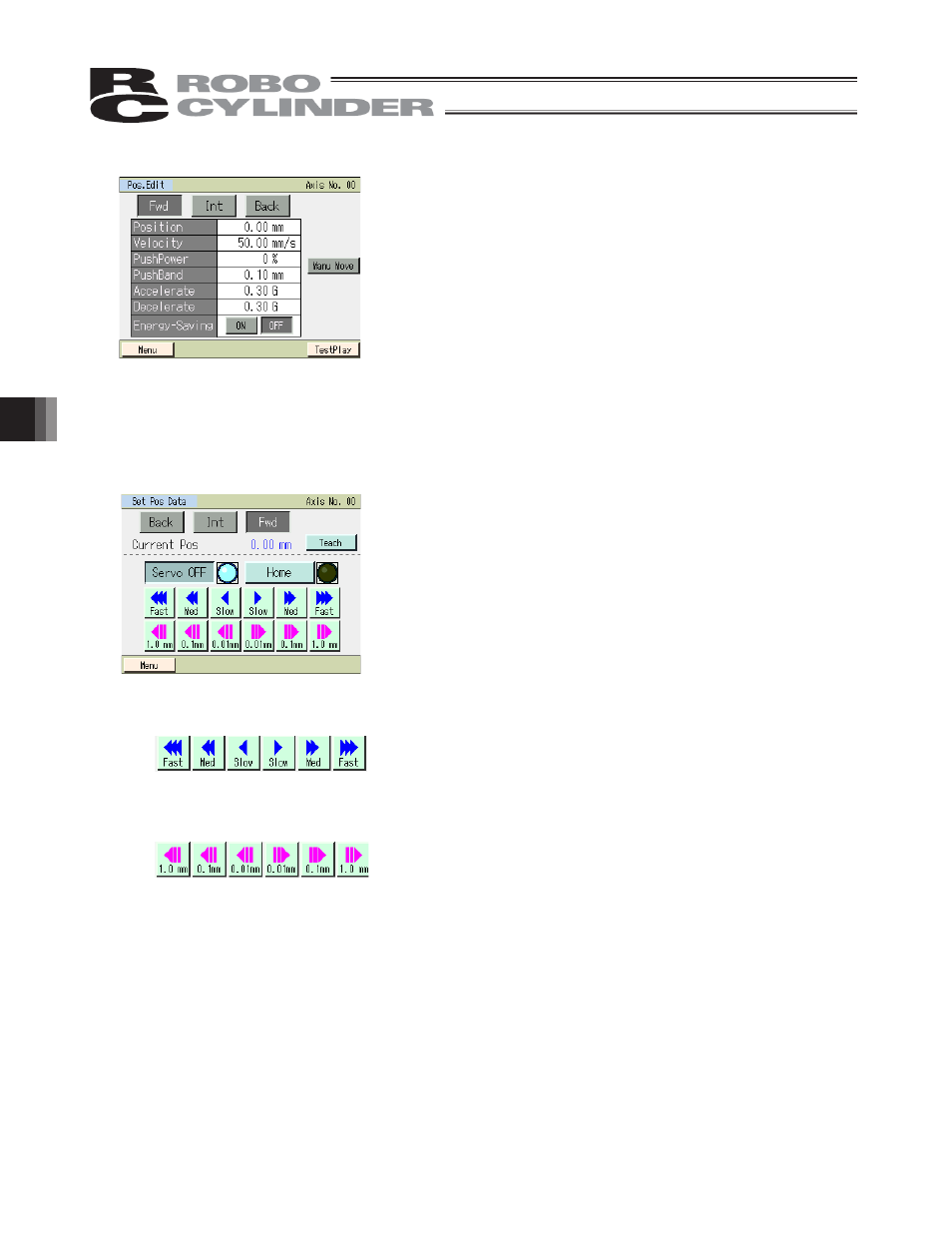

[2] Basic operation
Touch the value field of each setting item such as position.
When the numeric keypad is displayed, enter a desired value
and then touch [ENT].
Touch either of Start, End or Int and the screen changes to the
corresponding setting window for [Fwd], [Back] or [Int].
(Note) The positions must satisfy the following relationships: Home d Start position d Midway position d
End position
Touching [Jog] switches to jog operation.
[Manual axis operation (jogging/inching)]
You can load position data via manual axis operation (jogging/inching).
Operation on the manual axis operation (jogging/inching) screen
While any of these buttons is touched, the axis jogs in the
direction of the arrow. The axis moves at 1 mm/s in the low-
speed mode, 10 mm/s in the medium-speed mode, or 50 mm/s
in the high-speed mode.
Select one of the speed.
While any of these buttons is touched, the axis inches in the
direction of the arrow. Select 0.01 mm, 0.1 mm or 1.0 mm as the
inching distance.
x [Servo ON]
Touching [Servo ON] when the motor power (servo) is turned off
turns on the motor power (servo) and the { lamp will become lit.
Touching [Servo OFF] when the motor power (servo) is turned
on turns off the motor power (servo) and the { lamp will become
unlit.
x [HOME]
Touching [HOME] before the home return is completed causes
the axis to return home and the { lamp will become lit.
x
x
