6. Operation of SEP
Related Controllers
124

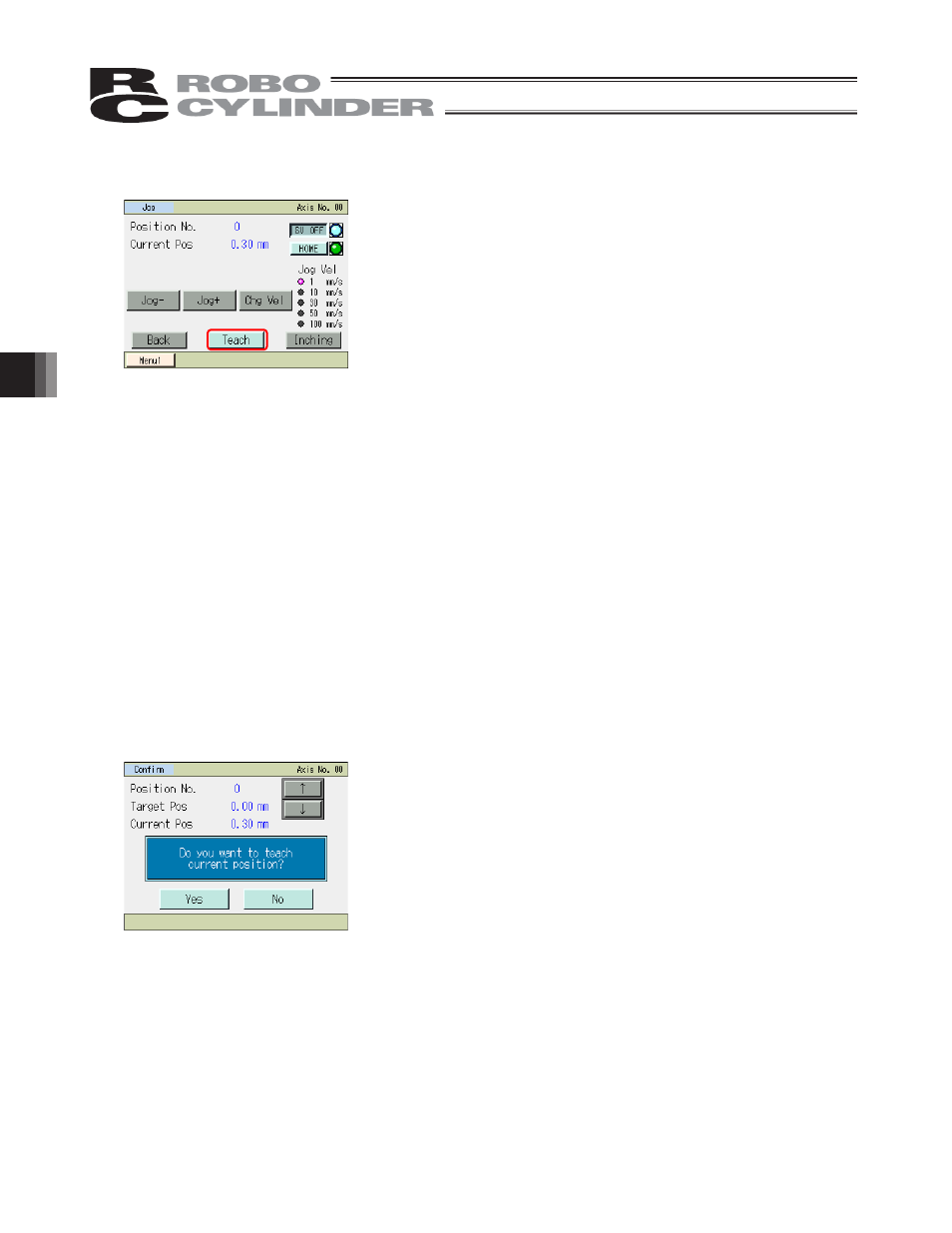

[Jog operation]
You can acquire position data via jogging operation.
Operation on the jog screen
x [Jog-], [Jog+] :The axis jogs while each button is touched. [Jog-] moves the axis in the negative
direction, while [Jog+] moves the axis in the positive direction.
x [SV ON] :Touching [SV ON] while the servo is off turns on the axis servo and { becomes lit.
Touching [SV OFF] while the servo is on turns off the axis servo and { becomes
unlit.
x [HOME] :Touching [HOME] while home return is not yet completed causes the axis to return
home and { becomes lit.
x [Chg Vel] :The jog speed changes in the order of 1, 10, 30, 50 and 100 mm/s every time [Chg
Vel] is touched.
x [Inching] :Touching [Inching] changes to the inching screen.
Position acquisition operation
Touch [Teach].A confirmation screen appears.
You can touch [n] or [p] to change the position number.
Touching [Yes] acquires the current position.
