PROGRAM STEPS
MILLPWR ®
Arc

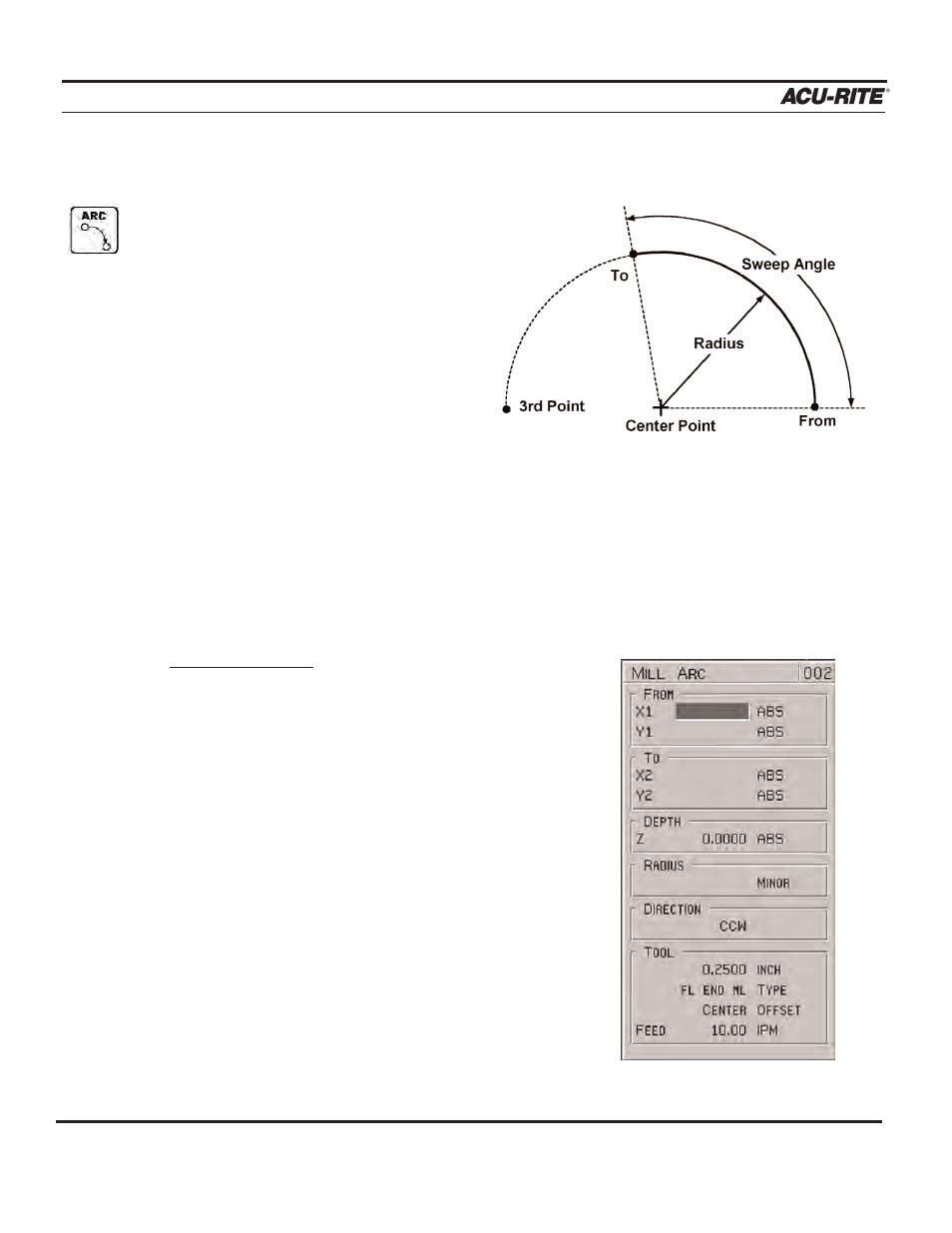

An arc can be defined several ways:
• With a from point, to point
and a radius
• With a from point, to point
and a center point
• With from, to, and 3rd points along
the arc
• With a from or to point, center point
and a sweep angle.
Choose a method based upon the information available from the print.
As you are programming, keep in mind that the arc's sweep angle is measured from the
X-axis.
To program an arc:
• Press the ARC key.
• Enter the beginning coordinates for the X-
and Y-axes in the “From” field.
• Enter the ending coordinates for the X-
and Y-axes in the “To” field.
• Enter a depth.
