PROGRAM STEPS
MILLPWR
®
Operation Manual
Frame
A circular frame is determined by its center point and radius. The direction will
determine if you are climb cutting or conventional cutting. The tool offset will deter-
mine if you are cutting an inside or outside frame.
To program a circular frame:
•
Press the
CIRCLE
key.
•
Press the
FRAME
softkey.
•
Enter the X- and Y-axes coordinates for the center
point.
•
Enter the depth.
•
Enter the radius.
•
For the direction, press the
CW
softkey for
clockwise or the
CCW
softkey for a counter-clock-
wise direction.
5-23

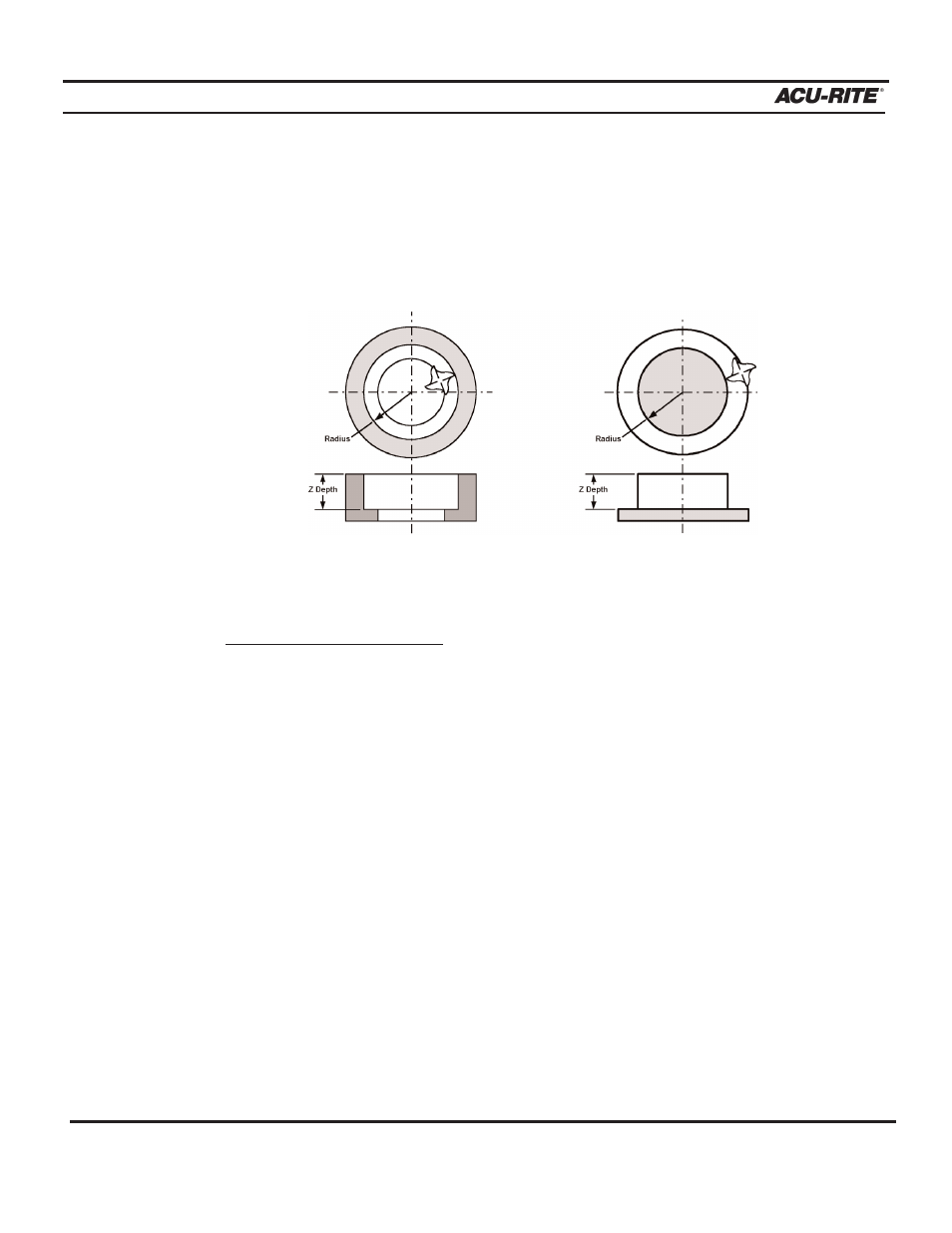

INSIDE
FRAME
OUTSIDE
FRAME
