CALCULATOR
MILLPWR ®

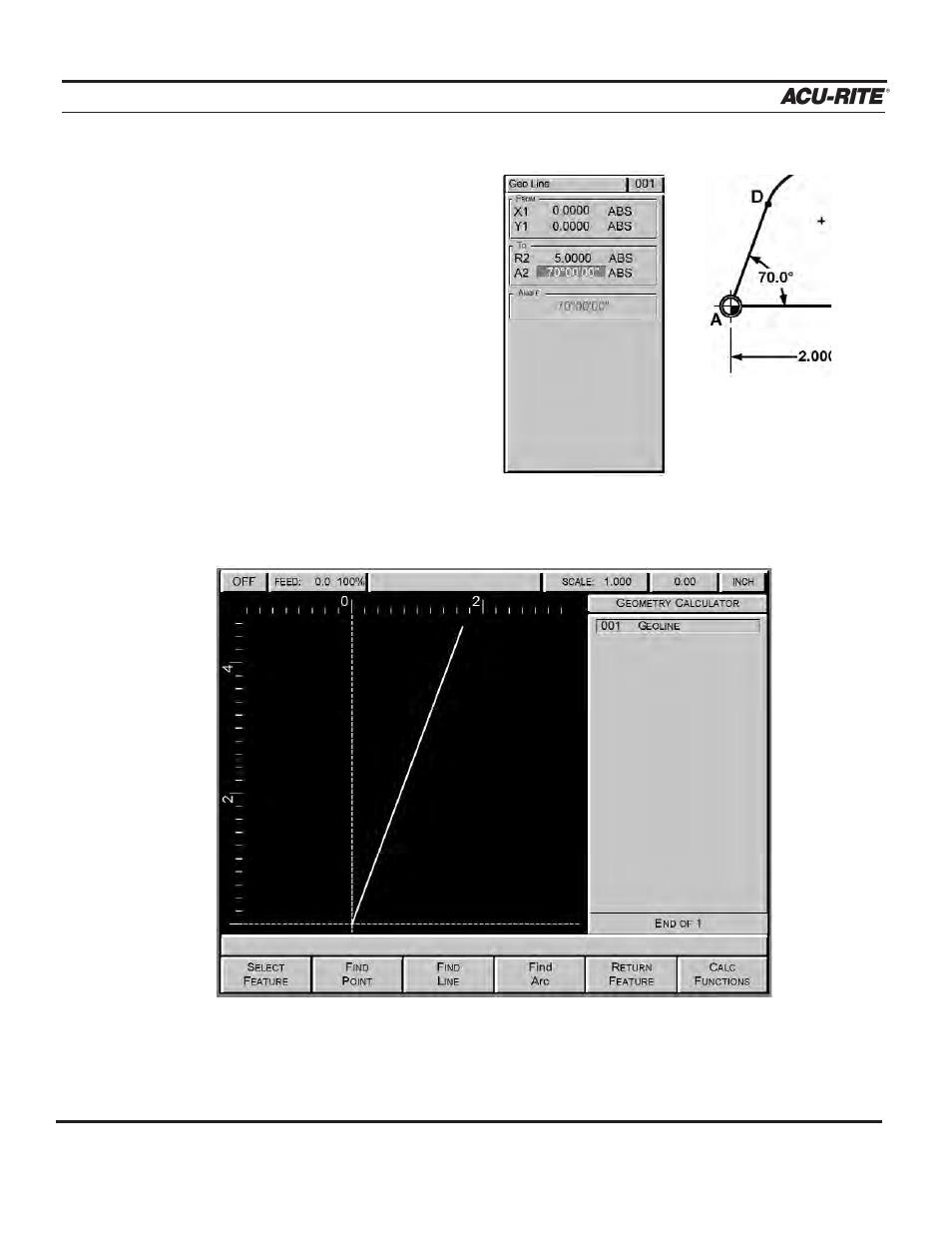

• The polar coordinates are R2
(radius) and A2 (angle). (Remember,
a polar coordinate is a position
defined by an angle and a radius.)
• If you don’t know the length of the
line, and GeoCalc doesn't need it.
Just guess and enter a radius of 5”.
• You know that the angle of the line
from datum is 70°.
• Press the USE key, and a line starting
at point A and traveling through
point D will appear.
Operation Manual 6-12
