PROGRAM STEPS
MILLPWR ®
Operation Manual
Line
Lines are defined by their “From” point (the point where
they begin) and “To” point (the point where they end).
There are two ways you can program a line:
• With four coordinates (X1, Y1, X2, Y2)
• With three of the coordinates above (X1, X2, Y2 or X1,
Y1, X2, etc.) and an angle
Keep in mind that the angle is measured from the line on
the X-axis and sweeps towards the adjacent line.
Choose a method based upon the information available from
the print.

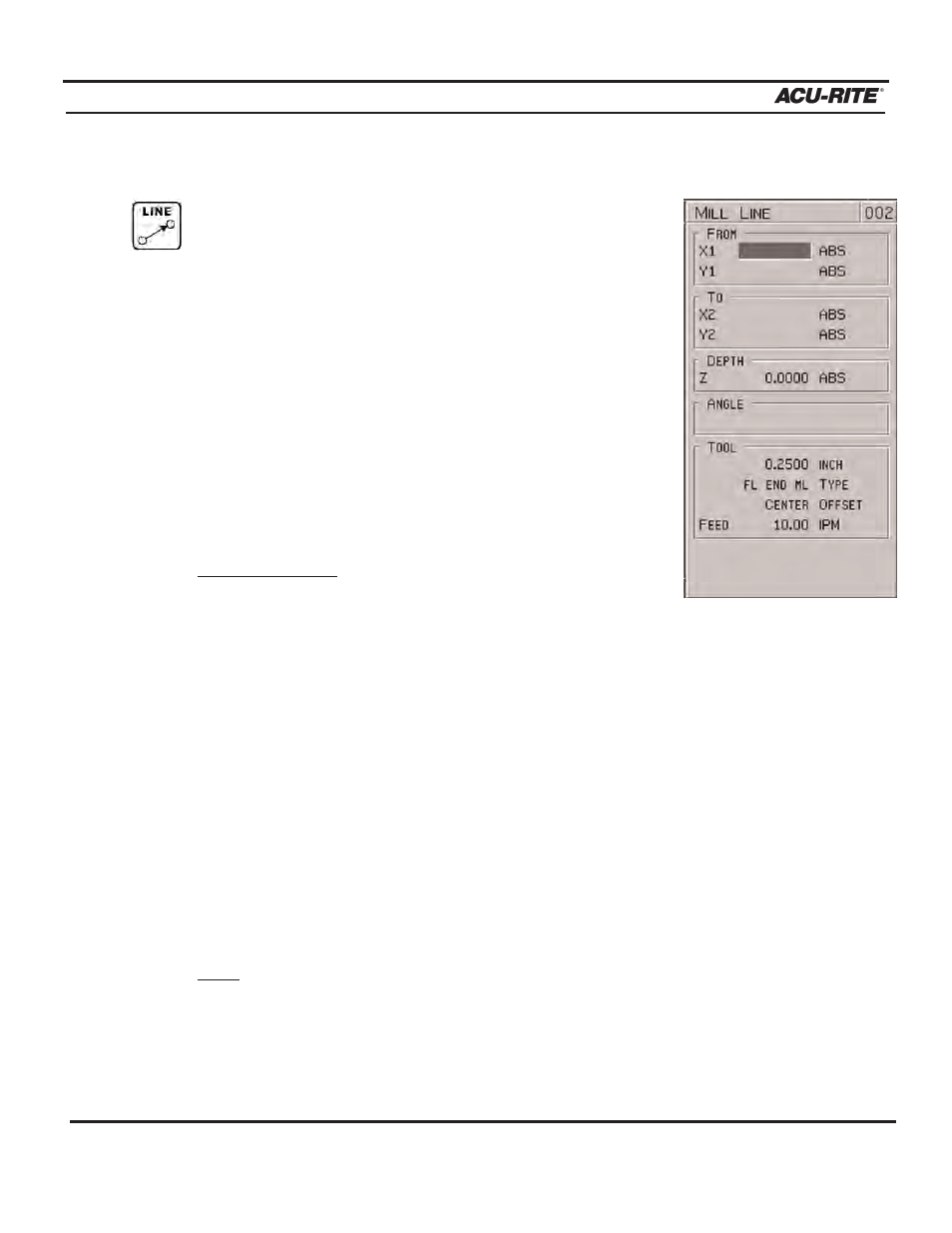

To program a line:
• Press the LINE key.
• Enter the beginning X- and/or Y-axes coordinates into the “From” field.
• Enter the ending X- and/or Y-axes coordinates into the “To” field.
• Enter a depth.
• If one of the X- or Y-axes fields above was left blank, enter an angle.
• Highlight the "Offset" field and press the LEFT , CENTER, or RIGHT softkey.
• Enter the feed rate.
• Press the USE key.
Note: If the tool size and type listed in the "Tool" field are incorrect, change the tool
settings before running the program (refer to Programming a Tool Step).
5-7
