CALCULATOR

MILLPWR

Using GeoCalc:

•

Press the

POS

LINE

ARC

key and enter the information that’s on the print. (Refer

to Program Steps for assistance.)

•

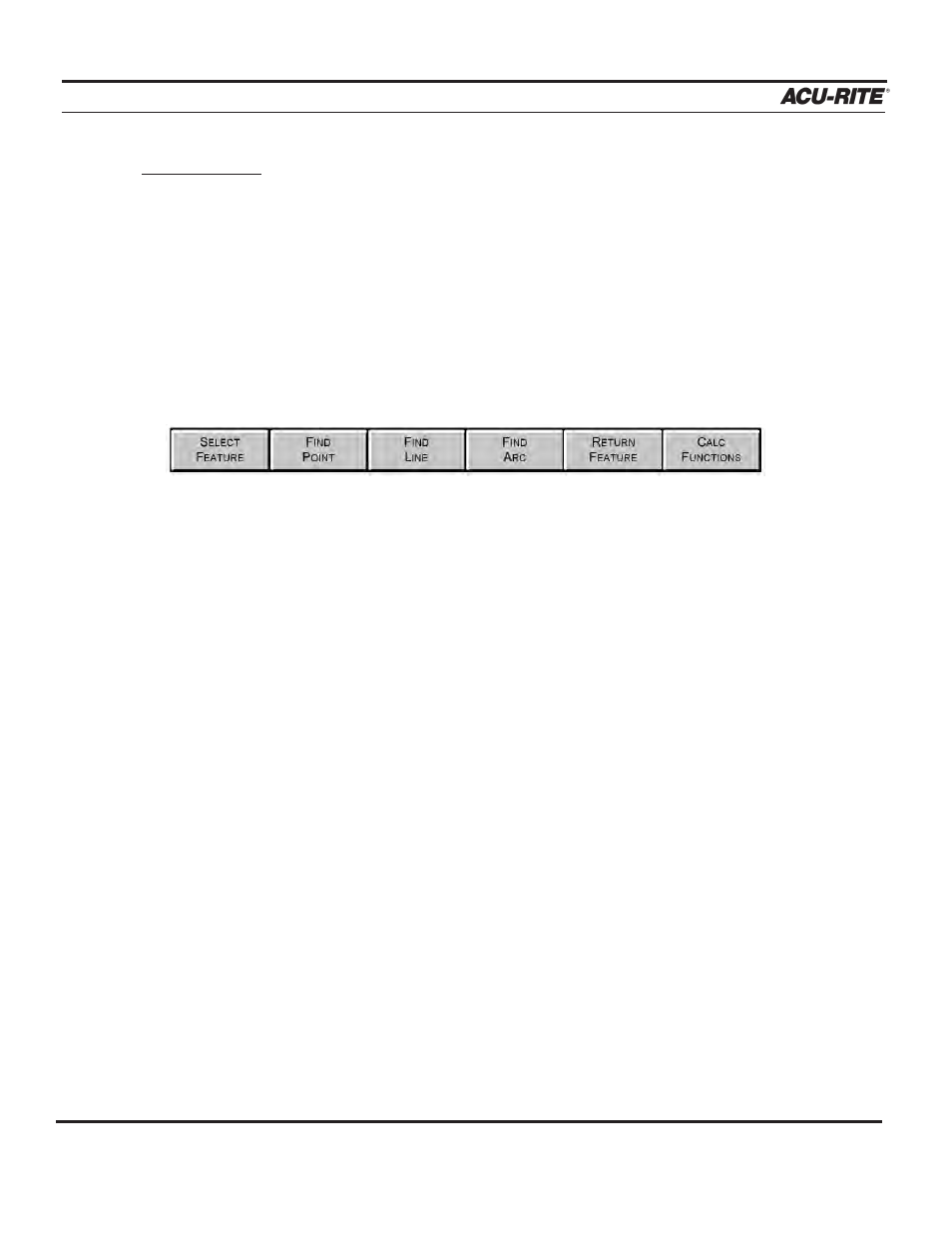

To find a line, point or arc, highlight the feature(s) you wish to use, and then press
the

SELECT FEATURE

softkey. An arrow will appear beside the feature(s) you have

selected. (Only two features can be selected at one time.)

•

Press the

FIND POINT

FIND LINE

FIND ARC

softkey—GeoCalc will automatically

find all the possible points, lines or arcs for the features that have been selected.

•

Either highlight the feature you wish to keep and press the

KEEP ONE

softkey OR

press the

KEEP ALL

softkey and retain all the features that are on the screen.

The

RETURN FEATURE

softkey transfers the object(s) that have been highlighted from

GeoCalc and into the program or milling function, freeing you from having to write the
information down and then entering it in number-by-number from the keypad.

Operation Manual

6-6
