PROGRAM STEPS
MILLPWR ®
Operation Manual 5-57
Step Functions Softkey

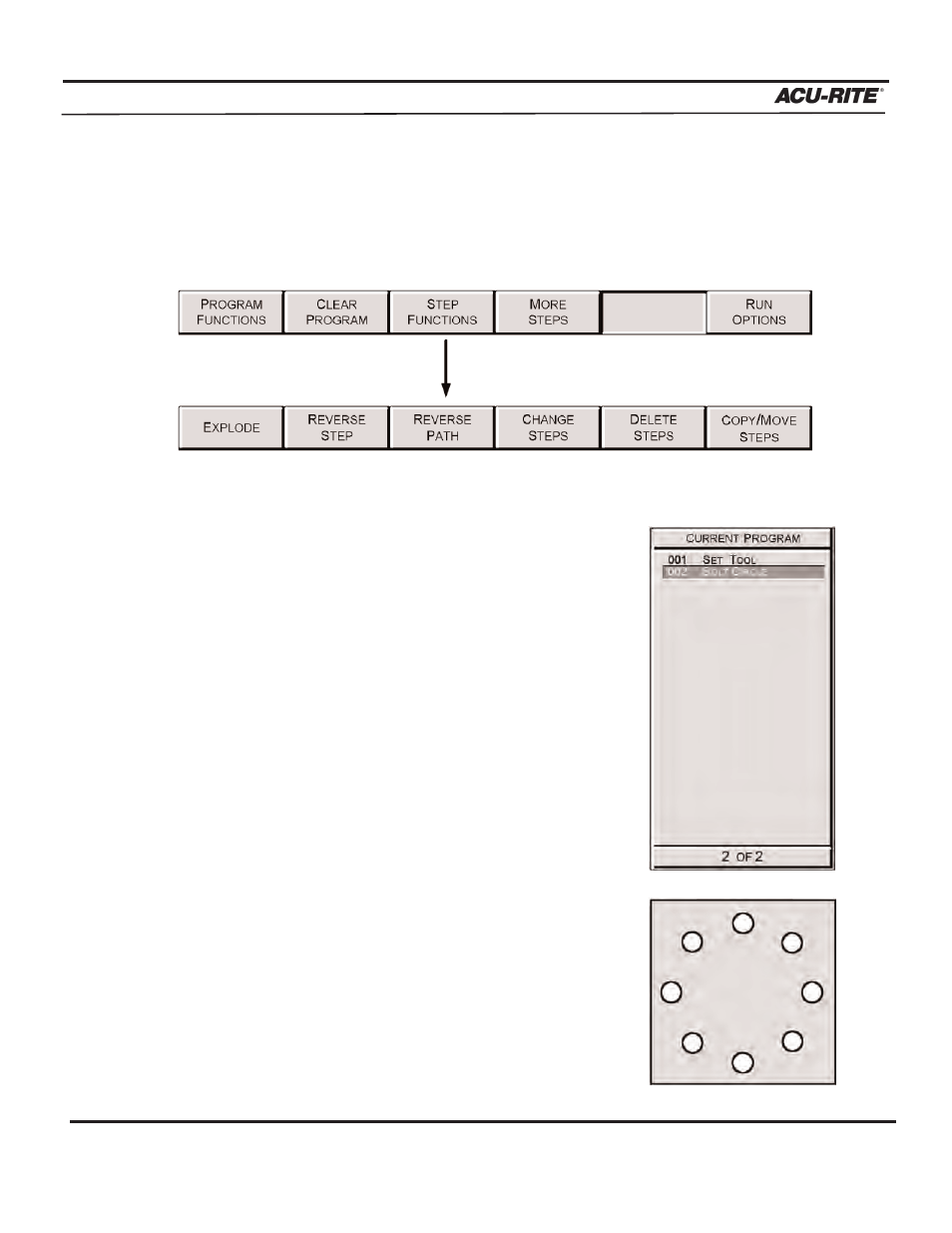

Additional functions are available from the PGM screen by pressing the STEP
FUNCTIONS softkey.
Explode
This feature will "explode" a program step into several,
more detailed steps. You can explode the following
functions:
• All "Holes" functions (row, frame, array and bolt
circle)
• Repeat, Mirror and Rotate
• Engrave
In the example on the right, is a programmed bolt-
hole circle with eight holes. Use the same basic pat-
tern, but with seven holes.
To edit the program, first highlight the “Bolt
Circle” step and then press the
EXPLODE softkey.
