DIP switches
The six DIP switches that you use to set the DS30 channels and offsets are found either on the
bottom of the module or on the rear, behind the power connector.
Figure 27 shows the possible
locations of the DIP switches on the modules.
For more information about setting DIP switches, refer to Chapter 8, “Installing media bay
modules,” on page 151 .

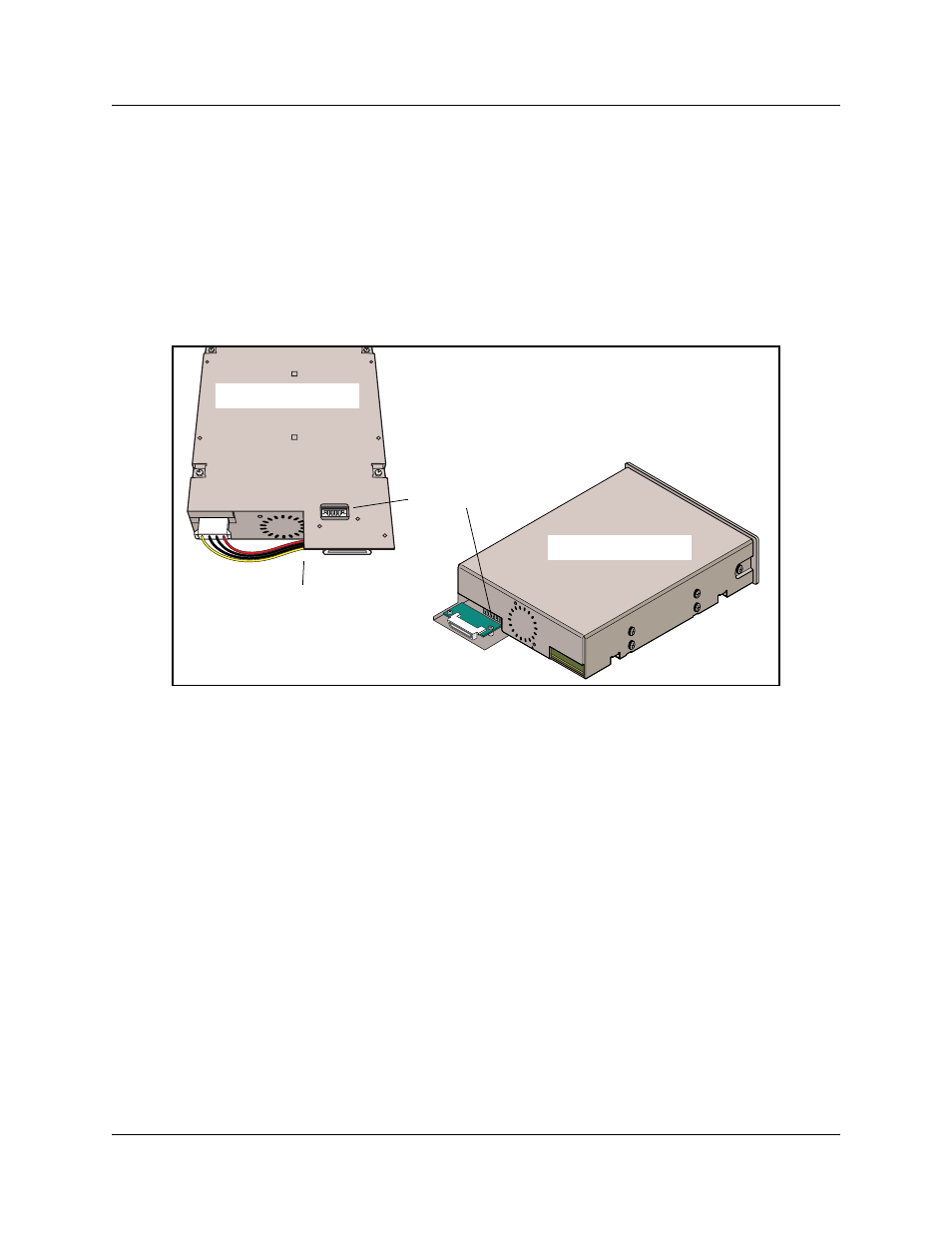

Figure 27 DIP switch positions on the modules
Rear of module
DIP switches
Underside of module
Top of module
