Appendix B Media bay module combinations 311
Installation and Maintenance Guide
DECT combinations
This section describes a system containing a DECT module, three BRI modules and two DSM 32s.
This configuration uses all the DS30 channels, with the exception of one offset.
Table 64 demonstrates this combination, including the switch settings for each module.
Note: DECT systems are not available for all profiles. Refer to “Mobility services by
region” on page 299 .

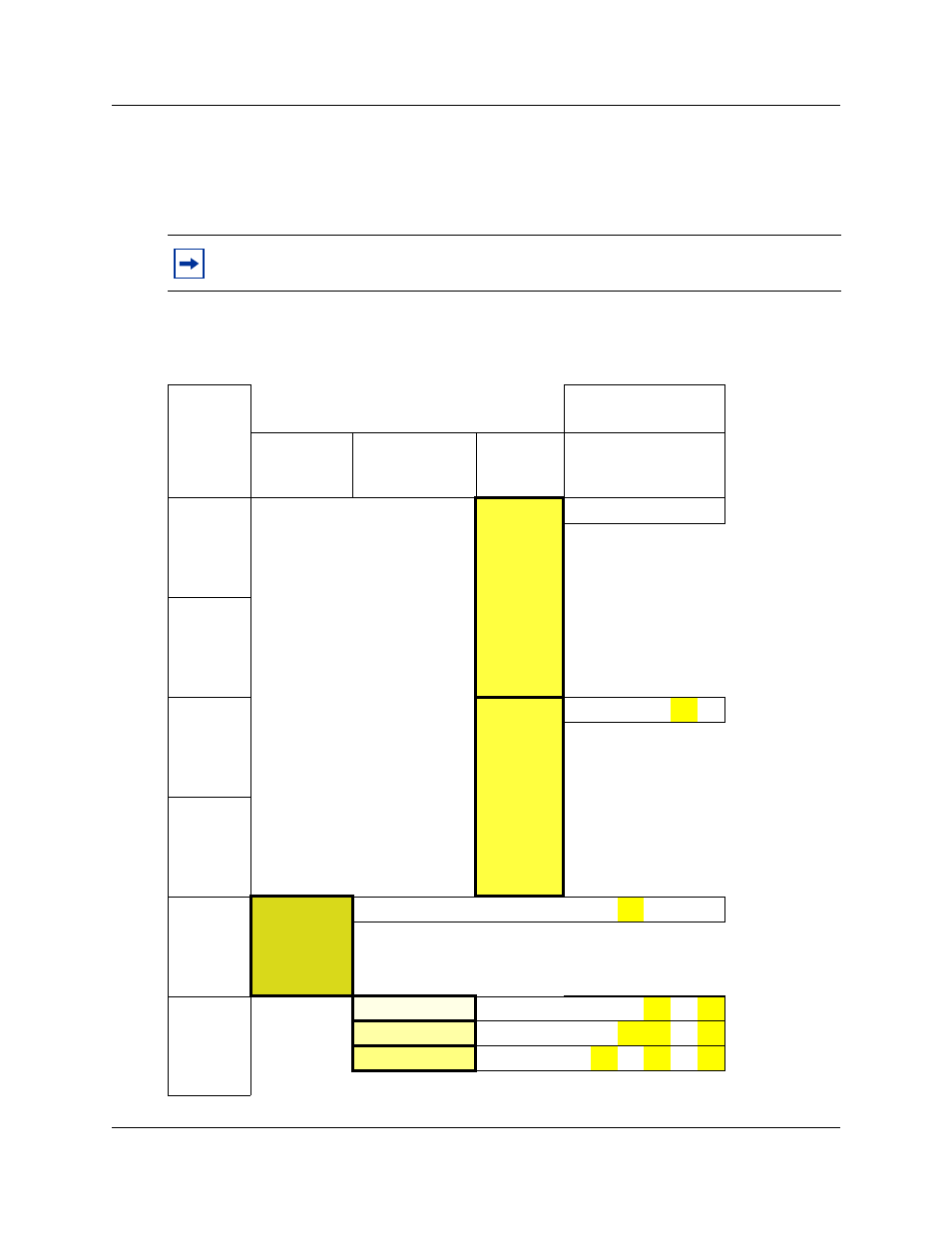

Table 64 Three BRI modules, two DSM 32s and 1 DECT module
DS30
channel #
Each heavily-outlined and shaded square
represents one module. Switch setting
1
DECT
Offset 0
3
BRI
Offset 0, 1 and 2
2
DSM 32s
Offset 0 1 2 3 4 5 6
2 0 on on on on on on
3
4 0 on on on on off on
5
6 0 DECT switch settings: on on off on on on
7 0 BRI settings on on on off on off
1 BRI settings on on off off on off
2 BRI settings on off on off on off
