Chapter 8
Installing media bay modules
After you set the switches on the media bay modules, you can install them in the BCM1000 or the
BCM1000e.
The BCM1000 accommodates a maximum of three media bay modules. If your system requires
more than three media bay modules, you need to connect a BCM1000e to the BCM1000.
Figure 52 provides an overview of the process for installing media bay modules.

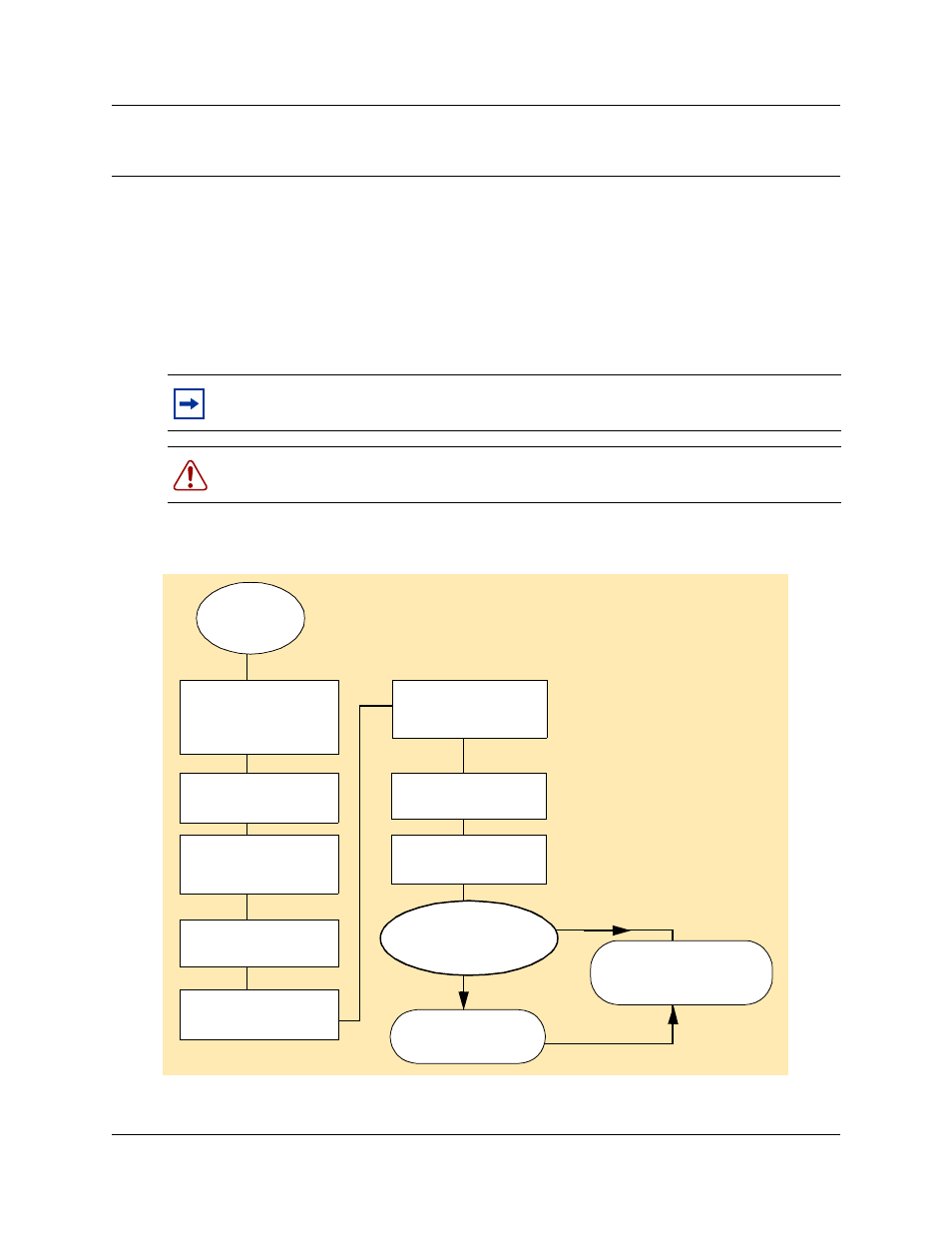

Figure 52 Process map: Installing a media bay module
Note: The number of media bay modules you can add varies, depending on the DS30
resources that are available. Refer to Figure 39 on page 117 .
Danger: The BCM1000 and BCM1000e must be correctly powered down before you
install or remove media bay modules.
Set module
DIP
switches
Disconnect cables
from the front of the
BCM1000 and
BCM1000e
Disconnect power from
both units
Remove front bezel
from the BCM1000 or
BCM1000e
Replace coverplate
Restore power to
BCM1000 and
BCM1000e
Reconnect all cables
Use the Unified
Manager to identify the
module to the system
Monitor LEDs for
power and status.
Install new module
Continue with system
initialization
no Is this installation
part of a new
system installation?
yes
