Chapter 9 Starting the system
163
Installation and Maintenance Guide
Connecting the data networking hardware
This section describes how to connect network cards to the BCM1000.
Connecting the cards
The data networking hardware is installed in the BCM1000 at the factory. All systems that use
remote data management have one LAN card. Some systems have a LAN and a WAN card. Some
systems can have two LAN cards. Some systems also have a modem card.
shows one of
four profiles available.

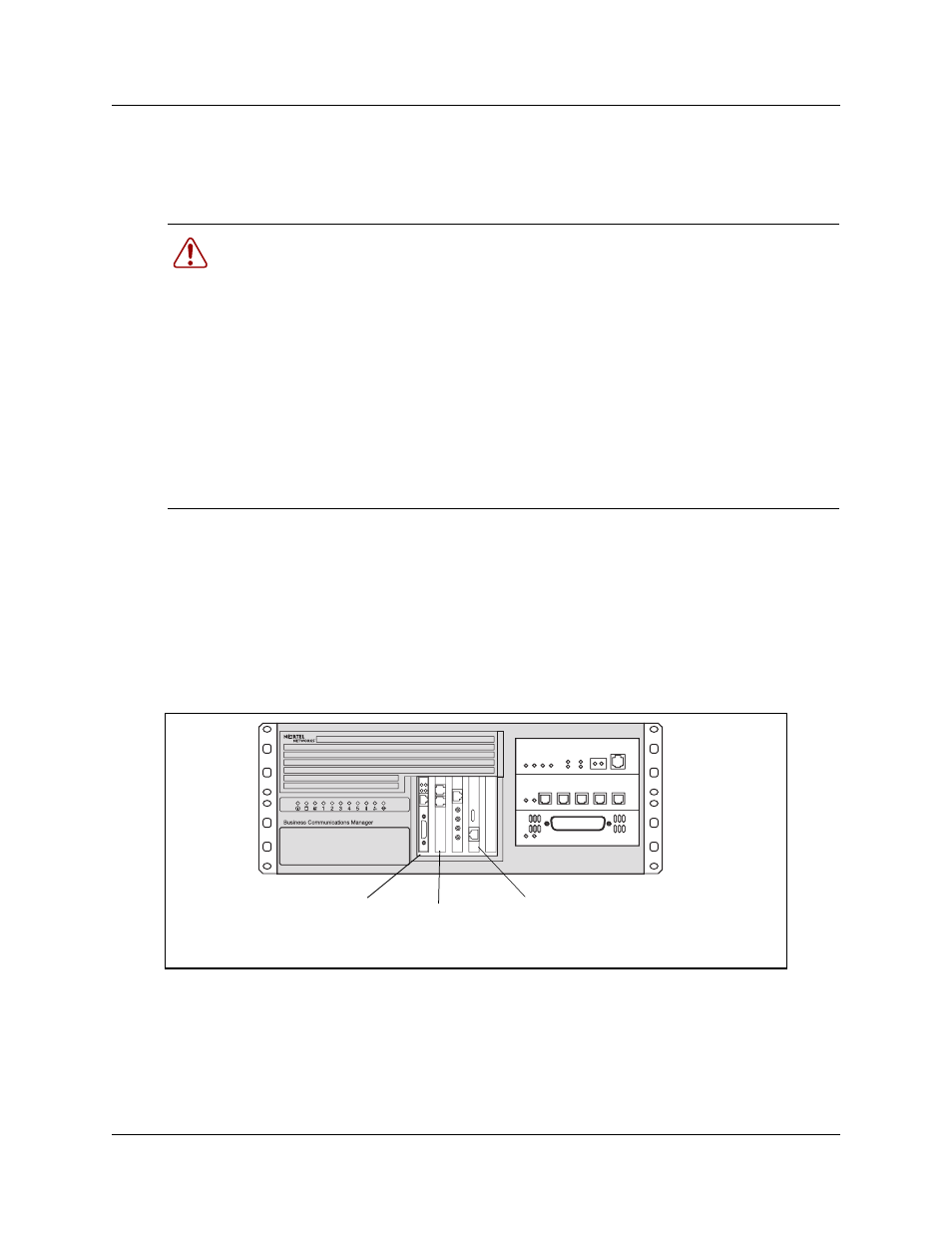

Figure 58
Locating the data cards on the BCM1000
Warning:
Check with your network administrator before you connect the BCM1000 base
unit to the network to ensure there are no IP address conflicts.
The default address for the BCM1000 system:
•
IP:
10.10.10.1
•
Subnet: 255.255.255.0
Warning:
If the default IP address would create a network conflict, you must change the
IP address of the BCM1000 before you connect any network connections.
To change the IP address outside of a network, you can use one of the following:
•
a terminal and a null modem cable
•
a computer and an ethernet crossover cable
“Using a null modem serial cable” on page 169
for detailed instructions about connecting to the base unit.
LAN card
Modem card
WAN card
Note:
This illustration shows a profile 1 data card setup.
Your system may not have all the cards indicated.
