Chapter 10 Wiring the modules 181
Installation and Maintenance Guide
Table 32 and Figure 67 provide the wiring scheme for the eight pairs that connect to the ASM.
3 Plug the female amphenol connector into the interface on the front of the module.
41 Yellow-Blue X16 16 32
16 Blue-Yellow X16 16 32
42-40
17-25
no connections
Table 32 ASM wiring chart
Pin Wire color Port Set

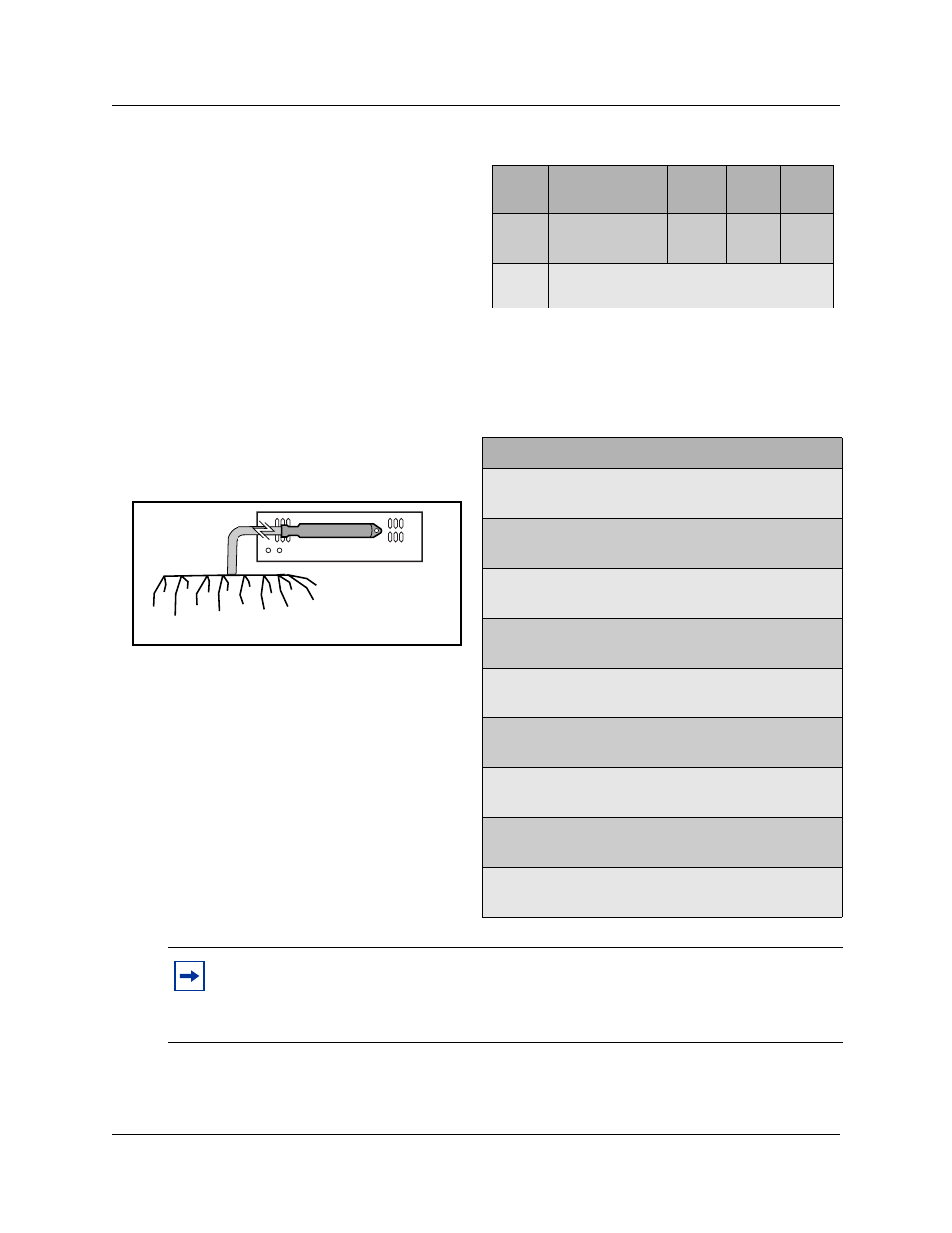

Figure 67 Wiring for an ASM 8 26 White-Blue X01 1
1 Blue-White X01 1
27 White-Orange X02 2
2 Orange-White X02 2
28 White-Green X03 3
3 Green-White X03 3
29 White-Brown X04 4
4 Brown-White X04 4
30 White-Slate X05 5
5 Slate-White X05 5
31 Red-Blue X06 6
6 Blue-Red X06 6
32 Red-Orange X07 7
7 Orange-Red X07 7
33 Red-Green X08 8
8 Green-Red X08 8
34-50 no connection
9-25
Note: Refer to “Line and extension numbers for specific modules” on page 141 to see the
relationship between the DS30 channel number and the DNs. Configuration information is
included in the chapters on setting up modules and DNs in the Business Communications
Manager Programming Operations Guide.
