230 Chapter 14 Installing optional telephony equipment
P0607659 02
Connecting the external music source
Follow these steps to connect the external music source to the BCM1000 jack.
1 Connect the miniature jack of the music source output to the music-on-hold input on the MSC.
Refer to
Figure 94 .
2 Adjust the volume of the music source to a comfortable level by activating Background Music
and adjusting the volume at the music source.
External music source programming
You must enable Music for callers on Hold and for Background Music through programming.
Refer to the Business Communications Manager Programming Operations Guide for more details.

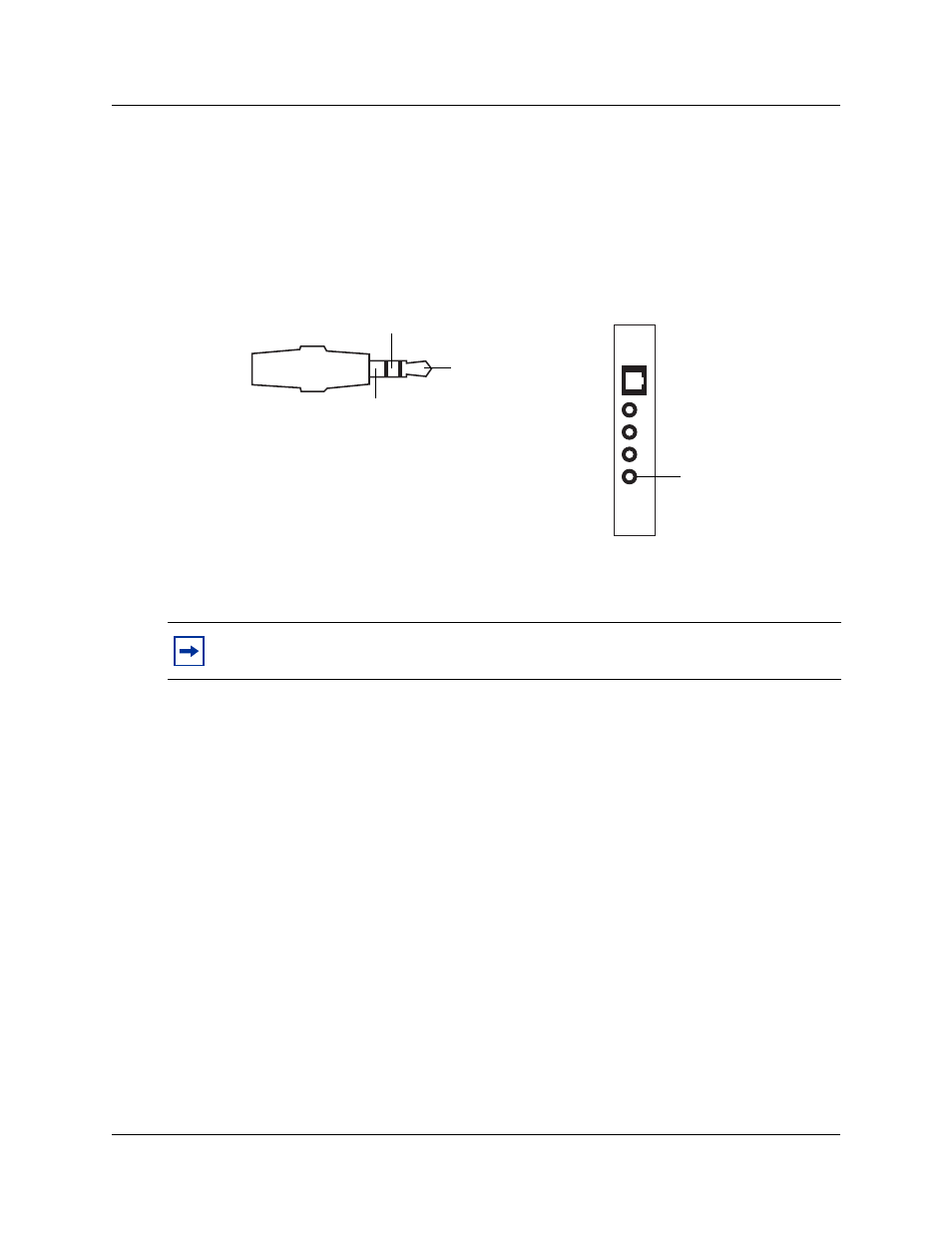

Figure 94 Music-on-hold jack
Music jack MSC faceplate
Tip : Music signal
Ring : No connection
Sleeve : Ground
TIP: You can adjust the Background Music volume at every telephone.
Tip
Ring
Sleeve
Music-on-hold
input
