126 Chapter 5 Installing the BCM1000
P0607659 02

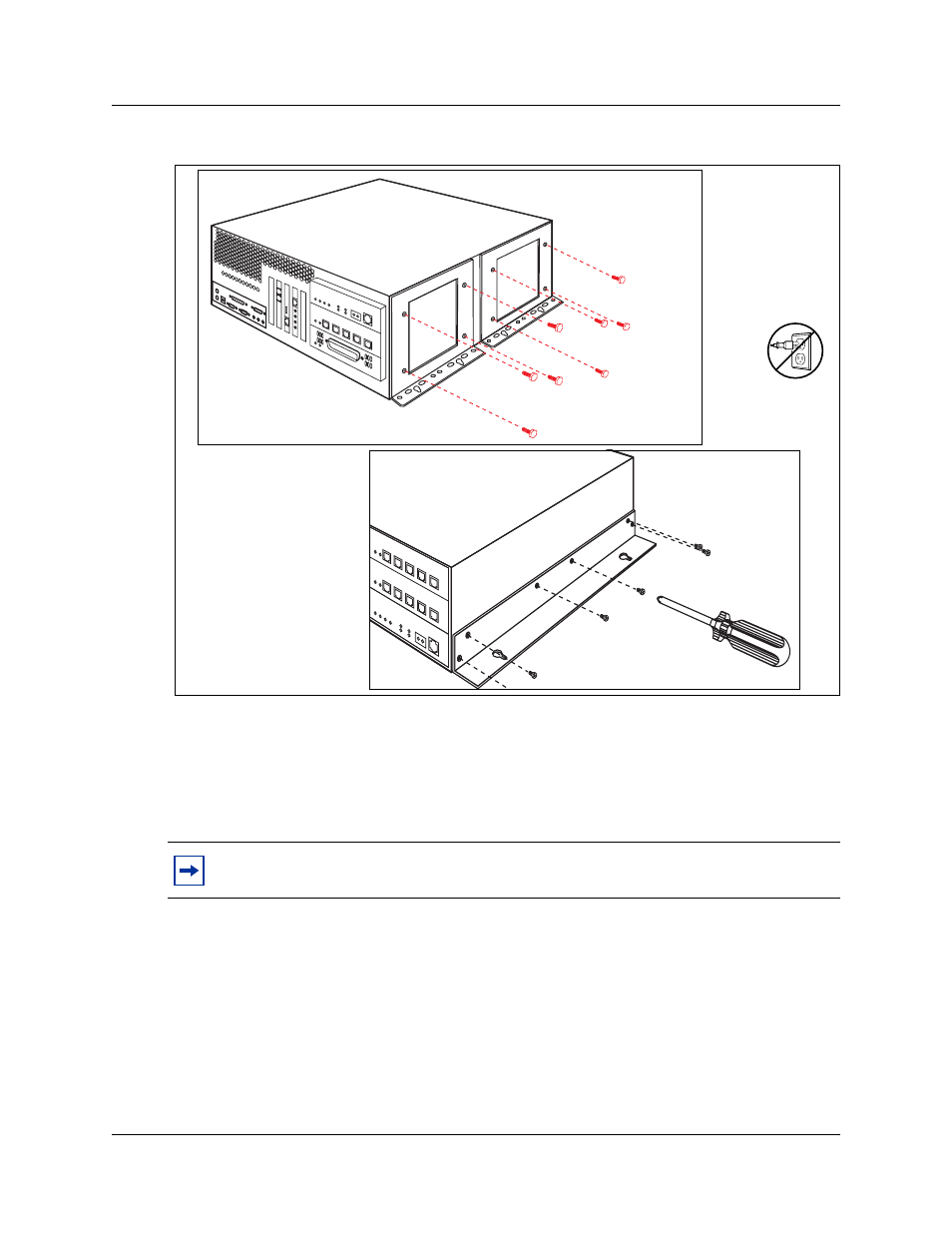

Figure 42 Attaching the mounting brackets to the BCM1000
3 Install the 2 cm (3/4 in.) plywood backboard on the wall.
4 Insert two #10 x 2.5 cm (#10 x 1 in.) round-head wood screws in the backboard. The screws
must be 34.5 cm (13.5 in.) apart and level.
Do not tighten the screws heads against the backboard. Leave approximately 0.5 cm (0.25 in.)
of the screw out of the backboard.
5 Hang the base unit on the two screws, using the outer slotted holes.
Make sure the base unit is level, the mounting brackets are against the wall, and the front cover
is facing left or right. Refer to
Figure 43 .
Note: Position the screws to leave enough space beside the BCM1000 (23 cm or 9 in.) to
insert and remove the media bay modules.
Wall mount brackets
Rack mount brackets
