GATM switch settings
There are two sets of DIP switches located on the rear of the GATM module. The left set allows you to
determine the DS30 bus and offset for the module.
The right set of switches allows you to manually configure a country profile operation, which is required
for earlier versions of software. However, BCM 3.5 software supports downloadable firmware for the
module for the North America, Taiwan, UK and Australia telephone profiles. To allow the GATM to
download the parameters for these countries and to allow for firmware upgrades, set all the country DIP
switches to 0 (zero/off) (factory default). The MSC telephony profile you choose must support the
appropriate country setting to ensure that the correct firmware installs.
The table below lists the possible DIP switch settings for the Mode and Country DIP switches.
Table 2 Global Analog Trunk Module DIP switch settings
Mode select DIP switch settings
Country select DIP switch settings
DS30
bus #
Offsets Offset positions
DIP switch settings
GATM4
Offsets
0, 1, 2, 3
GATM8
Offsets
0, 1, 2
1
2
3
(offset)
4
5
6
(DS30 #)
2
0
0
0
on on on on on on
1 2
3
4
5
6
7
8
Switch Function
1
1
1
on on off on on on
Reserved
2
2
2
on off on on on on
Reserved
3
3
on off off on on on
Reserved
3
0
0
0
on on on on on off
Reserved
1
1
1
on on off on on off
Reserved
2
2
2
on off on on on off
Country 3
3
3
on off off on on off
Country 2
4
0
0
0
on on on on off on
Country 1
1
1
1
on on off on off on
2
2
2
on off on on off on
Setting for automatic downloads (all countries)
3
3
on off off on off on
off off off off off off off off Download based on profile
5
0
0
0
on on on on off off
Manual settings (pre-BCM 3.5 systems)
1
1
1
on on off on off off
off off off off off off off on North America (600 ohms)
2
2
2
on off on on off off
off off off off off off on off Taiwan
3
3
on off off on off off
off off off off off off on on Australia
6
0
0
0
on on on off on on
off off off off off on off off United Kingdom
1
1
1
on on off off on on
off off off off off on off on North America (900 ohms)
2
2
2
on off on off on on
3
3
on off off off on on

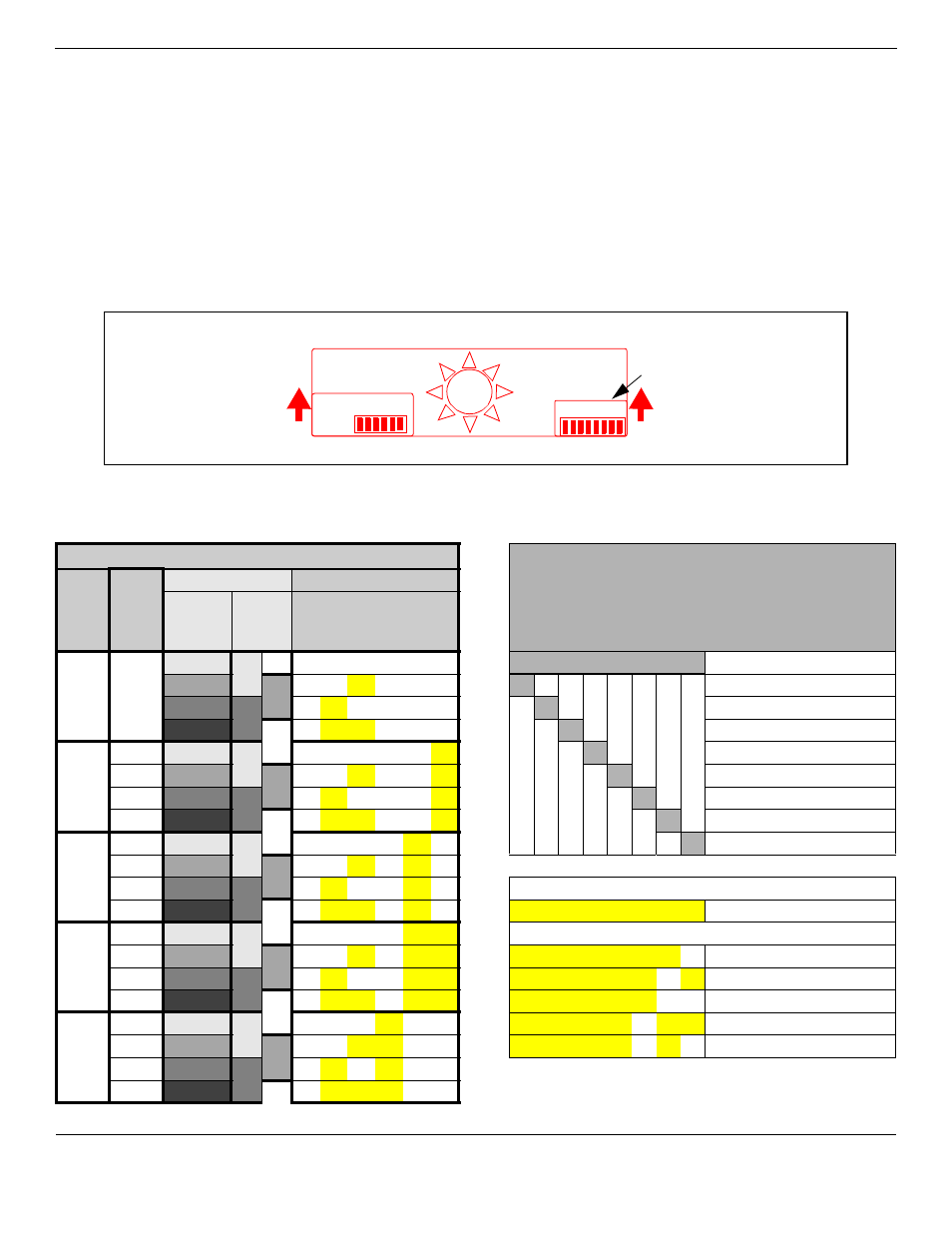

1 2 3 4 5 6
ON
Mode select
Country select
ON
1 2 3 4 5 6 7 8
Rear of GATM
For BCM 3.5 software,
ensure all switches
are off
