Page 258: Raid board led states
258
Chapter 17 Replacing the hard disk
P0607659 02
RAID board LEDs
The front end of the board fits into the card slot that is closest to the media bay modules on the
BCM1000. The front panel of the board contains a number of LEDs that indicate the status of the
RAID board and the current connection with the hard drives. Refer to
and
.

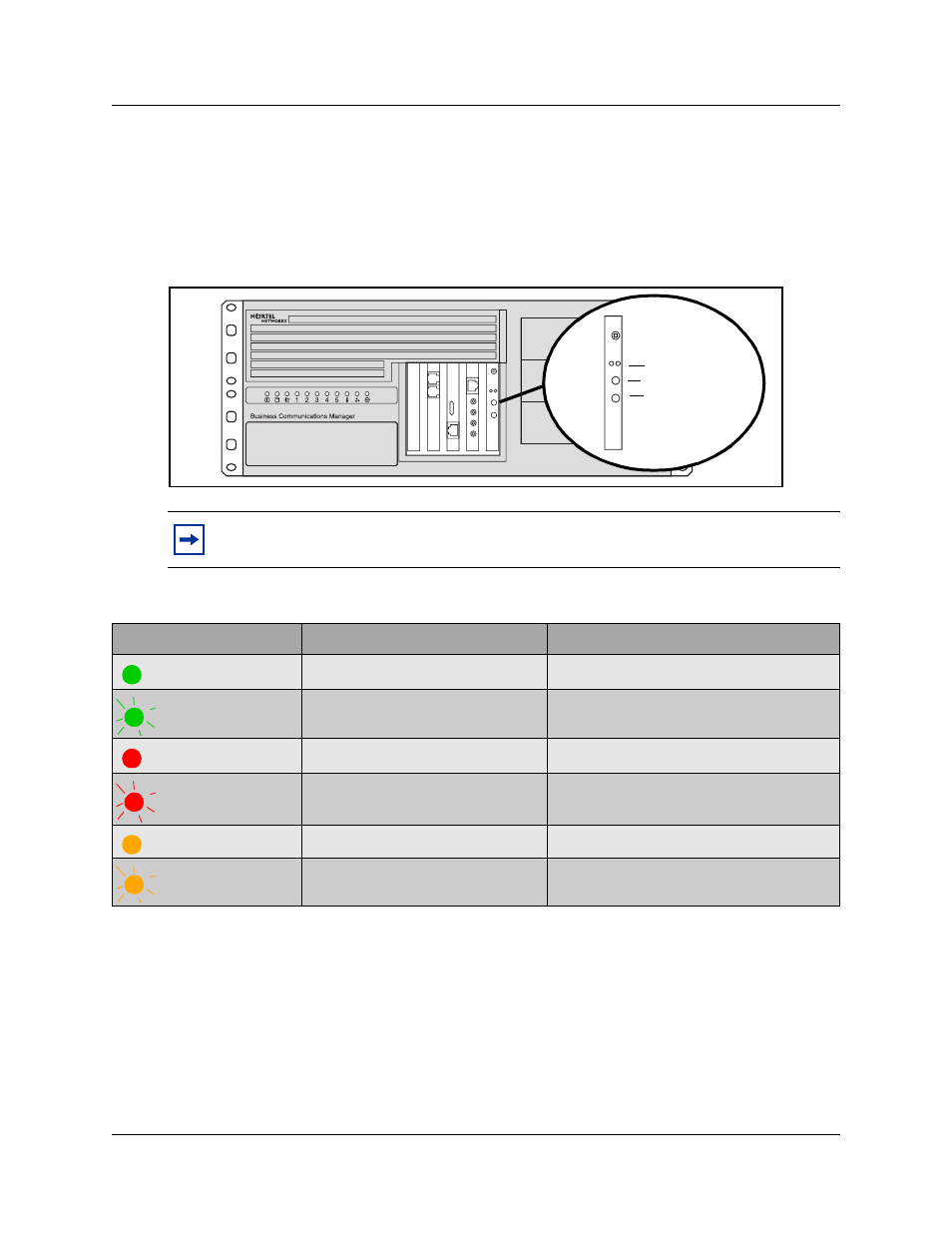

Figure 118
RAID board LEDs
Note:
The BCM1000 does not use the Slave channel on the RAID board, therefore, the
Slave Status LED will always remain solid red.
Table 44
RAID board LED states
LED state
Primary and Mirror LEDs
Status LEDs
Solid Green
Drive installed on the current channel. Drives are in mirror mode, data is identical.
Flashing Green
N/A
Drives may not be identical.
Solid Red
Drive not installed.
Drives are not in mirror mode.
Flashing Red
The channel is marked as bad.
Copy/Compare in progress.
Solid Orange
Channel activity (read/write).
Copy/Compare in progress (under windows).
Flashing Orange
Scanning the channel for drives.
N/A
Status
Mirrored hard disk
Primary hard disk
