95

CHAPTER 5. PERIPHERAL HARDWARE FUNCTIONS

(2)

SBI definition

The SBI serial data format and the meaning of the signals used are explained in the following section. Serial data

transmitted via the SBI is classified into three types: Commands, addresses and data. Serial data forms a frame with

the configuration shown below.

Address, command and data transfer timing is shown in Fig. 5-33.

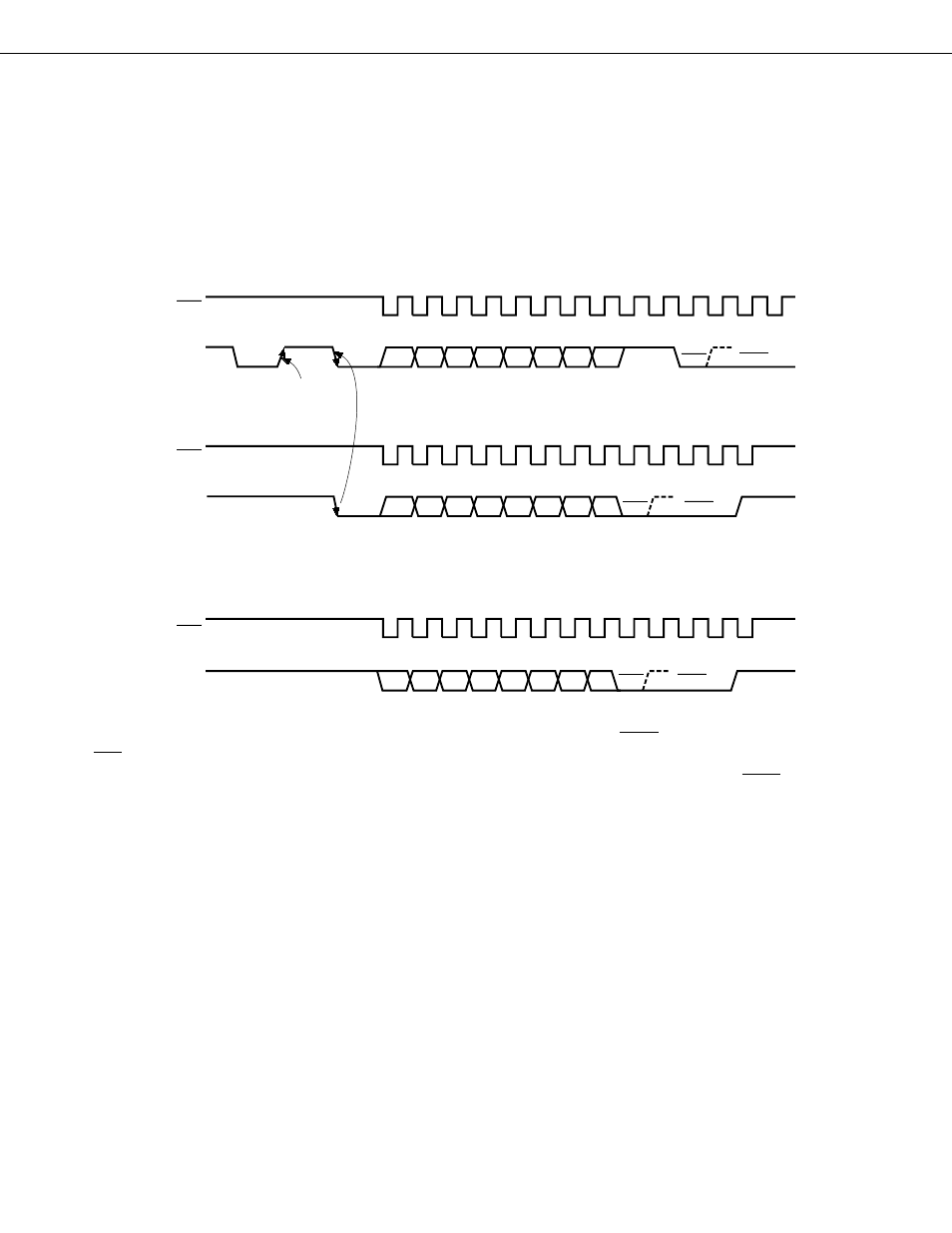

Fig. 5-33 SBI Transfer Timing

The bus release signal and command signal are output by the master. The BUSY signal is output by the slave.

ACK can be output by either the master or slave (normally output by the 8-bit data receiver).

The serial clock is output by the master continuously from the start of an 8-bit data transfer until BUSY is released.

Address Transfer

SCK

SB0

SCK

Bus Release
Signal

Command Transfer

Command Signal

Data Transfer

SCK

SB0

SB0

8

9

A7

A0

C7

C0

D7

D0

9

9

8

BUSY

ACK

BUSY

READY

ACK

BUSY

READY

ACK
