CHAPTER 5. PERIPHERAL HARDWARE FUNCTIONS

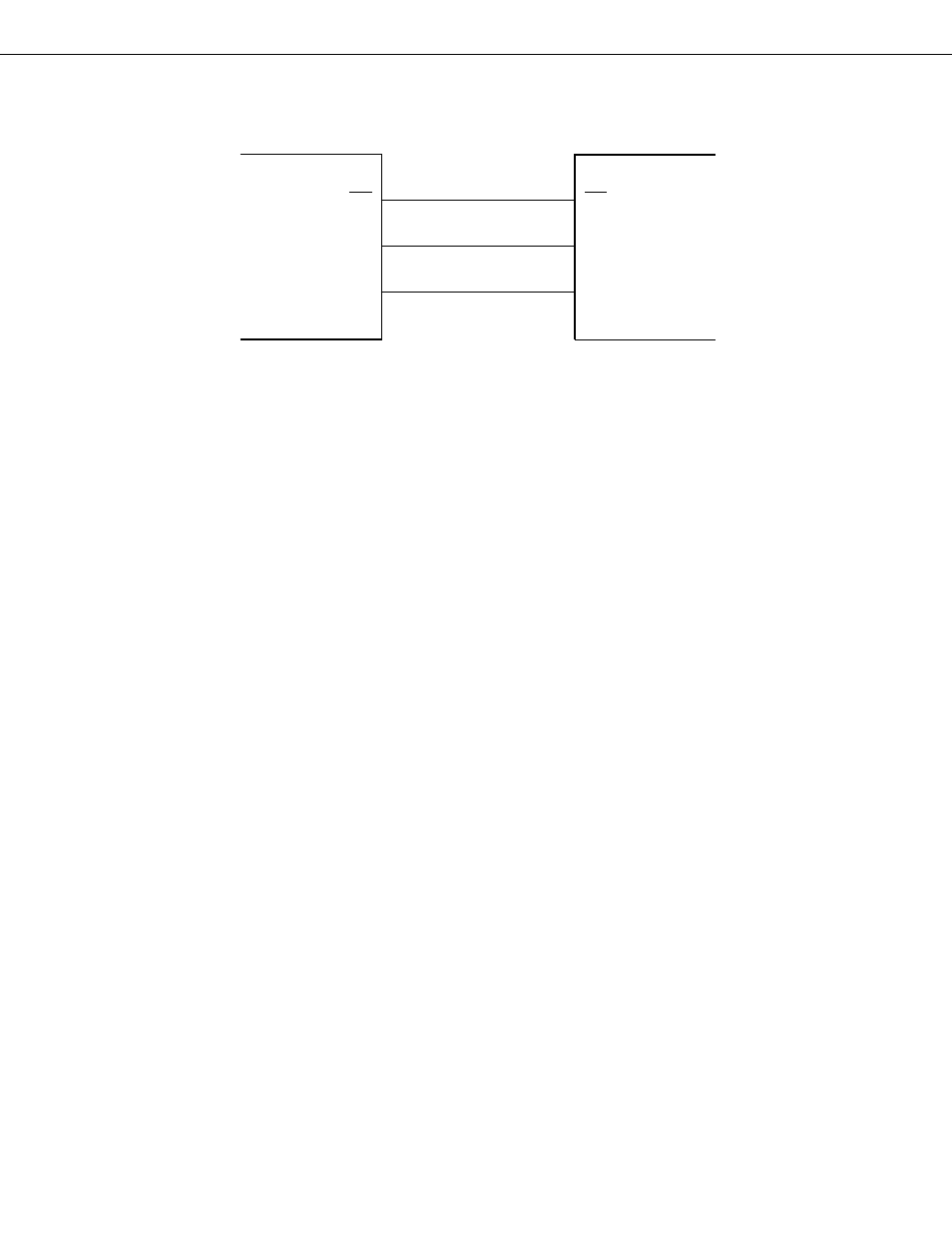

(b) To transmit/receive MSB-first data using an external clock (slave operation).
➤
➤
➤
P01/SCK
µ
PD75402A
SI
SO/SB0
SCK
SO
SI
Other Microcomputer
Main routine
MOV XA, #80H
MOV CSIM, XA ; Serial operation stopped, external clock specification
MOV XA, TDATA
MOV SIO, XA ; Transfer data setting & start of transfer
EI IECSI
EI
Interrupt routine
MOV XA, TDATA
XCH XA, SIO ; Receive data
÷
send data & start of transfer
MOV RDATA, XA ; Receive data save
RETI
