Page 52: Replacing the transfer roller -15

Main Unit Field Service
Periodic Check
2-15
II Main
tena
nce
1.6
Replacing Units
1.6.1
Replacing the Transfer Roller

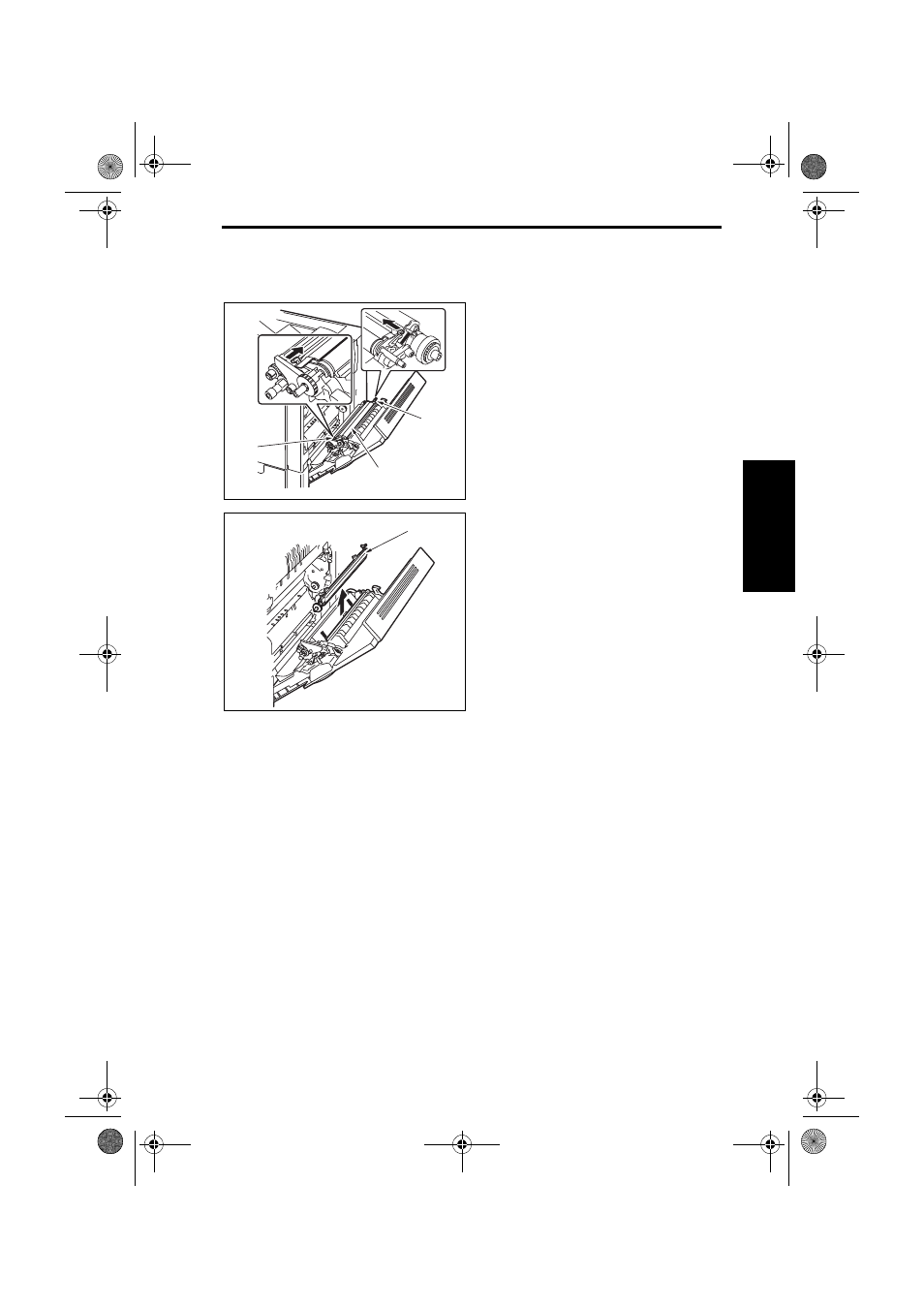

A. Replacement Procedure
1.
Open the Right Door.
2.
Press the locks [2] located at the
front and rear ends of the Transfer
Roller [1] inward to unlock the Trans-
fer Roller [1].
3.
Holding the levers, remove the
Transfer Roller [3].
4.
To reinstall, reverse the order of
removal.
5.
Replacing the Ozone Filter.
☞ 2-10
6.
From the Menu, select ENGINE
→
ENGINE SERVICE
→ RESET
COUNTER TRANSFER ROLLER.
Execute this function to reset the
Transfer Unit counter value. (magi-
color 5430 DL/5440 DL)
☞ For details, see “III. Adjustment/
Setting.”
7.
From the Menu, select From the
Menu, select QUALITY MENU
→
SUPPLIES
→ REPLACE → TRANS.
ROLLER. Execute this function to
reset the Transfer Unit counter value.
(magicolor 5450)
☞ For details, see “III. Adjustment/
Setting.”
8.
From the Menu, select ENGINE
→
ENGINE SERVICE
→ COLOR CAR-
IBRATION and execute this function.
(magicolor 5430 DL/5440 DL)
☞ For details, see “III. Adjustment/
Setting.”
9.
From the Menu, select QUALITY
MENU
→ CARIBRATION → AIDC
PROCESS and execute this func-
tion. (magicolor 5450)
☞ For details, see “III. Adjustment/Set-
ting.”
4138fs2513c0
[2]
[2]
[1]
4138fs2514c0
[3]
