Duplex Option Field Service Ver. 2.0 April 2005 Other
2-5
II Main
tena
nce

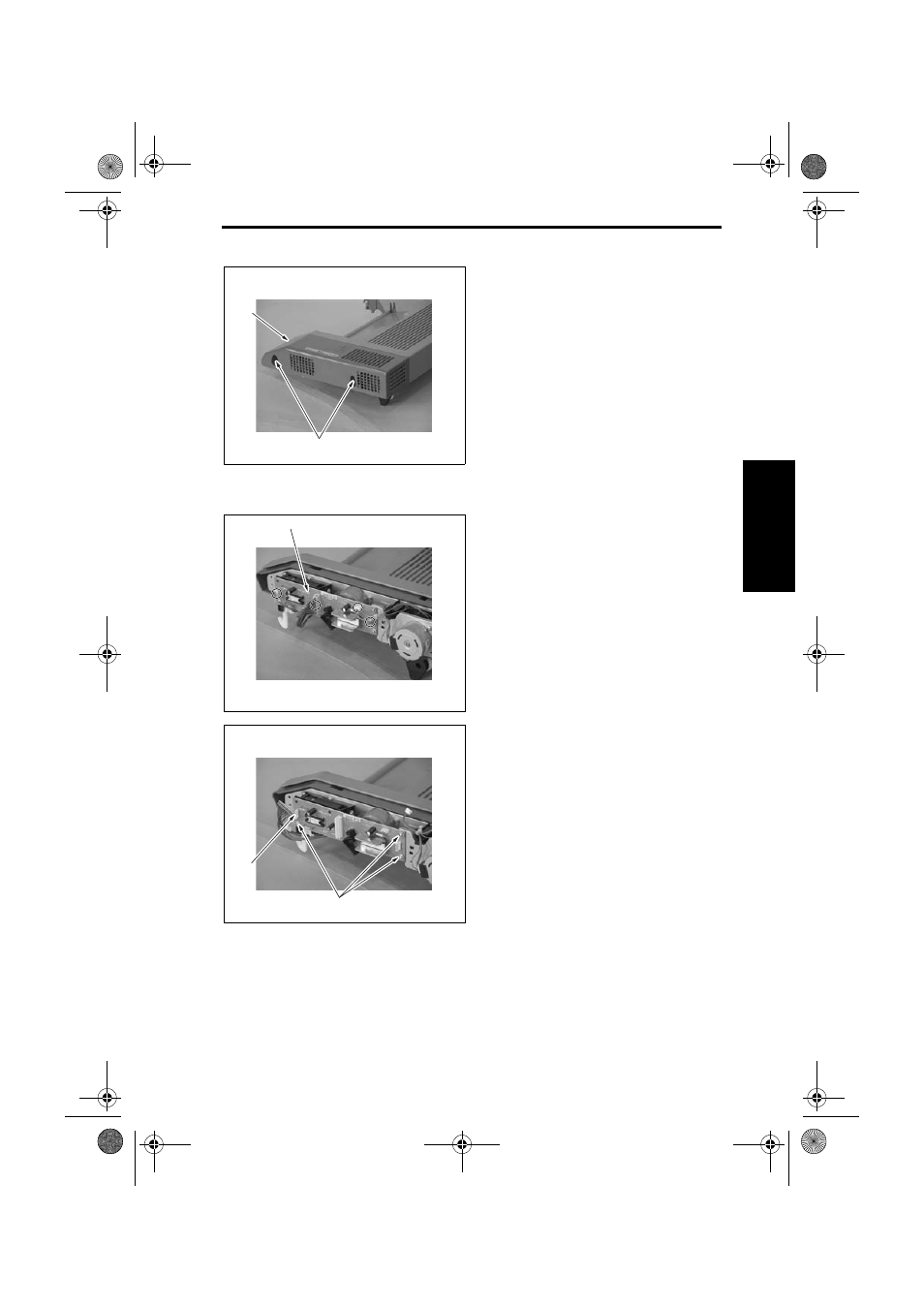

2.3.2 Right cover
1. Remove the Duplex Option.
☞ 2-4
2.
Remove two screws and the Right
Cover [2].
2.3.3 Duplex Board (PWB-E DU)
1. Remove the Right Cover.
☞ 2-5
2.
Disconnect all connectors from the
Duplex Board [1].
3. Remove three screws [2] and the
Duplex Board [3].
[1]
[2]
4538fs2001c0
[1]
4538fs2002c1
[2]
[3]
4538fs2003c0
