Lower Feeder Unit Field Service Ver. 2.0 April 2005 Jam Display
4-1
IV
T
roub
lshoo
t
in
g
IV Troubleshooting
1. Jam Display
NOTE
Make sure that the feed tray is called differently between magicolor 5430 DL/5440 DL
and magicolor 5450.

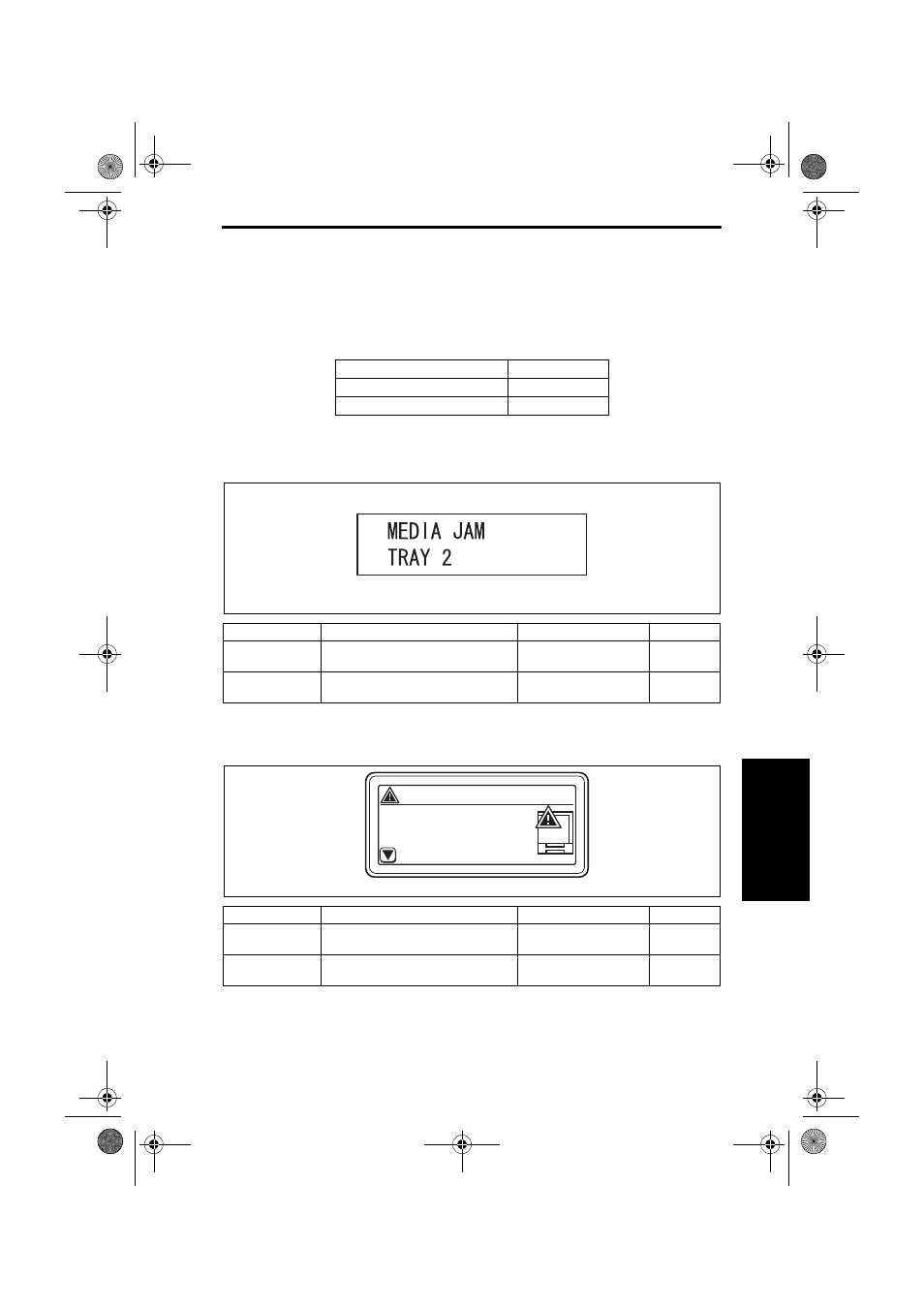

1.1 Misfeed display (magicolor 5430 DL/5440 DL)
• When a paper misfeed occurs, a message is displayed on the Control Panel.
1.2 Misfeed display (magicolor 5450)
• When a paper misfeed occurs, a message is displayed on the Control Panel.
1.3 Misfeed display resetting procedure
• Open the relevant door, clear the sheet of misfed paper, and close the door.
magicolor 5430 DL / 5440 DL magicolor 5450
TRAY 2 TRAY 3
TRAY 3 TRAY 4
Display Misfeed location Misfeed clearing location Ref. page
MEDIA JAM
TRAY 2 Tray 2 paper feed section,
Vertical conveyance section Tray 2,
Tray 2 Right Door
☞
4-4
MEDIA JAM
TRAY 3 Tray 3 paper feed section,
Vertical conveyance section Tray 3,
Tray 3 Right Door
☞
4-4
4537fs4503e0
Display Misfeed location Misfeed clearing location Ref. page
PAPER JAM
TRAY 3 Tray 3 paper feed section,
Vertical conveyance section Tray 3,
Tray 3 Right Door
☞
4-4
PAPER JAM
TRAY 4 Tray 4 paper feed section,
Vertical conveyance section Tray 4,
Tray 4 Right Door
☞
4-4
4537F4E001DA
PAPER JAM
for help
TRAY3
