Duplex Option Field Service Ver. 2.0 April 2005

2-4

II Main

tena

nce

2.3

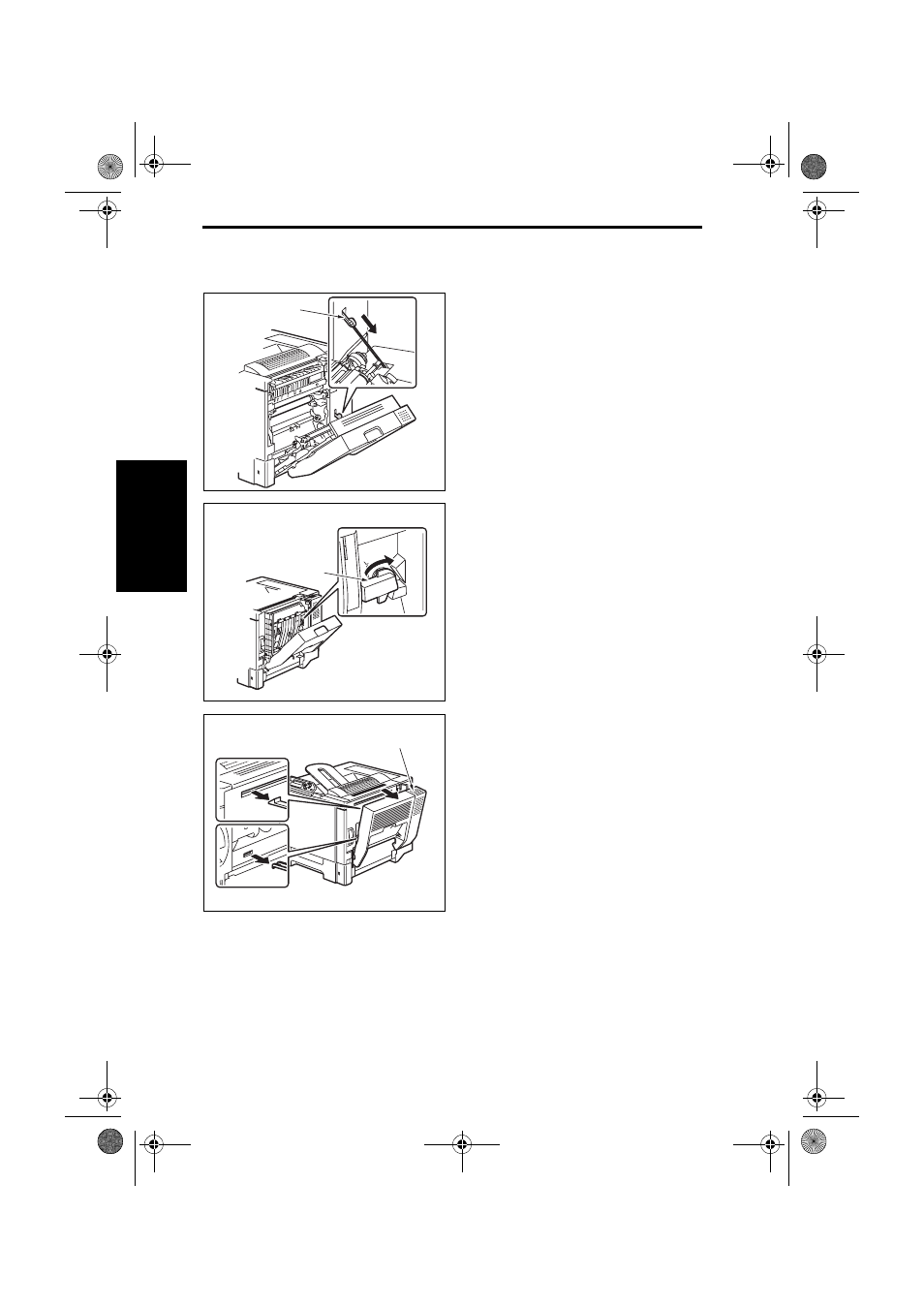

Disassembly/assembly procedure

2.3.1

Duplex Option

1.

Open the Right Door.

2.

Remove the Support Wire [1] from
the machine.

3.

Close the Right Door.

4.

Open the Duplex Option Door.

5.

Turn the two locking knobs [2] to
unlock the Duplex Option.

6.

Remove the Duplex Option [3].

4538fs2501c0

[1]

4538fs2502c0

[2]

4538fs2503c0

[3]
