Page 91: Installing the new fuser oil bottle –17
Chapter 5. Replacing Supplies
5–17
Installing the New Fuser Oil Bottle
Use the following procedure to install the new fuser oil bottle.
Attention:
Do not shake the fuser oil bottle. Oil can spill out.

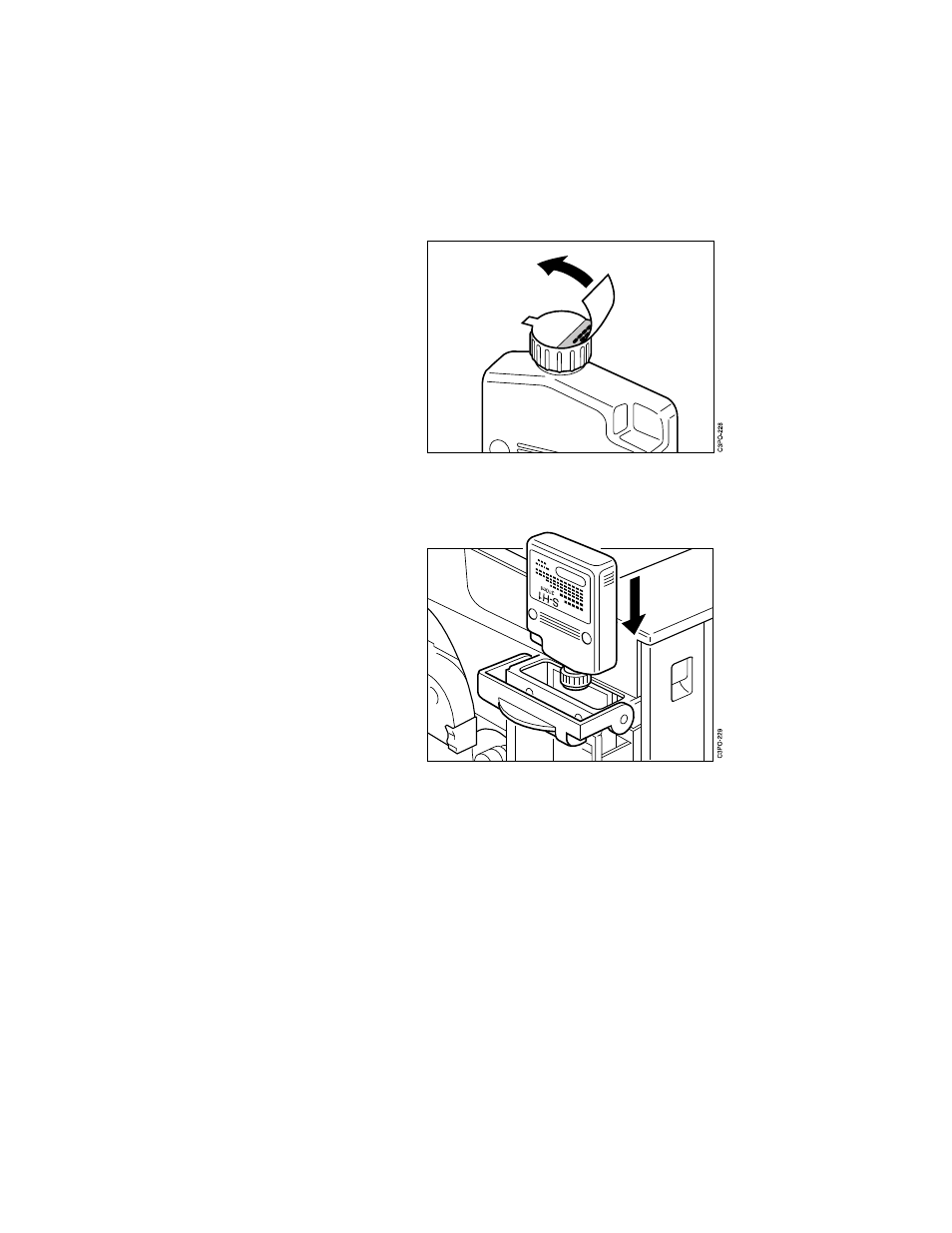

1. Peel off the seal from the new fuser oil bottle.
2. Turn the oil bottle upside down. Hold the oil bottle with its label facing out
and put the bottle in the oil bottle holder.
