5–34

IBM Network Color Printer Operator’s Guide

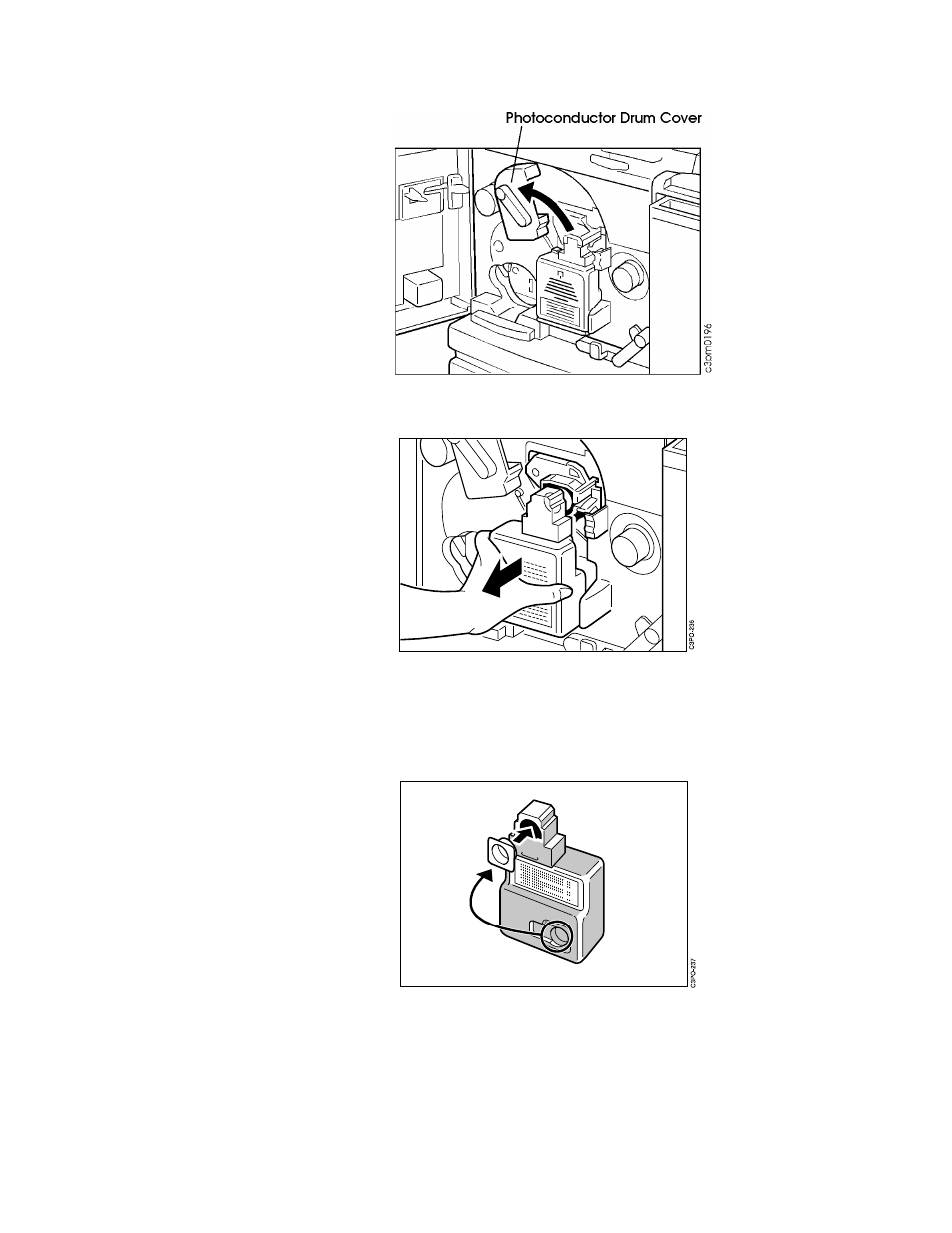

3. Open the photoconductor drum cover.

4. Remove the used toner bottle.

Attention:

Do not remove the used toner from the toner bottle or reuse it.

5. Seal the used toner bottle and put it aside.

6. Put the V-shaped end of the orange photoconductor drum shield in the V-

shaped support.
