6–24

IBM Network Color Printer Operator’s Guide

Printing Test Prints from the Density Control Panel

This section tells you how to print a test print using the density control panel.

You can print test prints in various grid and line patterns to use during
diagnostic procedures. Use the following procedure to print a test print from
the density control panel.

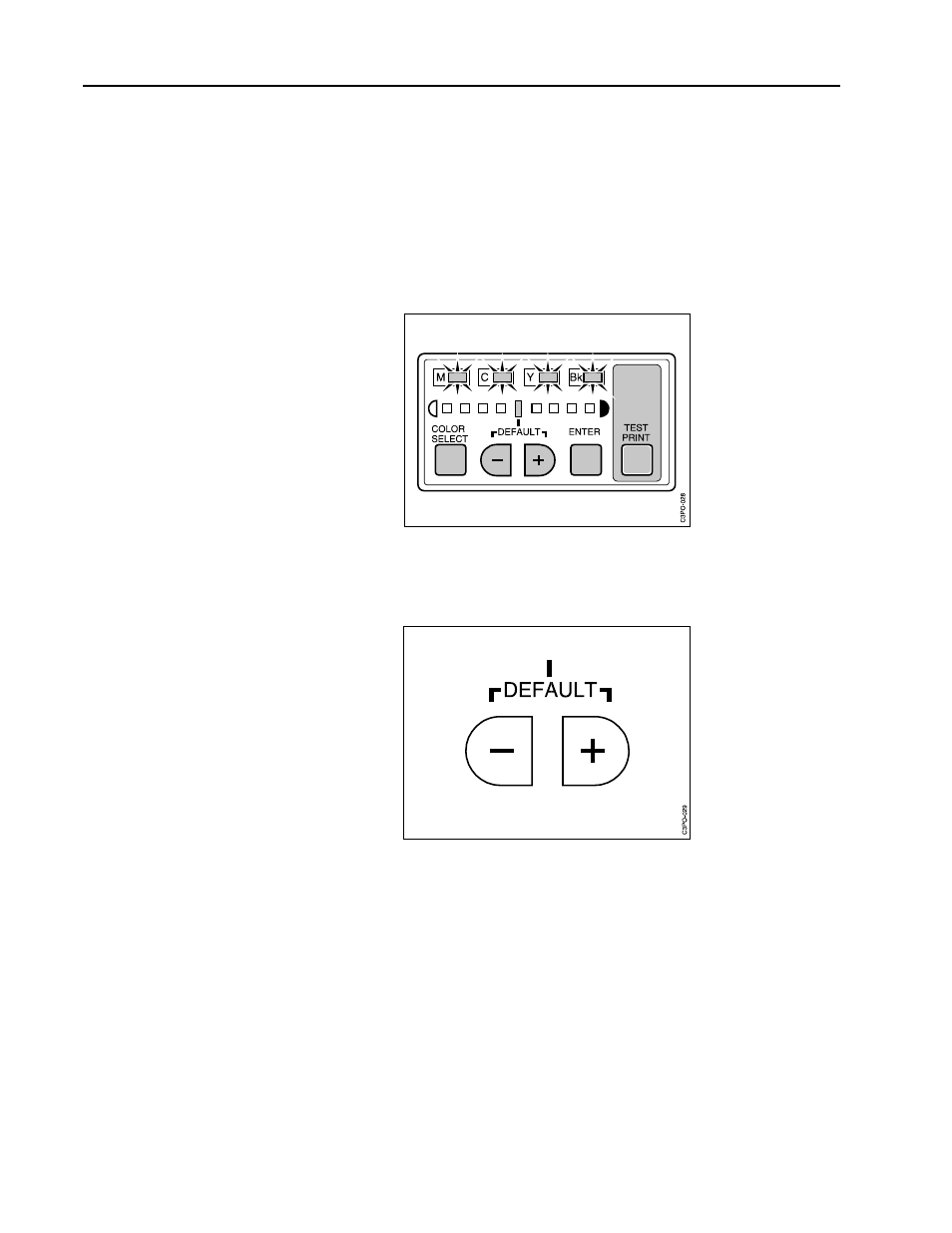

1. While you hold down the COLOR SELECT push button, press the ENTER

push button 8 times. All the color lights flash and the printer enters the test
pattern selection mode.

2. Use the (–) or (+) push button to choose a test pattern. The light for the test

pattern you selected flashes if the setting is different from the factory
default.
