Page 122: C. slowly pull the jammed paper out of the printer

6–8

IBM Network Color Printer Operator’s Guide

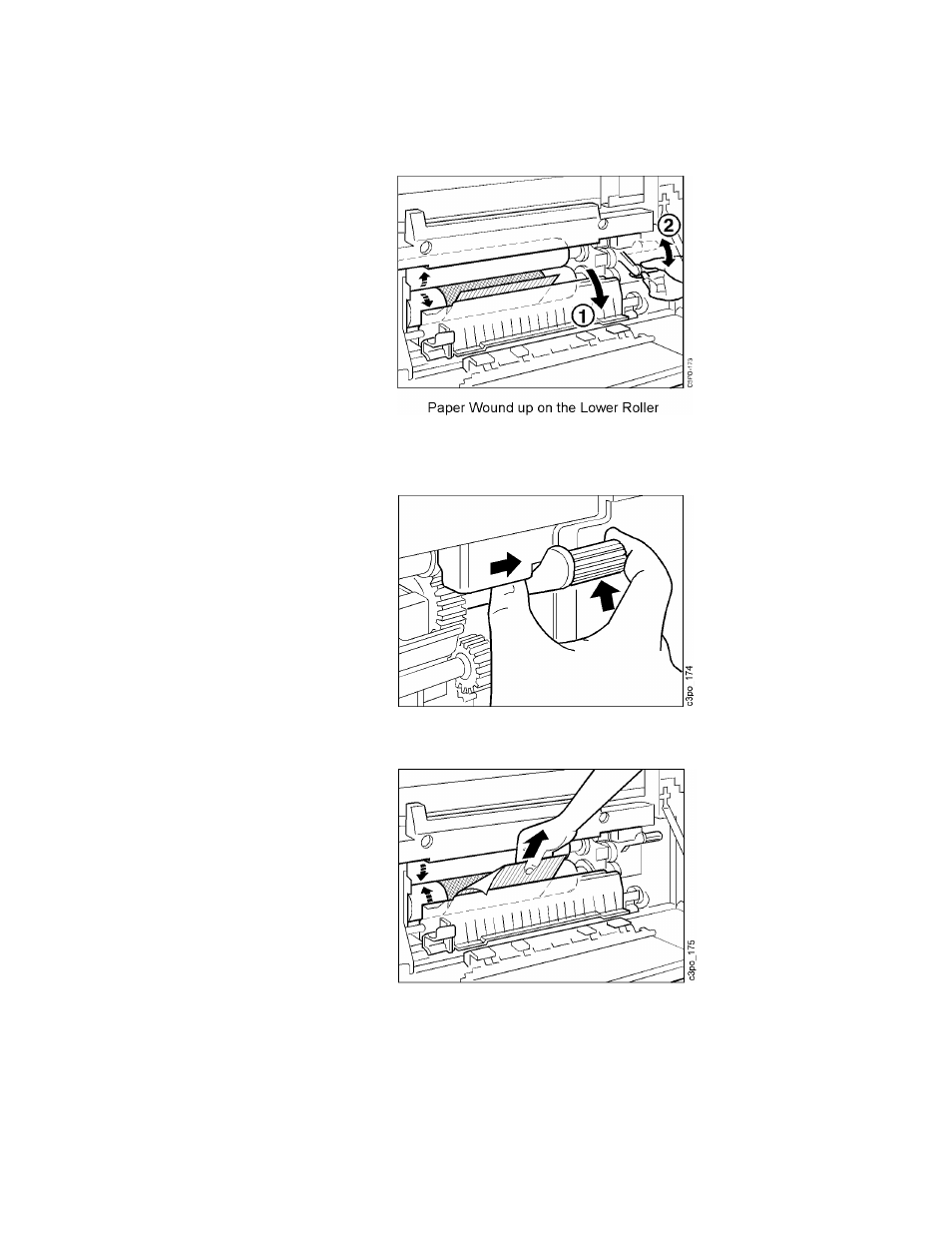

4. If the jammed paper is wound around the upper or lower fuser roller,

remove the paper this way.

a. Open the paper guide cover [1] and move the fuser jam-release lever

up and down [2] until the edge of the jammed paper is visible.

b. Unlock the fuser rollers by moving the release lever toward the back of

the printer and seating it in the slit on the metal plate.

c. Slowly pull the jammed paper out of the printer.
