6–20
IBM Network Color Printer Operator’s Guide
Adjusting the Side Registration on Tray 2 Printouts
This section tells you how to adjust the side registration on tray 2 printouts.
If you are using the optional tray 2 paper feeder and you notice that the
margins on your printouts are not the same as when you use the tray 1 paper
feeder, you may need to adjust the tray 2 side registration to match that of tray
1 (approximately 2 mm or 0.08 inches).

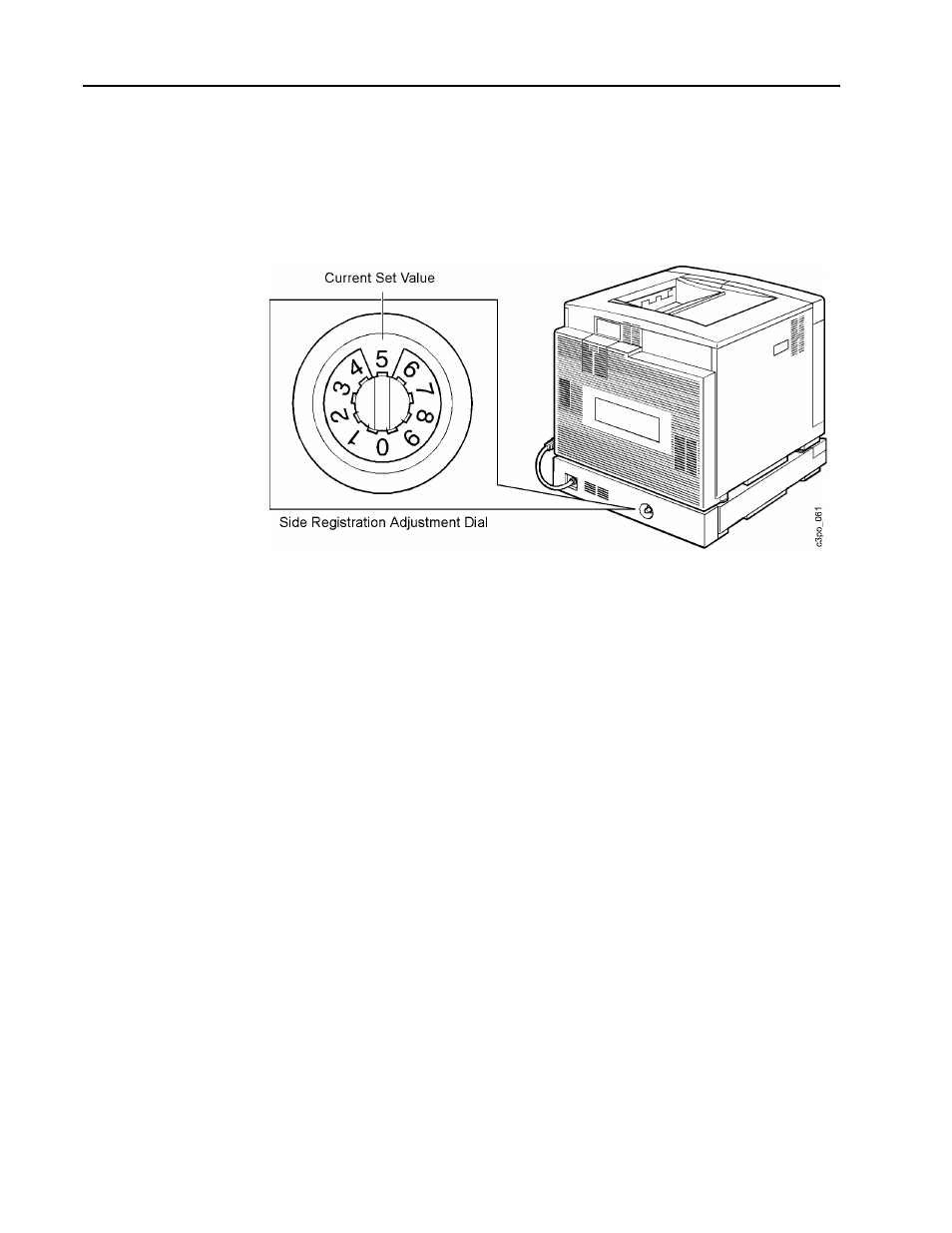

You can set the side registration adjustment dial from 0 to 9. The value on the
top part of the dial is the current value. The dial is set to 5 at the factory. When
you increase the dial value by 1, the left-side registration increases by
approximately 0.4 mm (0.16 inches). When you decrease the dial value by 1,
the left-side registration decreases by approximately 0.4 mm (0.16 inches).
Use the following procedure to adjust the left-side registration.
1. Load tray 2 with the same size of paper that is in tray 1 (see “Loading
2. Turn on the printer and wait until it is ready to print.
3. Change the paper source to tray 2 (see “Choosing the Paper Source” on
4. Locate the density control panel on the back of the printer.
5. Print a test print (see “Printing Test Prints from the Density Control Panel”
on page 6–24). Choose the Solid Colors test print pattern.
