5–8
IBM Network Color Printer Operator’s Guide
Installing a New Cartridge
Use the following procedure to install a new toner cartridge in the printer.

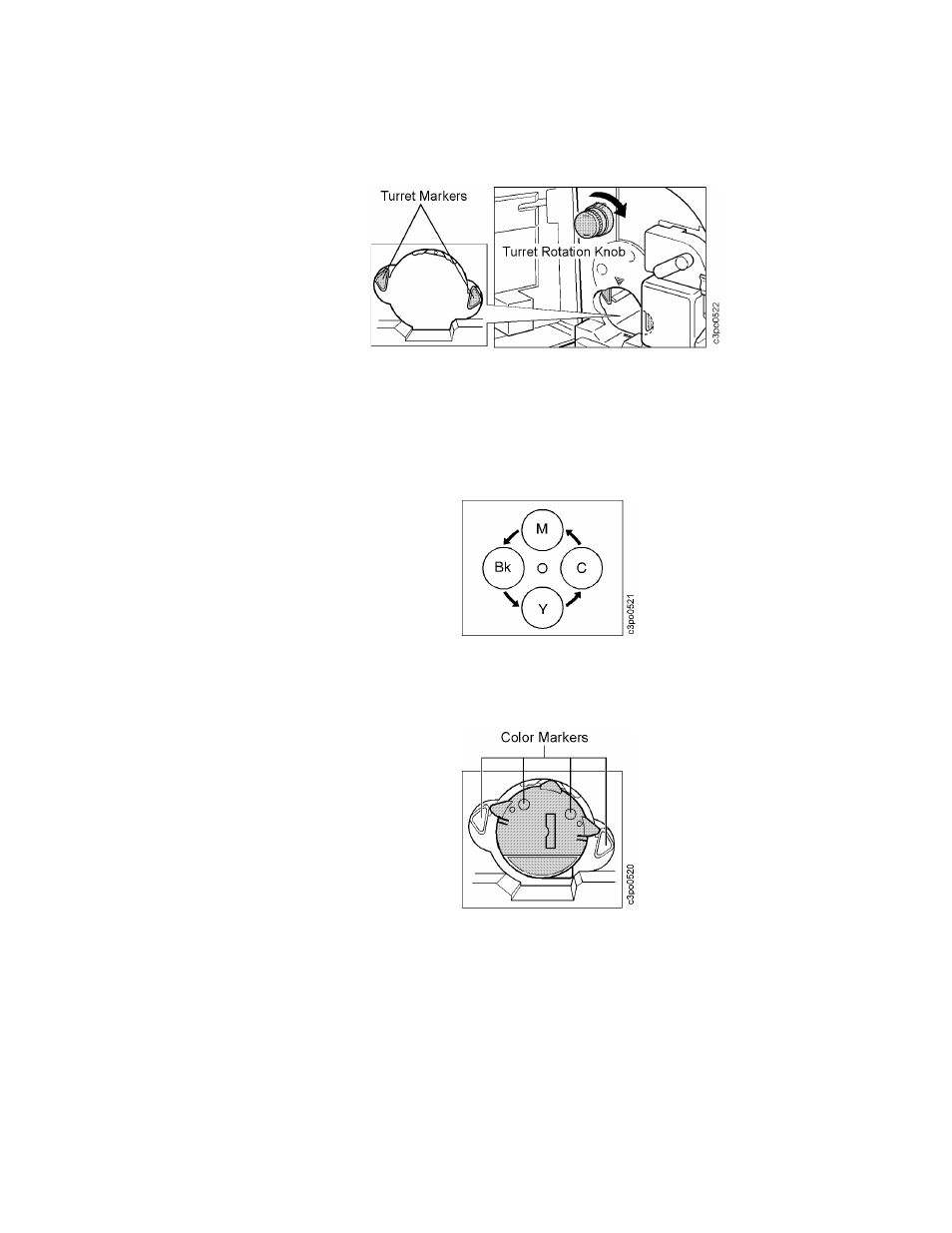

1. Find the turret rotation knob and the turret color markers in the illustration
below.
Because the printing process requires that the colors be applied in a
specific order, the placement of each color toner cartridge in the turret is
important. If you operate the printer with a toner cartridge inserted in the
wrong order, you will damage the printer. The figure below shows the
arrangement of the 4 color toner cartridges relative to each other in the
turret.
2. The figure below shows the correct alignment of a toner cartridge in the
turret. When you insert a toner cartridge, make sure that the 2 color
markers on the toner cartridge line up with the 2 markers on the turret.
