Chapter 5. Replacing Supplies

5–11

Attention:

Do not install a toner cartridge into the printer unless its developing cylinder cover is
latched closed.

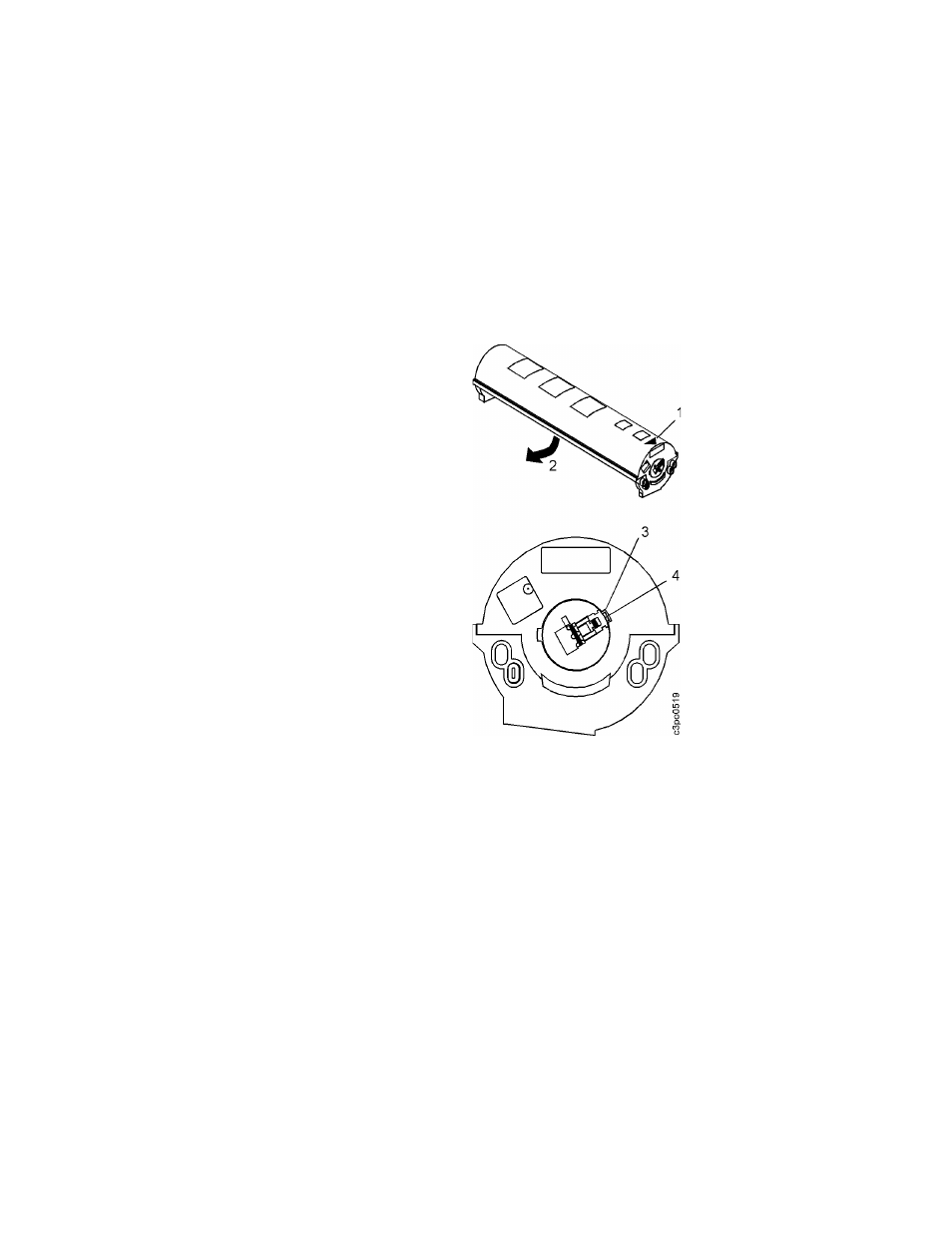

8. On the other end of the cartridge there is a small tab and an arrow [1].

Make sure that the tab [3] is fully seated in the notch [4]. Do one of the
following:

– If the tab is fully seated, go to step 9.

– If the tab is not fully seated, hold the cartridge and use a pulling motion

with your other hand to rotate the developing cover in the direction of the
arrow [2]. The tab [3] must be fully seated in the notch [4] before you install
the toner cartridge.
