Replace the cleaning connector cover, A. plug the cleaning connector [5] into the socket, B. insert the clip [3] into the slot [4 – IBM S544-5361-01 User Manual

Page 175: C. pivot the cover toward the back of the printer, D. align the tab [2] with the slot [1] and push it, Slide the paper feeder back into the printer, Close the feeder access door

Chapter 8. Maintaining the Printer

8–17

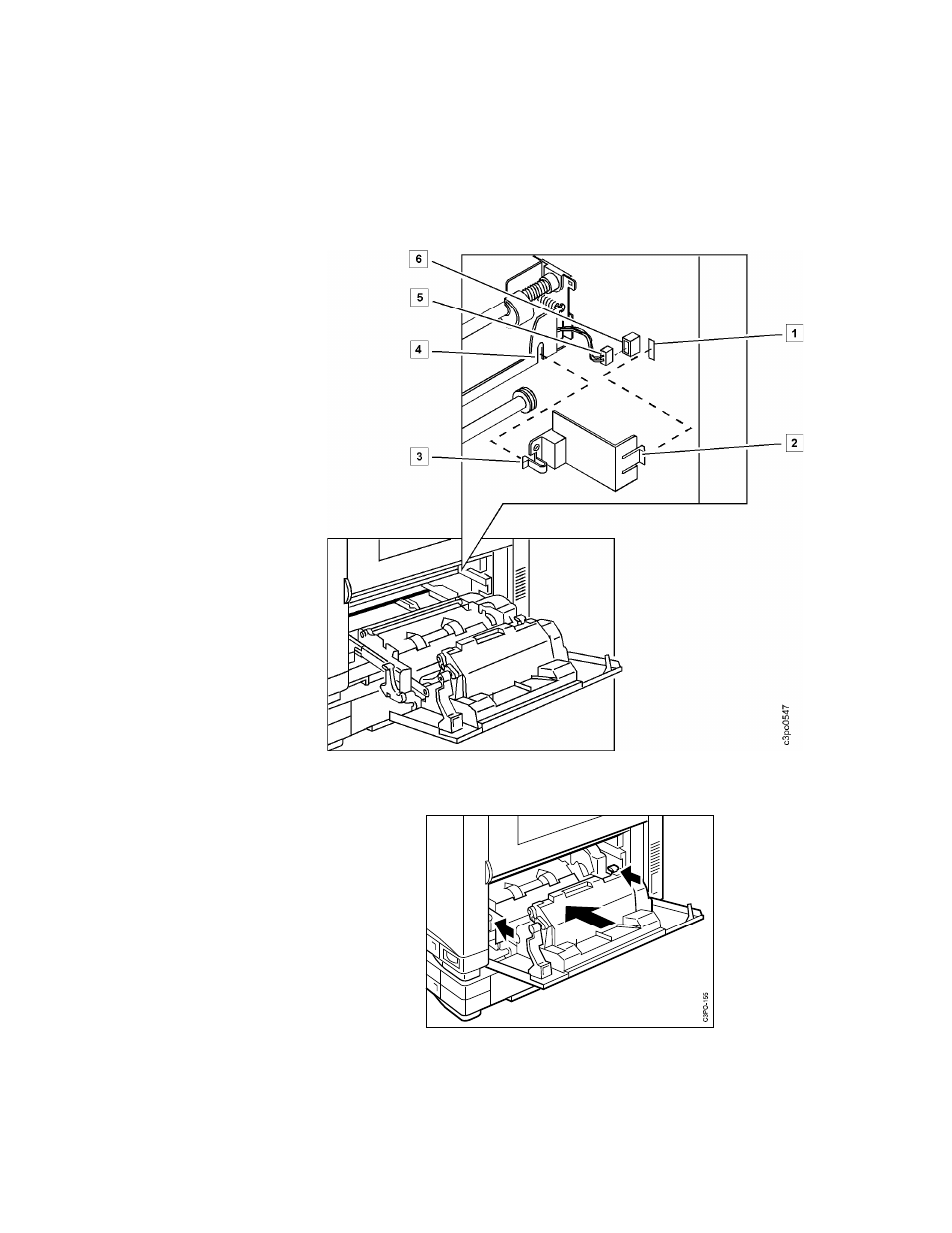

5. Replace the cleaning connector cover.

a. Plug the cleaning connector [5] into the socket [6].

b. Insert the clip [3] into the slot [4].

c. Pivot the cover toward the back of the printer.

d. Align the tab [2] with the slot [1] and push it in until it locks.

6. Slide the paper feeder back into the printer.

7. Close the feeder access door.
